$120

450W 110V DC QW80BL 80mm Square Motor SinglePhase 4500RPM High Speed Brushless Motor with HallSensor

Posted about 2 months ago in Houston, TX

Listed in categories:

Sold by

Juan Olivares

Juan Olivares

Joined Aug 2023

|

(6) offer up reviews

Chat securely on the app

450W 110V DC QW80BL 80mm Square Motor SinglePhase 4500RPM High Speed Brushless Motor with HallSensor

Additional images

Description

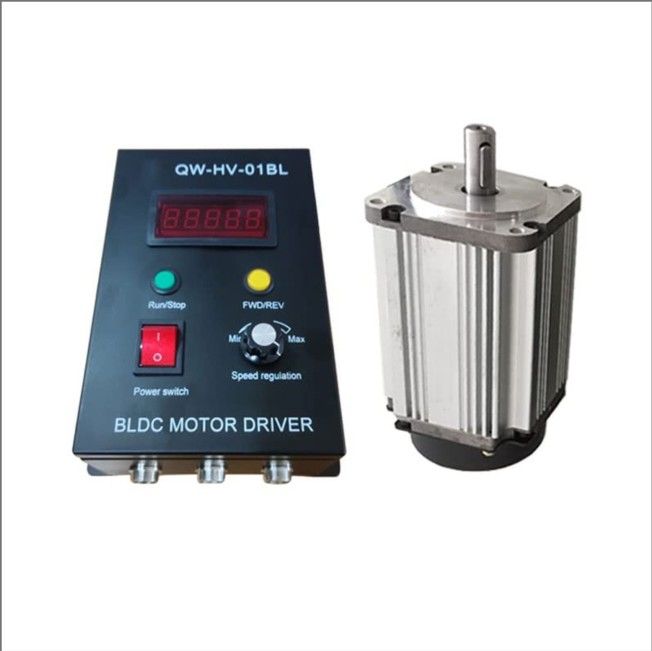

SELLING This kit features a450W QW80BL High-Speed Brushless DC (BLDC) motorpaired with a QW-HV-01BL driver. The system isdesigned for high-performance applications, offering speeds up to4500 RPMand utilizing aHall-effect sensorfor precise speed and position control. System Specifications Motor Model:QW80BL007 45-450. Rated Power:450W. Voltage:110-130V DC input. Rated Speed:4500 RPM (models also available up to 12,000 RPM). Holding Torque:0.96 N.m. Features:Five-digit LED speed display, stepless speed regulation, and built-in protections for overcurrent, thermal issues, and Hall sensor errors. AI Mode All Visual matches 8 sites This kit features a 450W QW80BL High-Speed Brushless DC (BLDC) motorpaired with aQW-HV-01BL driver. The system isdesigned for high-performance applications, offering speeds up to4500 RPMand utilizing aHall-effect sensorfor precise speed and position control. System Specifications Motor Model:QW80BL007 45-450. Rated Power:450W. Voltage:110-130V DC input. Rated Speed:4500 RPM (models also available up to 12,000 RPM). Holding Torque:0.96 N.m. Features:Five-digit LED speed display, stepless speed regulation, and built-in protections for overcurrent, thermal issues, and Hall sensor errors. Wiring Guide The QW-HV-01BL driver typically has three main connector ports at the bottom for standard BLDC setup: Connector LabelPurposeTypical Wiring DetailsMotor Cable3-Phase PowerConnects the thickU, V, Wphase wires from the motor. Hall CableSensor FeedbackConnects the 5 thin wires:+5V(Red),GND(Black), andHU/HV/HWsignal wires (Blue/Green/Yellow). Power CableMain DC InputConnects to your110V DCpower source. Control Panel Functions Digital Display:Shows the current operating speed. Run/Stop Button:Toggles motor operation. FWD/REV Button:Switches the motor's rotational direction. Speed Regulation Knob:A built-in potentiometer for manual speed adjustment.

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

New

Type

80mm Square Motor SinglePhase 4500RPM
