Taramps 10K HD

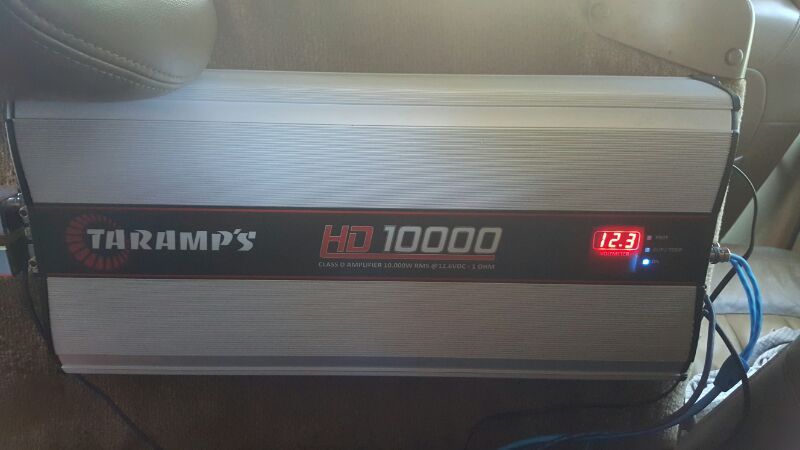

Taramp's HD 10,000 Amplifier The Taramps HD 10,000 is a new and improved addition to the HD series, replacing the previous 10k offering. Improvements include but are not limited to the addition ofline out, a deeper power supply down to 9v, more efficient heatsink up to 10 degrees Celsius cooler, and components which are more durable against damage from vibration. These models also have a better low impedance and thermal protection circuit. An on-board voltmeter was also added. The amplifier's new method of component adhesion was tested for 48hrs straight and then checked for vibration damage and passed. This is a true 10,000 watt amp. The new HD series amps are some of the best amps from Brazil! Specifications: Number of Channels: 01 Maximum Power @ 13.8 VDC - 1 OHM: 11995W RMS Maximum Power @ 13.8 VDC - 2 OHMS: 8037W RMS Maximum Power @ 13.8 VDC - 4 OHMS: 4661W RMS Maximum Power @ 12.6 VDC - 1 OHM: 10000W RMS Maximum Power @ 12.6 VDC - 2 OHMS: 6700W RMS Maximum Power @ 12.6 VDC - 4 OHMS: 3886W RMS Input Sensitivity: 250mV @ (-9.78 dBm) Total Harmonic Distortion (THD): 0.3% 95dB" style="box-sizing: border-box; margin: 0px; padding: 0px; border: 0px; font-family: inherit; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inherit; line-height: inherit; font-size: 13px; vertical-align: baseline;">S / N ratio:> 95dB Damping Factor: 450 Frequency Response: 5Hz to 15kHz Crossover: HPF (High Pass Filter): 5 Hz to 50 Hz (-12dB / 8th) Variable LPF (Low Pass Filter): 50Hz to 15kHz (-12dB / 8th) Variable Protection System: Short in output / High Supply Voltage / Low / Thermal Protection Input Impedance: 18K OHMS Minimum Power supply: 9VDC Maximum Supply Voltage: 16VDC Idle Consumption: 3.60 Amp. Maximal Musical @ 12.6VDC: 539.5 Amp. Maximum consumption in sinusoidal signal (1kHz) @ 12.6VDC: 1079 Amp. Dimensions (WxHxD): 230 x 73 x 497mm Weight: 6.7kg
