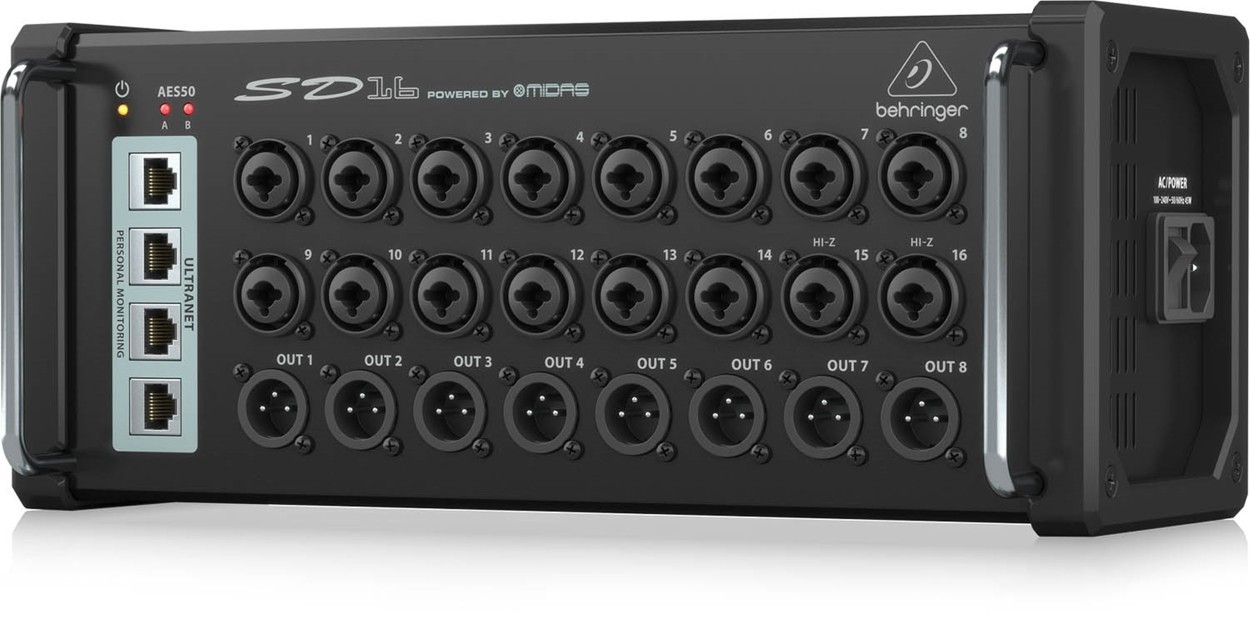

Behringer SD16, 8 Outputs Stage Box with 16 Remote-Controllable Midas Preamps

Type

Digital stage Box

Brand

Behringer

The SD16 provides 16 MIDAS-designed remote controllable mic preamps, 8 balanced analog XLR returns at the stage end, plus an integrated 4-port ULTRANET distribution hub for direct connection to our P16 M personal monitor mixers without any additional hardware required. Plus, the SD16 is extremely compact and comes with rugged protective bumpers, so you can toss them directly on stage wherever you need them. The best part – all it takes is a single shielded CAT5e cable per stage box (up to 330 ft / 100 m length). And If you need more inputs, or just want to keep your cable runs short and tidy, putting an SD16 at stage front and another behind the drum riser gives you an additional 16 inputs for drum and guitar/bass amp micing. When used as part of a complete X32 system, as many as three SD16 Stage Boxes can be cascaded via the built-in AES50 ports to provide up to 48 bidirectional inputs and 24 balanced XLR outputs. An onboard ULTRANET distribution hub provides power and 16 channels of audio to 4 BEHRINGER POWERPLAY P16-M personal monitor mixers per SD16, all via inexpensive shielded CAT5e cabling – and without any additional hardware. Two of the programmable inputs are also compatible with Hi-Z sources, so you can connect keyboards, acoustic and bass guitars, etc., with no DI box required. The SD16 also features a USB port for fast and easy system updates via your PC. Remotely Controllable Preamps Make Setup a Breeze: The SD16 Stage Box is a studio/live sound engineer’s dream come true. Setup is extremely easy, with virtually all parameter control taking place at the console – including the award-winning MIDAS-designed mic preamps, +48 V phantom power, destination routing, etc. Just put the SD16 where you want it, run a few Cat 5e, mic and instrument cables – and head for the console. The SD16 makes setting the stage up virtually foolproof. 8 Servo-Balanced XLR Outputs: The SD16 features 8 XLR balanced outputs, allowing you to connect to your amp racks, active loudspeakers and monitors. Thanks to its reference-class Cirrus Logic 24-bit converters, SD16’s digital operation eliminates even the slightest possibility of Radio Frequency Interference (RFI) and crosstalk. You get ultra-pristine audio performance, no matter the application – something unheard of in this class. Features: 16 Midas-designed, fully programmable mic preamps for audiophile sound quality. 8 analog, servo-balanced XLR outputs. AES50 network ports featuring Klark Teknik’s SuperMAC networking capability for ultra-low jitter and latency. 4-port ULTRANET distribution hub for powered connection of 4 Behringer P16-M personal monitoring mixers. Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability. Rack ears and protection bumpers included for installed and mobile applications. 1. Authorized Dealer - Full warranty 2. Best Price Guarantee - We will beat any price 3. UP to 6 months Zero Interest Financing available 4. This product is available and ready to ship
