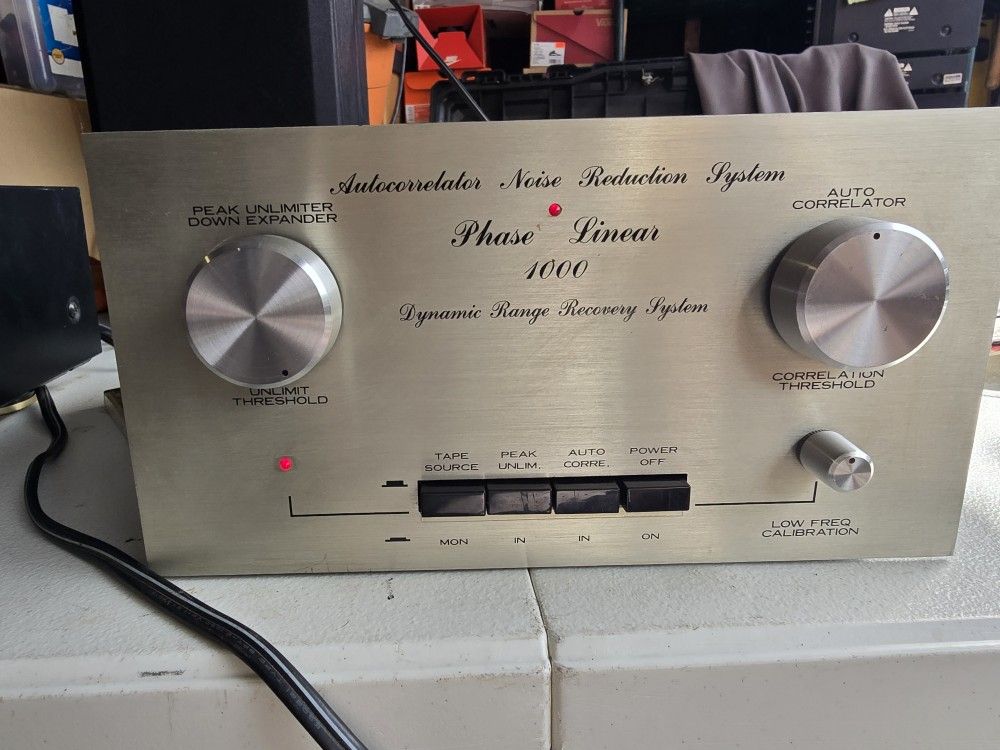

Phase Linear 1000Autocorrelator Noise Reduction System (1976) w/ owners manual

Phase Linear 1000 Autocorrelator Noise Reduction System (1976) Description The Phase Linear 1000 is a dynamic range recovery system. Recording studios and record processing companies employ a number of necessarily evil techniques brought about by the state of the recording art. Taken together, these techniques may be described as processes which serve to limit and restrict the dynamic range of recorded material. Unfortunately, their use is necessary in order to put the tremendous range of live music onto the surface of modern phonograph discs and tapes. When used properly, the Phase Linear 1000 will significantly correct these shortcomings inherent in the recording process. Specifications Series One Series Two Channels: 2 Input sensitivity: 3V (max) Output level: 8V (max) S/N improvement: 10dB Frequency response: 20Hz to 20kHz Total harmonic distortion: 0.25% Semiconductors: 28 x transistors, 8 x IC, 91 x diodes Dimensions: 9-1/2 x 5 x 11-4/5 inches Weight: 6lbs

Condition

Used (normal wear)

Model

1000

Brand

Phase Linear

Playable Media

Cassette tape
