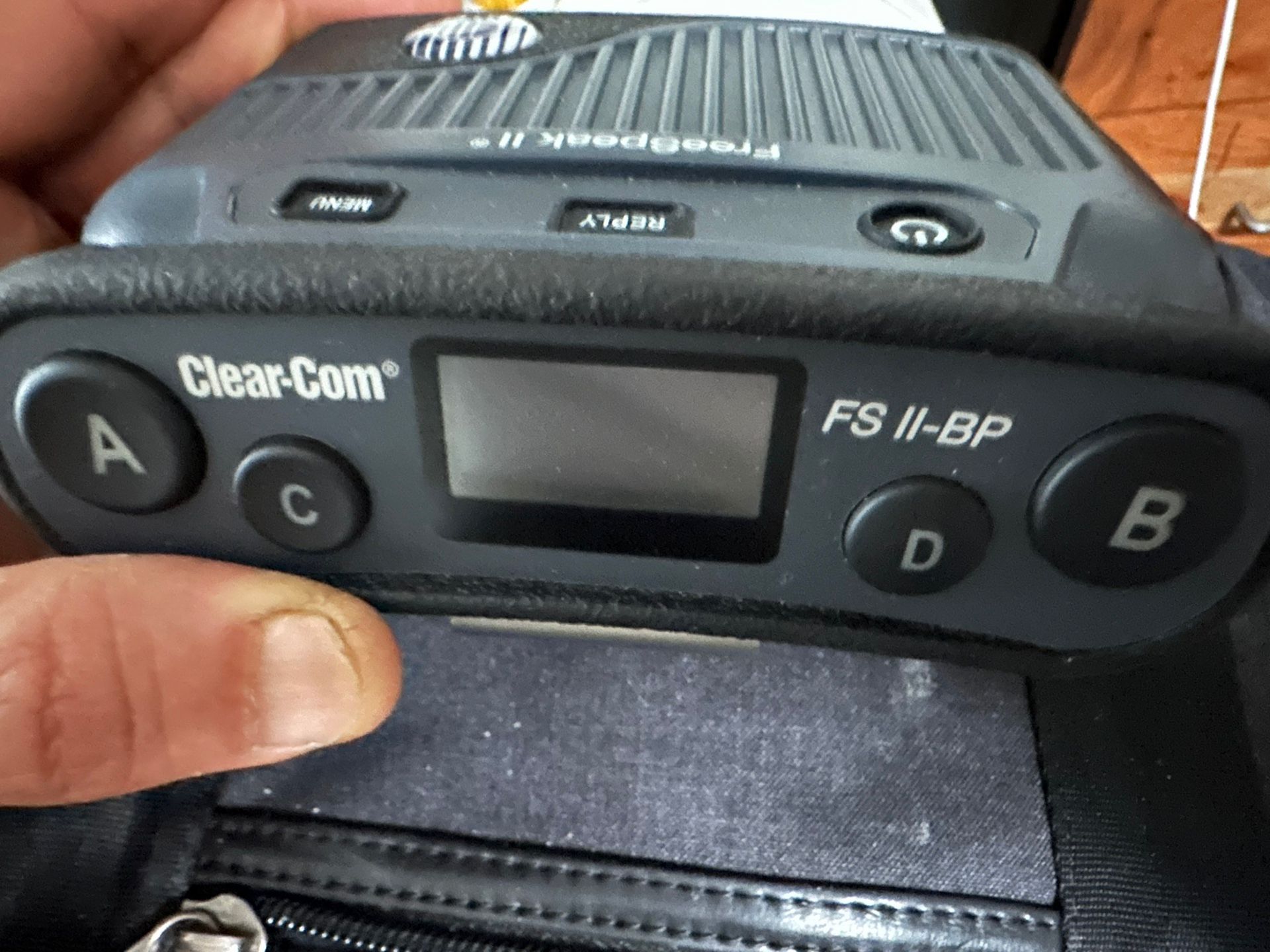

Clear-Com FSII-BP19-X4-US FreeSpeak II 1.9GHz Digital Wireless Intercom Belt Pack

FSII-BP19 FreeSpeak II 1.9 GHz Wireless Beltpack Functions with FSII-Base, and FSII-Base-II, FreeSpeak Edge Base Station, Arcadia Central Station, E-IPA-HX Cards, and FSII Splitter Typical indoor range: 300 ft (90 m), outdoor range: 800 ft (240 m) 1.9 and 2.4 GHz beltpacks operate interchangeably on a single system 5 to 200 beltpacks supported on a single system (See Product Line Cross Functionality Chart) Encoder Volume Swap between A&C and B&D “Listen Again” message replay Simple 2-channel partyline operation to 5-channel intercom on the same beltpack Over-the-air beltpack registration 18+ hour battery life or USB port for continuous operation XLR-4M headset connector IP53 rating for wet and dusty conditions Built-in flashlight Technical Specifications Audio Audio Bandwidth: 200Hz-7.5KHz No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume Mode of Operation: Full duplex on all routes Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls Enter/Answer-Back Button: 1 Frequency Spectrum USA, Canada, Mexico: 1(contact info removed) MHz Transceiver Range Output Power: 100mW EU, Russia, Ukraine, Singapore, Hong Kong, Australia, New Zealand, South Africa: 1(contact info removed) MHz Transceiver Range Output Power: 250mW Japan: 1(contact info removed) MHz Transceiver Range Output Power: 250mW Argentina: 1910 MHz-1930 MHz Transceiver Range Output Power: 250mW Brazil: 1910 MHz-1930 MHz Transceiver Range Output Power: 250mW Chile: 1910 MHz-1930 MHz Transceiver Range Output Power: 70mW Taiwan: 1(contact info removed) MHz Transceiver Range Output Power: 250mW Connectors Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT Headset Voltage: Maximum of ~+8dBu as set by firmware Microphone Type: Electret and Dynamic, selectable in beltpack menu Microphone Voltage: Electret Mic:-45dBu (additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1 via a 1k resistor). Dynamic Mic: -55dBu Headset Limiter: Selectable from beltpack menu Power Modulation: GFSK, TDMA frame 10ms Full and Long slot Output Power: (EU/Russia) 10dBm average, (US) 18-20dBm Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m) Battery: Li-Ion or 3 AA alkaline cells Battery Charging: Drop-in charger (AC60) or local USB Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells Environmental IP53 water and dust resistance Operating: 32º-125ºF (0º-50ºC) Storage: 32º-150ºF (0º-70ºC) Humidity: Between 20% and 90%, Non-Condensing Dimensions Tapered design at largest points 3.75 x 5 x 1.5in (HxWxD) (97 x 130 x 45mm) Weight 9.0oz (0.4kg) including batteries
