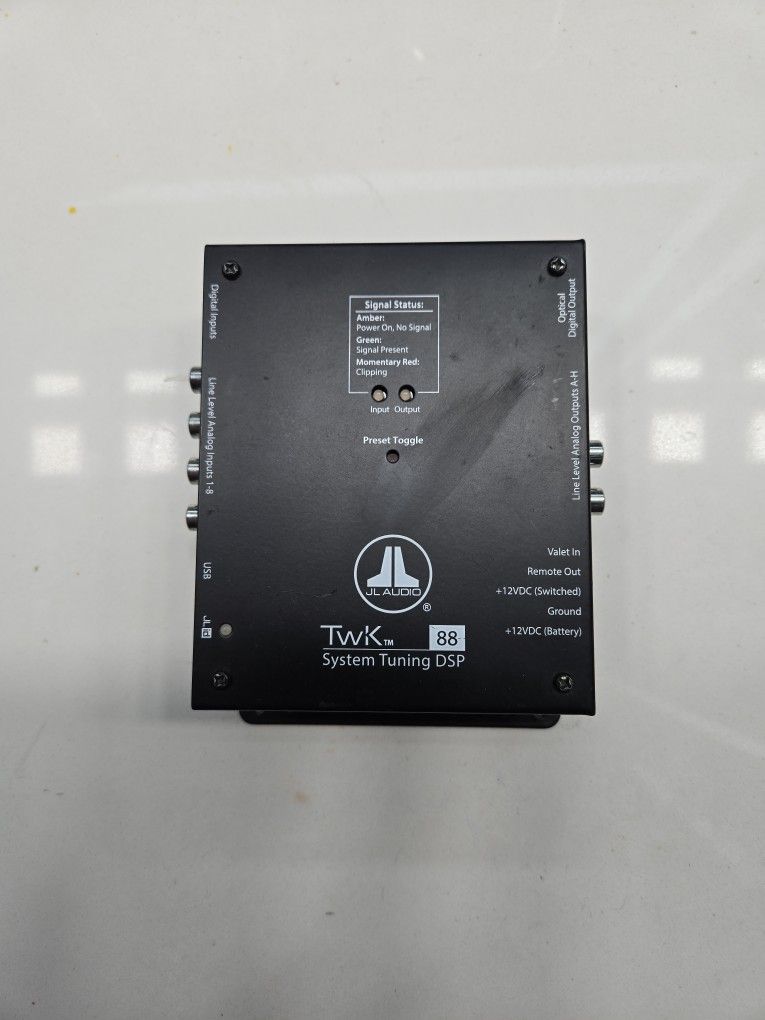

JL AUDIO TWK-88 SYSTEM TUNING 8 CHANNEL DIGITAL SIGNAL PROCESSOR - BASE UNIT ONLY - NO CABLES

Model

TWK88

Brand

JL AUDIO

JL Audio TwK 88 System Tuning 8 Ch. Digital Signal Processor - 98101 The TwK™ 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities, in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK™ 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller lets you add dual configurable level controls, preset toggle, plus LED status reporting, all from the driver's seat. Feature: Flexible input design: 8 Differential-balanced, line-level input jacks (RCA) accept most line-level signals up to 7.1V (RMS) Separate optical (Toslink) and coaxial digital inputs connect to any digital (S/PDIF) output. Flexible setup features: Individual level trim, linkable for tuning Individual polarity controls, linkable for tuning Powerful input mixing tools 8 Powerful 10-band equalizers with flexible assignment capabilities: 10-band graphic full octave EQ 10-band parametric EQ Configurable EQ assignment delivers simple to complex tuning options: Individual EQs may be assigned to each output Multiple outputs may be combined and assigned to a single EQ 8 analog, line-level RCA output jacks (4V RMS), each with a full-featured tuning set: Fully variable, high-pass and low-pass filters with selectable slopes from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments) Configurable delay settings, with separate entries for speaker distance plus offset control; expressed in time or distance units and fully linkable with other channels Polarity control, fully linkable with other channels Comprehensive level controls, fully linkable with other channels Optical (Toslink) jack provides a pass-through digital audio (S/PDIF) output from assignable input channels, with no signal processing applied. Provides a dedicated remote turn-on voltage output for activating aftermarket audio equipment. JLid™ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, plus LED status reporting from the driver's seat. Specifications: Power Supply Type: Regulated DC-DC SMPS Input Operating Voltage: 10 - 16 VDC Standby Current Draw: <1.5 mA Operating Current Draw: 0.7 A Recommended Fuse value: 1A Input Channels: 8 Input Type: Line-Level, Differential-Balance Input Voltage Range: 250 mV - 7.1 V RMS Minimum Input Voltage: 10 mV RMS Input Level Setting: Eleven discrete selections from 250 mV - 7.1V RMS Output Channels: 8 Analog Output: Unbalanced, stereo RCA jacks Digital Output: Optical (Toslink) output (S/PDIF) Output Impedance: 450 Ohms S/N Ratio: 96 dB (A-Weighted, referred to 4V RMS Output) THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz) Signal Processing Audio Resolution: 24 bit / 48 kHz Number EQ Bands: 10 x 8 Channels Remote Level Control: Included (DRC-200) Remote Level Functions:Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting Approximate Dimensions: Width: 4.29" Height: 1.85" Depth: 6.14" Approximate Weight: Unit: 2.58 lbs Shipping: 5.5 lbs
