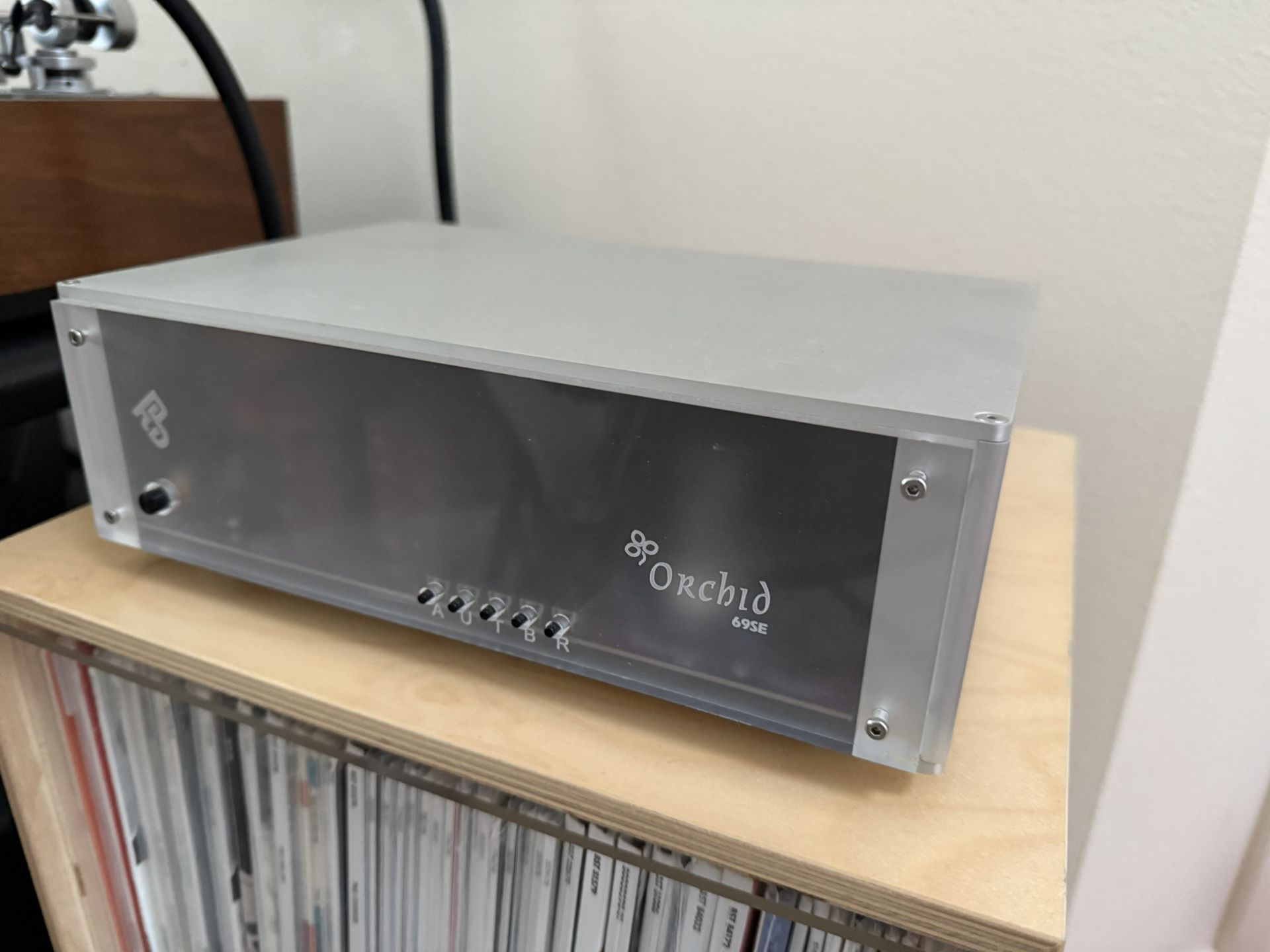

MHDT Orchid 69SE DAC 24bits/192kHz (TDA541A R-2R Chip)

Orchid 69SE DAC is a non over-sampling, no digital filter, structured DAC. Comes with original box and packaging This tends to produce most realistic and natural sound. Orchid 69SE DAC is capable of up to 24bits/192kHz digital signal inputs yet remains driving legendary TDA541A R-2R digital to analog output. Orchid 69SE configured to be 16 bits output. The USB input section is in asynchronous operation. Total five independent digital inputs; AES/EBU, BNC, USB, RCA and Toslink. The 5 digital inputs are independent to each other, only one among them will be active and is controlled by the tact switches located in front panel. Tube buffered output, tube installed is Sovtek 6922 tube. Tubes can be used: 6DJ8, 6922 tube families 100V, 115V, 215V, 230V power supply selectable from internal PCB pins setting Available in silver cabinet only. No powercord is included when ship out Specifications: Digital Receiver CS8416 D/A converter TDA541A - S1 I/V stage: discrete ideal transistors (OPA861 used as transistor) , no feedback Frequency response: 20 Hz to 20 kHz (± 2dB) Output impedance: 32 ohms Output level: 2.6 Vrms All inputs support 16/24 bits/ 32 kHz up to 192 kHz Dimensions clear (W x D X H) 280 x 180 x 96 mm Dimensions w/ socket (W x D X H) 280 x 200 x 96 mm Weight 4.2 kg All our DACs installed C-Media CM6631A chip as USB receiver. For Windows users: (Mac and Linux not influenced) Microsoft hasn't recognized usb 2.0' audio as standard Windows topology until very late version of W10. So, Before mid-2020, our DACs' USB section configured as PID=0319 (use customized driver, 1.03 is recommended) In mid-2020, we start to configure our DACs to be PID=0004 (use W10 in box standard driver) 　 In PID=0004 condition, to use W10 in box standard driver you need to plug in our DAC and let W10 to "search driver from the Web" and then the W10 in box standard driver (digital signed by Microsoft) will be installed by Microsoft. If not automatic execute, you have to go control panel to install this in box driver. Why we start to configure our DAC to be PID=0004 is because that this in box driver can be automatically updated if necessary in every W10' update. PID=0319 and PID=0004 can be changeable by the firmware tool FWUdate.exe (2.0.1.11): to erase the current firmware and exit. unplug DAC and re-plug in and execute FWUpdate.exe and choose one of the digital unsigned hex to install. What PID now can be checked by FWUpdate.exe too

Condition

Used (normal wear)

Model

Orchid 69SE

Brand

MHDT

Playable Media

DAC
