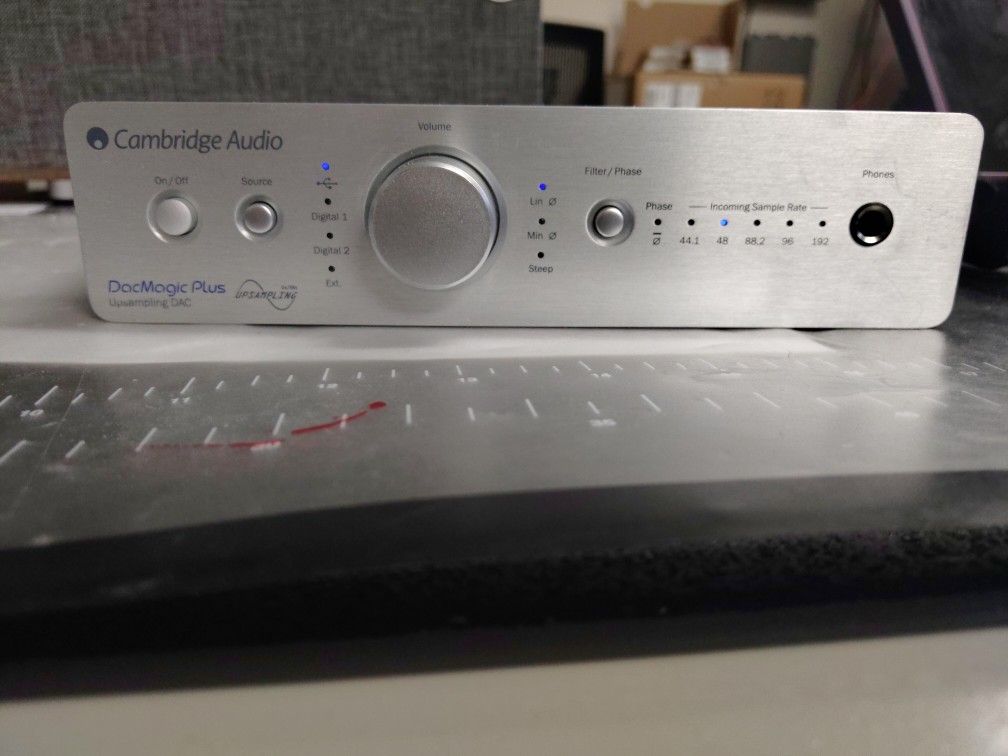

Cambridge Audio DacMagic Plus

$220

Last updated about 3 years ago in Gibsonton, FL

Condition: Used (normal wear)

Listed in categories: Electronics & Media - Audio & Speakers

Chat securely on the app

Sold by

SOLD

Additional images

Details

Model: DacMagic Plus
Type: DAC
Brand: Cambridge Audio

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Description

Cambridge Audio DacMagicPlus Digital to Analogue Converter & Preamplifier With Upsampling Raed 4.7/5 stars by reviewers Specs: DAC: Dual Wolfson WM8740 24bit DACs Digital filter: Analog Devices ADSP21261 DSP, upsampling to 24-bit/384kHz Analog filter: 2-Pole Dual Differential Bessel Double Virtual Earth Balanced Frequency Response: 20Hz to 20kHz (±0.1dB) THD: 1Khz 0dBFs: <0.001% 24-bit 1kHz -10dBFs: <0.001% 20kHz 0dBFs: <0.002% Signal to Noise Ratio: -112dBr Total correlated jitter: <130pS Crosstalk: 1kHz: < -130dB 20kHz: < -112dB Output Impedance: <50ohms Max. output level: Unbalanced: 2.1V rms Balanced: 4.2V rms (2.1V per phase) Word widths supported: 16-24bit Sampling frequencies supported: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Audio output up-sampling: Fixed 24-bit/384kHz Headphone output: THD: 1kHz 0dBFS 24 bit signal with 22kHz low pass filter: 0.001% 20khz 0dBFS 24 bit signal with 80kHz low pass filter: 0.003% S/N: -111dBrA Frequency Response: 10Hz - 100kHz Max power consumption: 12W Dimensions (HWD): 2.0" x 8.6" x 7.6" Weight: 2.6 lbs.
