Air Handler Blower Motor

Type

Motor

Brand

Genteq/Evergreen Scientific

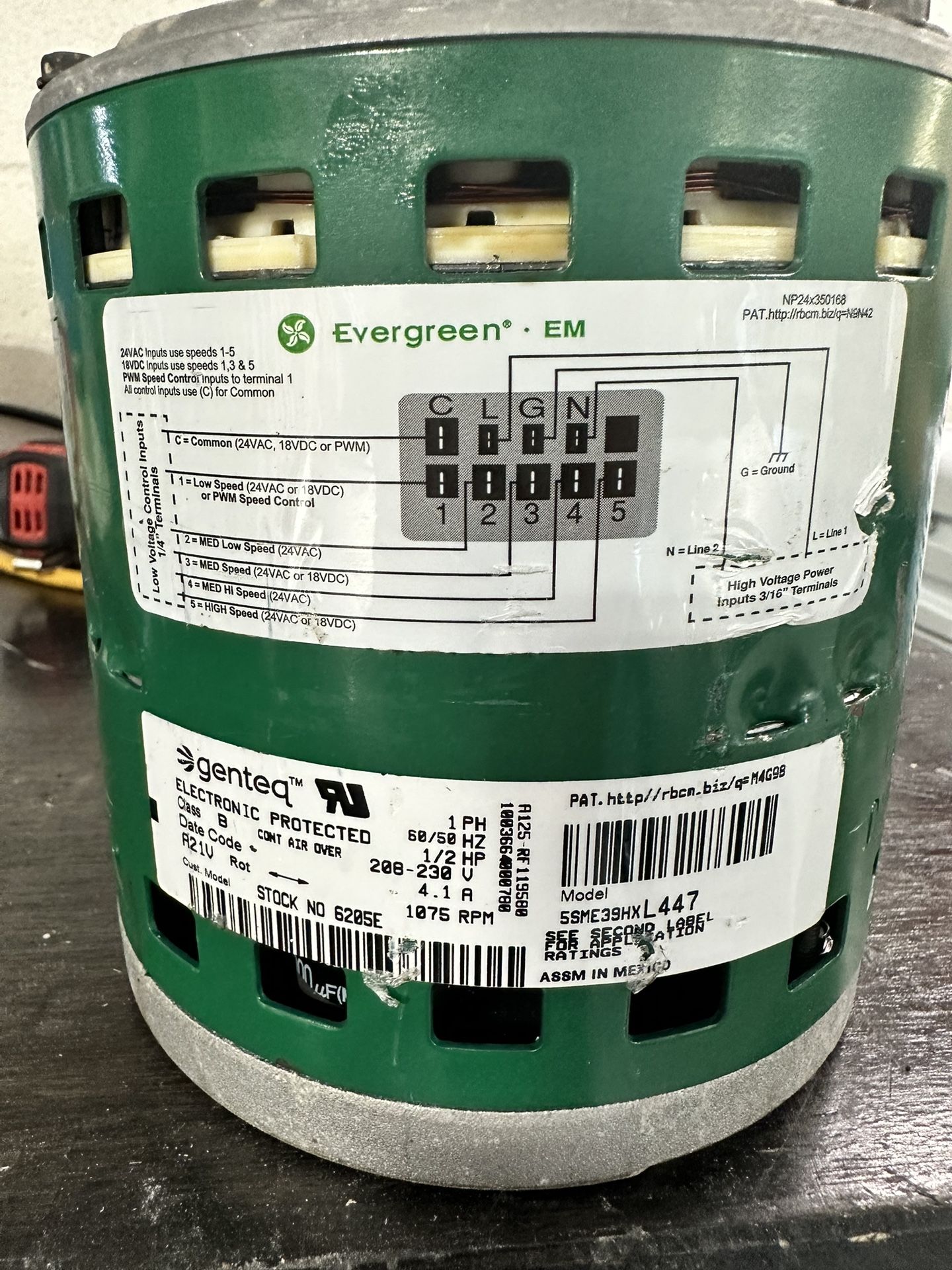

Brand Evergreen Scientific Speed 1075 RPM Voltage 230 Volts Horsepower 0.5 hp Item Dimensions LxWxH 1 x 1 x 0.5 inches Material Aluminum Multi-speed, constant torque, brushless DC motor NEMA 48-frame (5. 6 inch diameter) belly band mount with 5-inch long 1/2 inch diameter shaft Four discrete speeds using 24VAC, plus automatic continuous fan speed UL and CSA recognized component CCW/CW Rotation Sensing Technology Designed to replace direct-drive blower motors in residential and light commercial indoor furnaces, air handlers and package systems that were designed with a 6-pole 1075rpm rated PSC motor Replaces / Supersedes: American Standard & Trane MOT13004 , MOT-13004 , MOT12888 , MOT-12888 , MOT12292 , MOT12319 , MOT12542 , Carrier / ICP HD44AE137 , HD44AE137A , HD44AE138 , 1172987 , 1173682 , 5SME39HKL017 , 5SME39HXL285 , 5SME39HXL298 , S81-948 and other 1/2 HP X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10800. DOES NOT REPLACE EON , 3. 0 , 2. 3 and 2. 5 ECM Motors 1/2 Horsepower , 208-230 VOLT , Universal X13 Replacement Motor Motor was purchased and installed Dec 2021, removed from air handler this week due to purchasing new A/C system.
