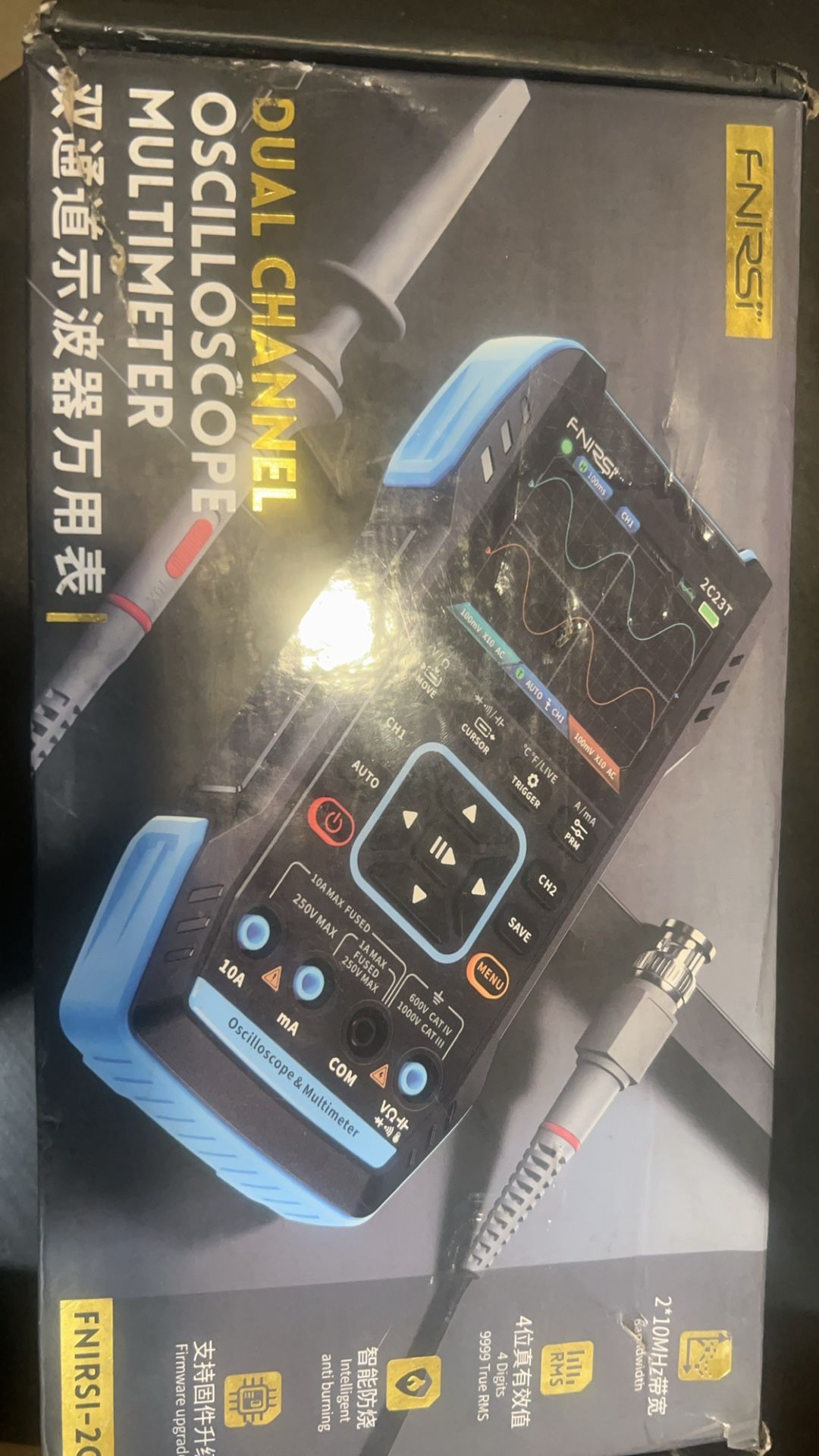

Dual channel oscilloscope multimeter

2 channel handheld oscilloscope】 10 MHz bandwidth, real-time sampling rate 50 MSa/s, record depth 32 kb, max measurement voltage 400 V, automatic measurement function, 200 mv/div-10 v/div vertical sensitivity, support waveform image storage and export 【Multimeter Mode】4-digit 10000 Counts. AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-99.99 MΩ, Capacitance: 0-99.99 mF, Diode, Continuity Measurement. An multi-function meter for professionals, schools, hobbyists 【Signal Generator】The maximum waveform output frequency can reach 2MHz and a step of 1Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC 【Excellent Design】The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8'' HD LCD display, built-in 3000mAh rechargeable battery, standby time up to 6 H, Type-C interface supports 5 V 1 A charging 【Save function】one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen

Condition

Open Box (never used)
