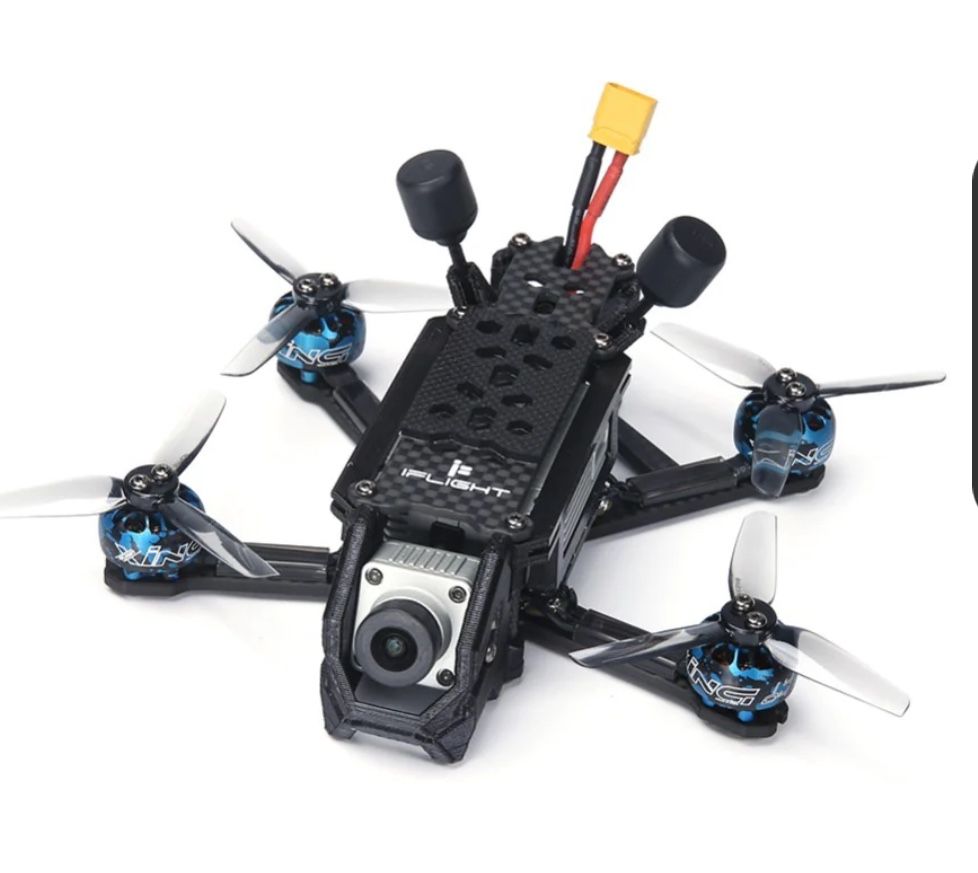

iFlight Titan DC2 2.3" 4S CineWhoop (w/ DJI FPV Air Unit) - BNF

The new micro Titan DC2 2.3" CineWhoop by iFlight features the amazing new DJI FPV System, which provides amazing visual 720p video clarity! The Titan DC2 HD BNF is equipped with iFlight's SucceX-A F4 40A AIO and iFlight's popular XING 1404 4S Motors. All you need to do is just bind-and-fly! Note: The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won't need to set up another receiver. If you don't have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual. FEATURES Less than 250grams with a 4S 450mAh battery! (5 Batteries included) No props or frame in view! Low Resonance frame construction (less jello, more cinematic footage!) DJI FPV Air Unit 720p 120fps FPV feed (records in 1080p/60fps) Butter smooth XING1404 motors Ducted prop guards protect the sensitive environment and yourself! Pre-tuned with smooth freestyle settings SPECIFICATIONS SucceX-A F4/40A BLHeli_32 true AIO board Motor: XING NANO 1(contact info removed)KV Wheelbase: 122mm Bottom plate thickness: 3mm Top plate thickness: 2mm Top and bottom plate spacing: 25mm (aluminum column height 25mm) Ducted propeller size: 2.3 inch Maximum propeller size without ducts: 2.5 inch (or 65mm props) FC pattern: 20*20mm，30.5*30.5mm FPV cam spacing: 19mm Weight: 165g (without battery) Flight time: 5-6 min cruising SucceX-A F4 AIO FC MCU: 168MHz STM32F405 Gyro：MPU6000 Blackbox：8MB OSD Chip: NO (Analog OSD not available) OSD Betaflight: YES (Digital DJI Air Unit pass-through) BEC: 5V 2.5A (3A MAX) / 10V 2.5A (3A MAX) Voltage sensor scale: 110 Current sensor scale: 100 Inverter for SBUS input (UART2-RX) Beeper pad: Yes RSSI input pad: No UARTs：5 Motor outputs: 4 8 pin for DJI air unit port (10V，GND，T1，R1，GND，R2I，T2，5V) BLHeli32 Telemetry：RX4 Input voltage：recommended 2-6S Firmware: IFLIGHT_F405_AIO Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm Dimensions: 40.5*43mm Weight: 11.4g USB: Type-C SucceX 40A 2-6S ESC Features 6 layers double-sided PCB board 2oz 1.6mm thick power board 32bit STM32F051 MCU, 48kHz maximum clock speed TDK MLCC Low ESR ceramic capacitors Top grade TPN2R304PL MOSFET Specifications MCU: STM32F051 Up to 48kHz PWM frequency Capacitance: 484uF Current Sensor: Yes Input: 2-6S LIPO Constant: 40A / Burst: 50A BlHeli32 telemetry: Yes BEC: No Supports up to Dshot1200, Proshot, Oneshot, Multishot Target: iFlight-BL32-4IN1 Mounting pattern: 30.5*30.5mm/Φ3mm Dimensions: 43*39mm (including the power pads) Factory Setup and Wiring Diagram INCLUDES Prebuilt and tested Quadcopter 1 x TITAN DC2 HD Frame 1 x DJI Digital HD FPV Air Unit (FPV Camera + Air Unit Module) 1 x TPU Bracket for DJI Air Unit Module 1 x TPU Antenna holder for DJI antenna 2 x TPU camera side plate soft mount 2 x 2327-3 / HQ 65mm-3 (Set of 4 - Color May Vary) 1 x iFlight Lipo Strap
