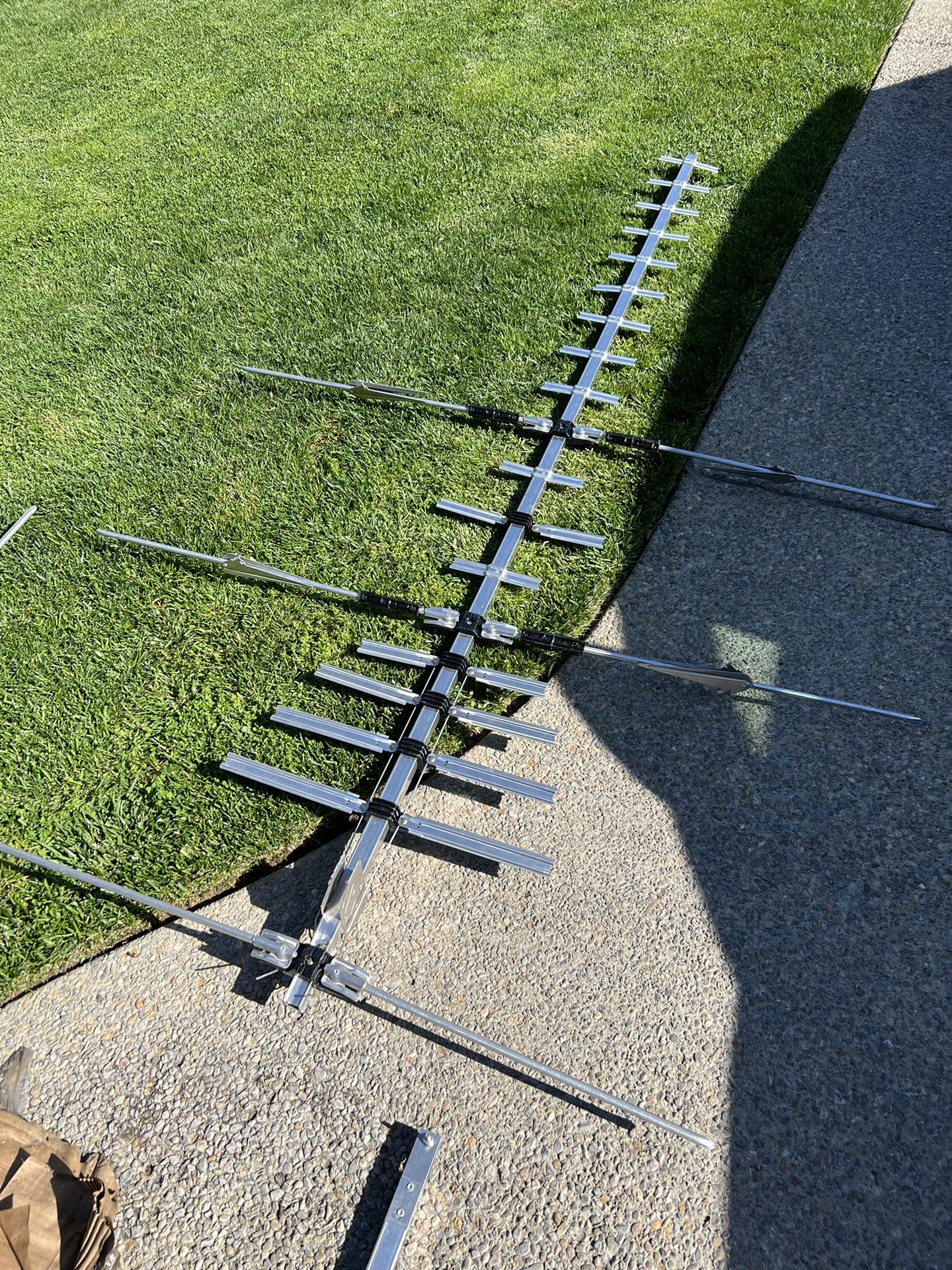

Winegard VHF/UHF Antenna/TRADE

Winegard HD 7698P High Definition VHF/UHF HD7698 Series TV Antenna (HD7698P) With the Digital Transition in February 2009 USA and in August 2011, the majority of markets will have at least one high band VHF channel. The HD-7698 Series has been specifically tuned for channels 7 - 69. The Winegard 7698P antenna has been specifically tuned for channels 7-69. ◾ Active Elements: 64 ◾ Less Wind loading ◾ Includes hardware for mounting to a mast; antenna has a 75 ohm coax connection ◾ Estimated Range: 70 miles VHF & 60 miles UHF ◾ *Note: This antenna can receive stations 2-6 in most areas due to the fact they are generally broadcast on higher unused UHF or VHF frequency numbers in the area. Our techs can verify this with your zip code information ◾UHF Elements: 35 ◾VHF Elements: 29 ◾ Boom Length: 168.25" ◾ Maximum Width: 53.5" ◾ Vertical Height: 33" ◾ Element Diameter: 3/8" ◾ Turning Radius 101" ◾ Shipping Weight 17 lbs. CHANNEL CH 7 CH 9 CH 11 CH 13 CH 14 CH 32 CH 50 CH 69 dB gain over reference dipole 10.4 12.6 11 12 14.2 13.7 12.2 13 Beam width at half power points 29° 34° 42° 41° 40° 41° 33° 23° Front-to-back ratio >20dB >20dB 19dB 18dB 13dB 20dB >20dB 10.5dB

Condition

Open Box (never used)

Model

HD7698 & HD8200

Brand

Winegard
