Dayton Audio DA215-8 8" Aluminum Cone Woofer

$40

Last updated about 14 hours ago in Queens, NY

Condition: New

Listed in categories: Electronics & Media - Audio & Speakers

Chat securely on the app

Sold by

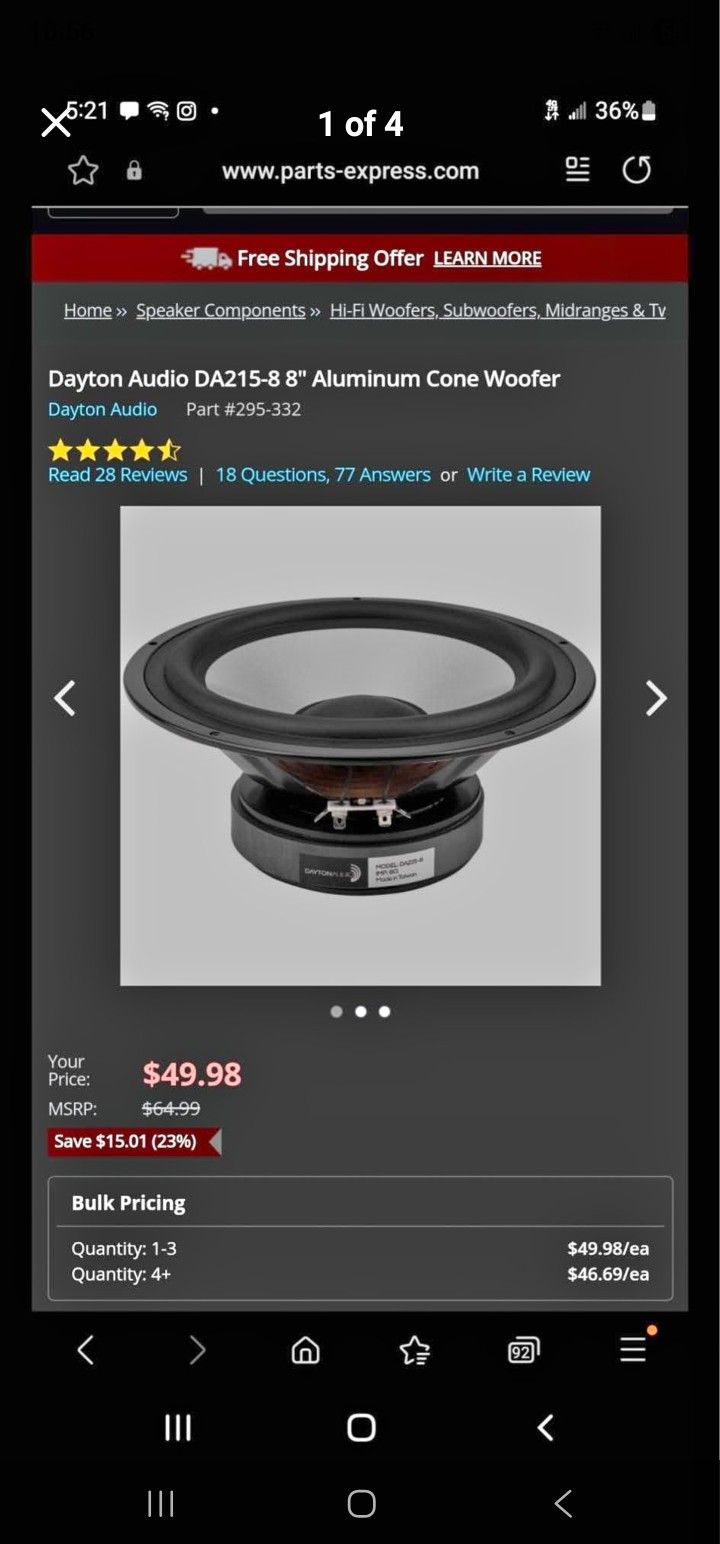

Dayton Audio DA215-8 8" Aluminum Cone Woofer

Additional images

Description

Selling a Dayton Audio DA215-8 8" Aluminum Cone Woofer. It is in great condition and comes with the original box. This woofer has an 8-inch aluminum cone, perfect for enhancing your audio system! Brand Dayton Audio Model DA215-8 Part Number 295-332 UPC (contact info removed)91 Unit of Measure Each Weight 5.4 Product Specifications Nominal Diameter 8" Bolt Circle Diameter 8.13 Power Handling (RMS) 60 Watts Power Handling (MAX) 120 Watts Impedance 8Ω Frequency Response 35 to 8,000Hz Sensitivity 88.7dB 2.83V/1m Voice Coil Diameter 1.42" Thiele-Small Parameters Resonant Frequency (Fs) 34.9Hz DC Resistance (Re) 6.8Ω Voice Coil Inductance (Le) 1.44mH Mechanical Q (Qms) 1.95 Electromagnetic Q (Qes) 0.45 Total Q (Qts) 0.37 Compliance Equivalent Volume (Vas) 1.51ft³ Mechanical Compliance of Suspension (Cms) 0.68mm/N BL Product (BL) 10T·m Diaphragm Mass Inc. Airload (Mms) 30.3g Maximum Linear Excursion (Xmax) 5.3mm Surface Area of Cone (Sd) 211.2cm² Materials of Construction Cone Material Aluminum Surround Material Rubber Voice Coil Wire Material Copper Voice Coil Former Aluminum Basket / Frame Material Steel Magnet Material Ferrite Mounting Information Overall Outside Diameter 8.5" Baffle Cutout Diameter 7.09" Depth 3.72" # Mounting Holes 5 Parts Express Staff Recommended Enclosure Volume Sealed Volume 0.35ft³ Sealed F3 87Hz Vented Volume 0.97ft³ Vented F3 43Hz
