AMX PC1 Power Control

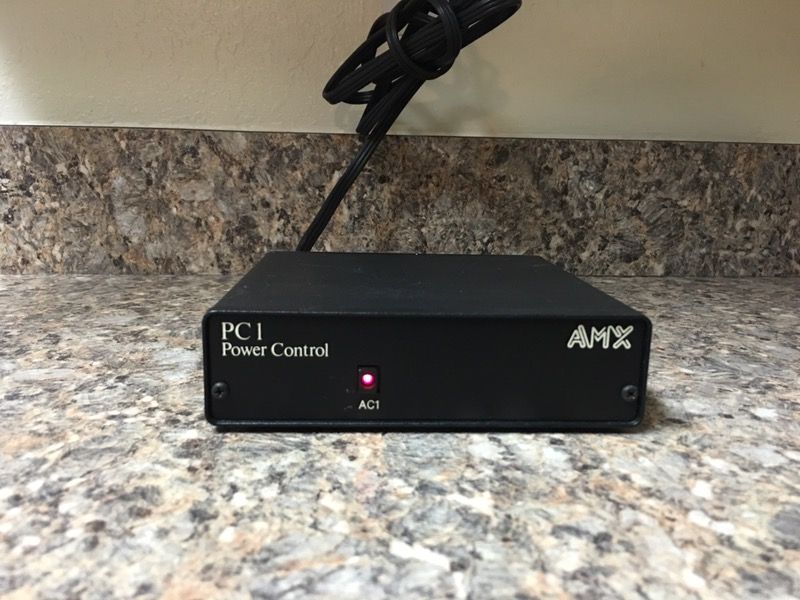

Great Shape! AMX PC1 Power Controller OVERVIEW The PC1 control provides one switched outlet for 120 VAC power control with up to 1200 W of equipment power. COMMON APPLICATION Ideal for giving power control over devices that may not be easily controlled via Infrared or other control signal types. FEATURES Front-panel on/off button with status LED DIP switch to set closure mode Specifications Recommended Accessories SPECIFICATIONS DIMENSIONS (HWD) 1 1/2" x 5 1/2" x 5 1/2" (3.8 cm x 14 cm x 14 cm) RU: 1 WEIGHT 1 lb, 12 oz (793 g) POWER REQUIREMENT Power Input: 105 to 125 VAC, 3 watts maximum (internal electronics) Power Outputs: 1 switched 3-wire sockets, 120 VAC, 1,200 watts total CONTROL PORTS Either one latched or two momentary closures for discrete on and off, or one momentary closure for toggling on and off Switched AC receptacle, 10 A at 120 VAC LOAD FUSE Internal 10 A (load capacity) CONTROL INPUTS Remote control contact and switch closure ENCLOSURE Metal with black matte finish PRODUCT TYPE AC switched power control unit FRONT PANEL AC1 power switch controls power to a switched socket. The LED in the pushbutton indicates that socket power is ON DIP Switch: Controls the AC1 (and AC2) push button operating mode, depending on the setting of the switches BACK PANEL AC Power Input: 3-conductor line cord providing 120 VAC power to the power control unit and to switched power sockets Switched Power: Socket for control of external equipment having a total power load of 1,200 watts. An internal 10 A load fuse is provided (The PC2 has 2 power sockets) Control: 4-pin captive-wire connector providing remote operation of the power control units. Terminals accept 24 – 12 AWG wire
