Rice Lake CW-90X Over/Under Washdown Checkweigher – EU 230 VAC
Last updated about 5 hours ago in Ontario, CA
Listed in categories:
Business Information
Ontario, CA 91761, USA
Chat securely on the app
Additional images
Description

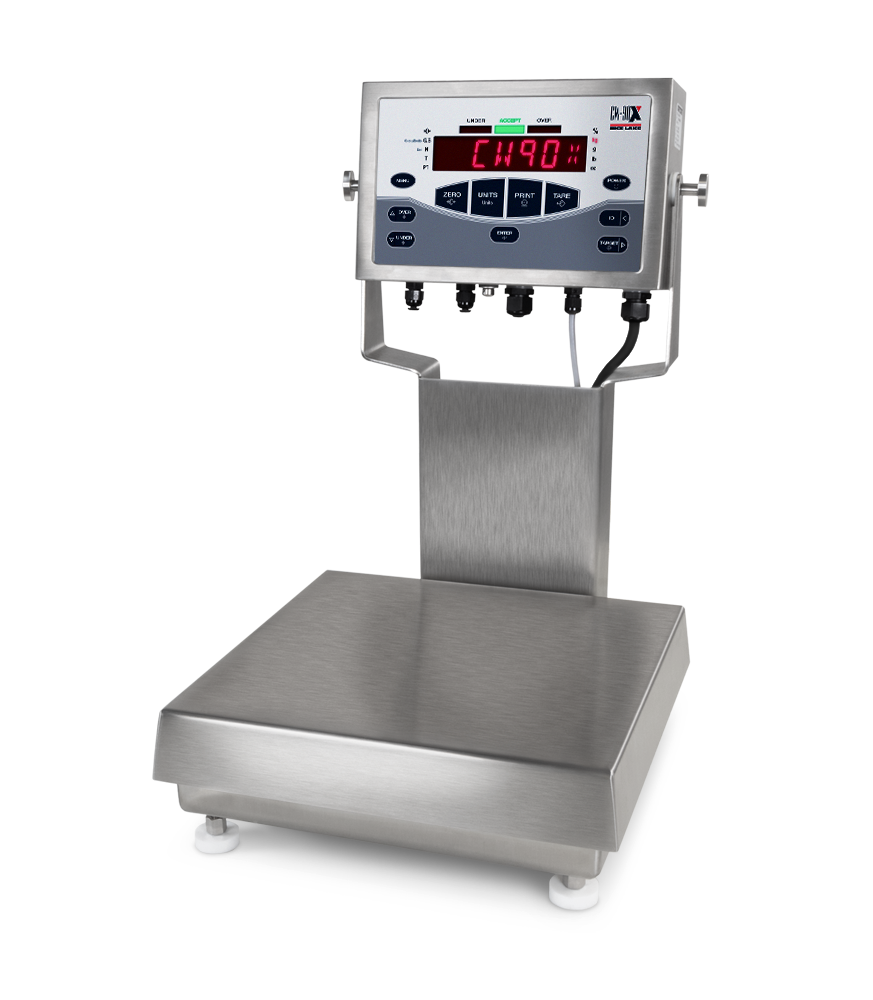

Rice Lake CW-90X Over/Under Washdown Checkweigher – EU 230 VAC
The Rice Lake CW-90X Over/Under Washdown Checkweigher is designed for demanding weighing environments where frequent washdown, moisture and contaminants are a concern. Featuring a durable 304 stainless steel construction, IP69K-rated indicator and hermetically sealed stainless steel load cell, the CW-90X provides reliable over/under checkweighing performance for food processing, manufacturing and other HACCP environments.
Its rigid piezo keypad is designed to withstand sharp contacts and exposure to liquids, while front-accessible controls allow operators to configure the checkweigher without opening the indicator and exposing internal components to moisture. The system can store up to 50 product IDs and provides high-intensity LED weighing display, configurable printing and multiple communication options.
Key Features
•
304 stainless steel construction•
IP69K-rated indicator•
IP69K hermetically sealed stainless steel load cell•
Durable piezo keypad•
PreVent™ breather vent•
High-intensity six-digit LED display•
Storage for up to 50 product IDs•
Units: kg, g, lb and oz•
Two full-duplex RS-232 serial ports•
Four configurable digital I/O•
Configurable print formats•
Audit trail tracking•
Auto-print capability•
Accumulator function•
Battery-backed time and date•
Firmware upgrade capability through reflash memory•
Optional Ethernet, USB and fiber-optic communication•
HACCP-compliant scale design•
Five-point overload protection•
Factory calibrated•
EU Legal for Trade•
CE marked and OIML approved•
European plug•
230 VAC operation
Available EU Configurations
| Part Number | Platform | Capacity | Column | Power | Certification |
|---|---|---|---|---|---|
| 106129 | 254 x 254 mm | 3 kg | 305 mm | 230 VAC | CE & OIML |
| 106130 | 254 x 254 mm | 6 kg | 305 mm | 230 VAC | CE & OIML |
| 106131 | 254 x 254 mm | 15 kg | 305 mm | 230 VAC | CE & OIML |
| 106132 | 305 x 305 mm | 15 kg | 305 mm | 230 VAC | CE & OIML |
| 106133 | 305 x 305 mm | 30 kg | 305 mm | 230 VAC | CE & OIML |
| 106134 | 305 x 305 mm | 60 kg | 305 mm | 230 VAC | CE & OIML |
All configurations are listed by Rice Lake as European versions with a European plug.
Specifications
Construction: 304 stainless steel
Indicator Rating: IP69K
Load Cell: IP69K hermetically sealed stainless steel
Display: 0.8 in, six-digit, high-intensity red LED
Display Resolution: 100,000
Measurement Rate: Up to 960 measurements/second
System Linearity: ±0.01% full scale
Operating Temperature: -10°C to 40°C
Communications: 2 × RS-232; optional Ethernet, USB or fiber optic
Digital I/O: 4 configurable channels
Units: kg, g, lb, oz, lb/oz
Power: 230 VAC, 50/60 Hz
Warranty: Three-year limited
Approvals: EU Legal for Trade, OIML, CE, cULus and NSF
Ideal Applications
•
Food processing•
Meat and seafood processing•
Washdown environments•
Packaging and production•
Quality control•
Over/under weight verification•
HACCP-controlled operations•
Manufacturing•
Industrial weighing•
Portion control
Details
Condition
Used (normal wear)
