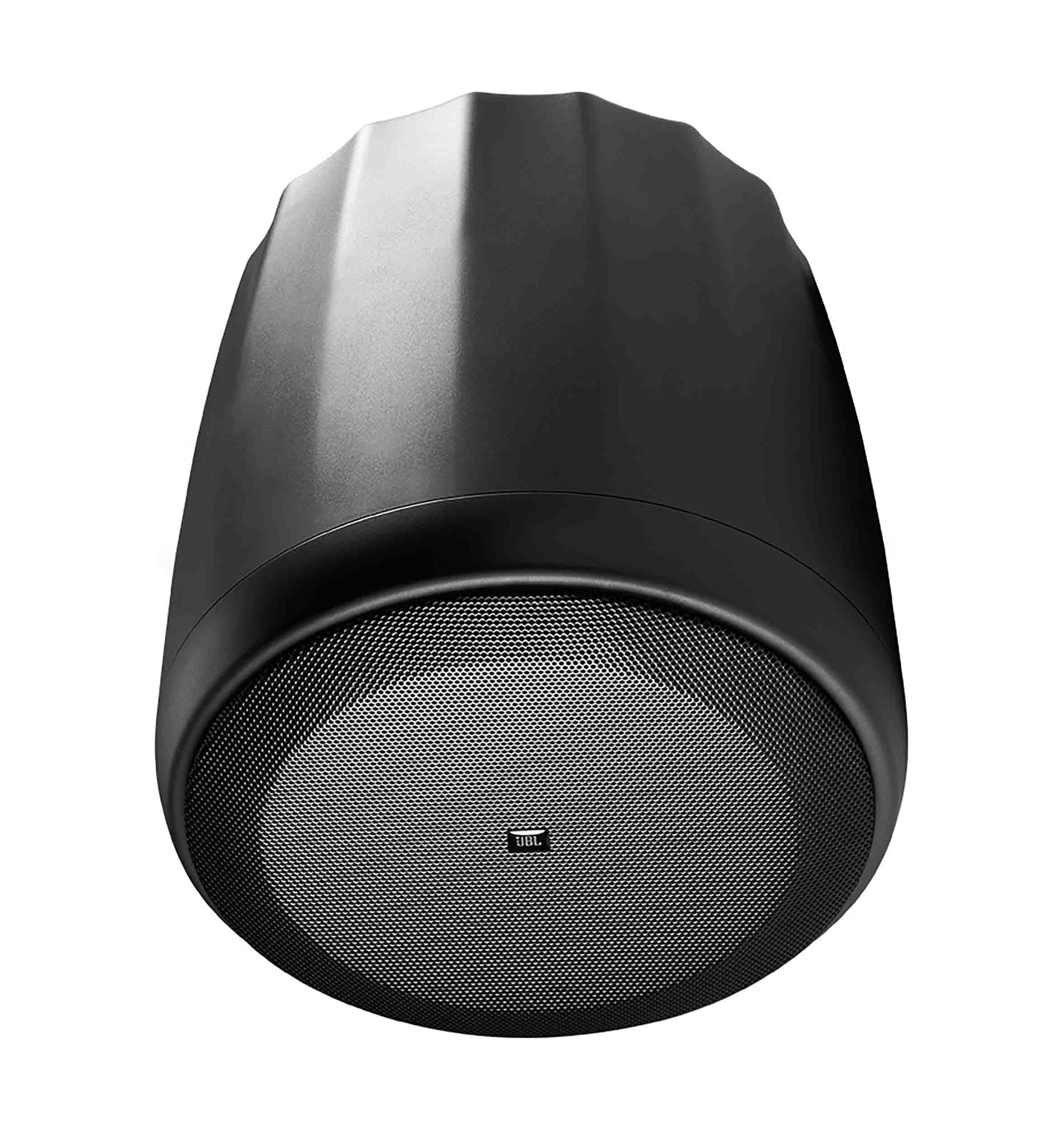

JBL C60PS/T, Hanging Pendant Subwoofer with Passive Crossover

The JBL C60PS/T is a Hanging Pendant Subwoofer with Passive Crossover. The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high-fidelity foreground/background music systems are utilized. Featuring 150-Watt power handling and low distortion, the long-excursion 200 mm (8 in) low-frequency driver features a butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high duty cycle, working conditions.

Product Specifications:

Frequency Range (-10dB): 42 Hz – 350 Hz

Frequency Response (±3 dB): 55 Hz – 125 Hz

Power Rating: 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs

Nominal Sensitivity (2.83V/1m) : 88 dB

Maximum SPL (1m): 107 dB @ 1 m (3.3 ft) average, 113 dB peak

Impedance: 8 ohms

Transformer Insertion Loss: 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W

Enclosure Material: High-impact polystyrene

Weight: 16.7 lbs
