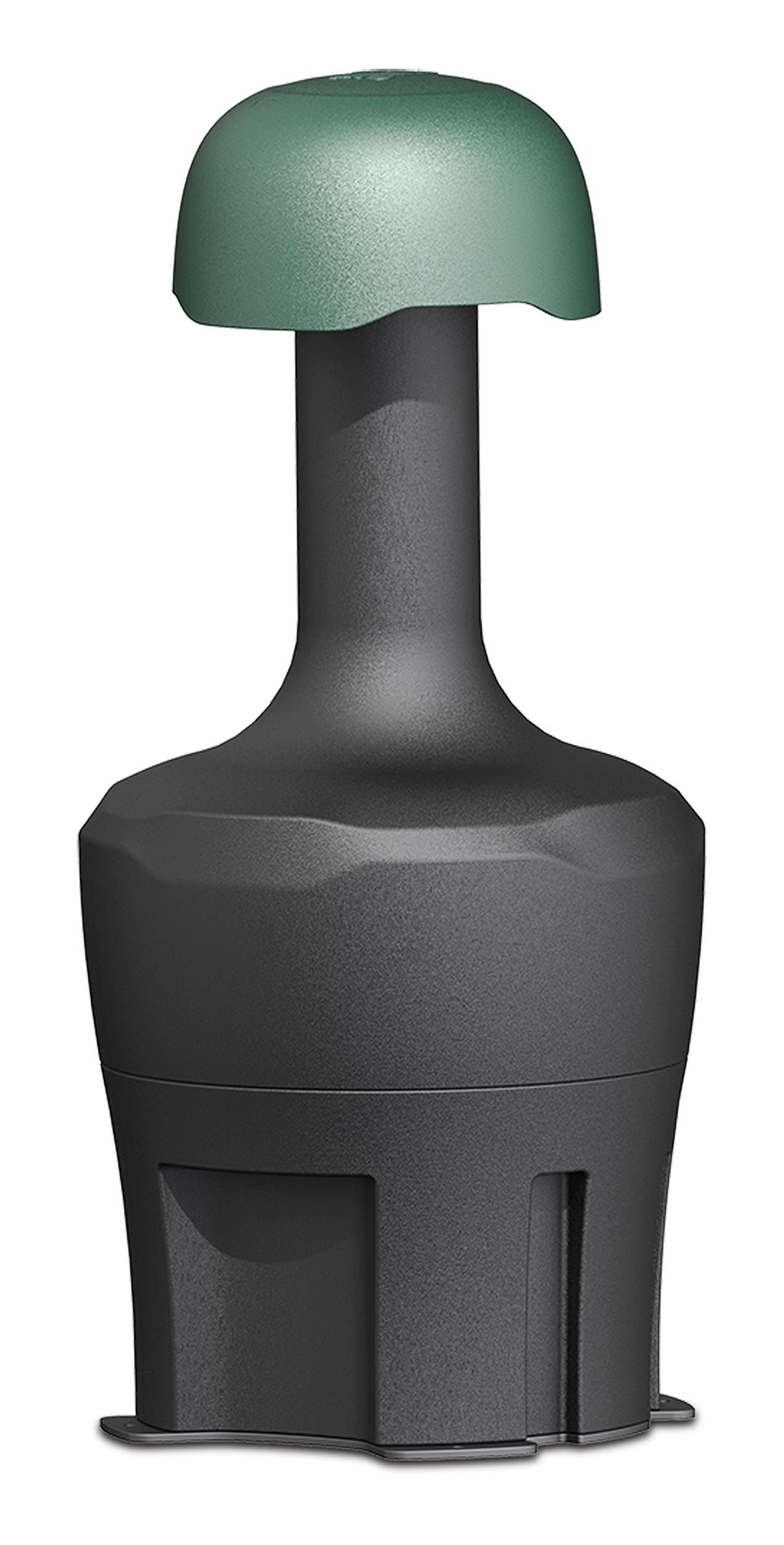

JBL GSB12, 12" In-Ground Landscape Subwoofer

The JBL GSB12 in-ground 12-inch landscape subwoofer augments the low-frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas of hospitality, corporate and retail spaces. The GSB12 focuses on fidelity, with true subwoofer extension down to 30 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium-grade, 200-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation.

This sleek, ultra-low-profile speaker-winner of international design awards for industrial design excellence-installs underground, with only the audio port visible. It’s designed to withstand the elements: Its chamber is oriented directly below the audio port to prevent accidental damage from landscaping, which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors. Add the GSB12 to landscape areas of hotels, shopping complexes, restaurants, public spaces, theme parks or any application that demands legendary JBL sound with deep, rich, powerful bass.

Product Specifications:

Frequency Range (-10dB): 30 Hz – 120 Hz

Frequency Response (+/-3 dB): 39 Hz – 107 Hz

Sensitivity: 85.5 dB (ave. 40 Hz – 105 Hz)

Maximum SPL: 118 dB peak (111 dB continuous, 2 hr) @ 1m

Coverage Pattern: Omnidirectional

Nominal Impedance: 6Ω (at 6Ω tap)

Terminals: Bare wire with dielectric-gel-filled wire nuts

Enclosure Material: LDPE Polyethylene plastic, 6 mm minimum wall thickness, color throughout

Color: Pine Green RAL 6028, or Beige Grey RAL 7006

Dimensions: 842 mm Height x 400 mm Diameter (34.2 x 15.8 in)

Net Weight: 16.2 kg (35.7 lbs)

Included Accessories: (7) wire nuts
