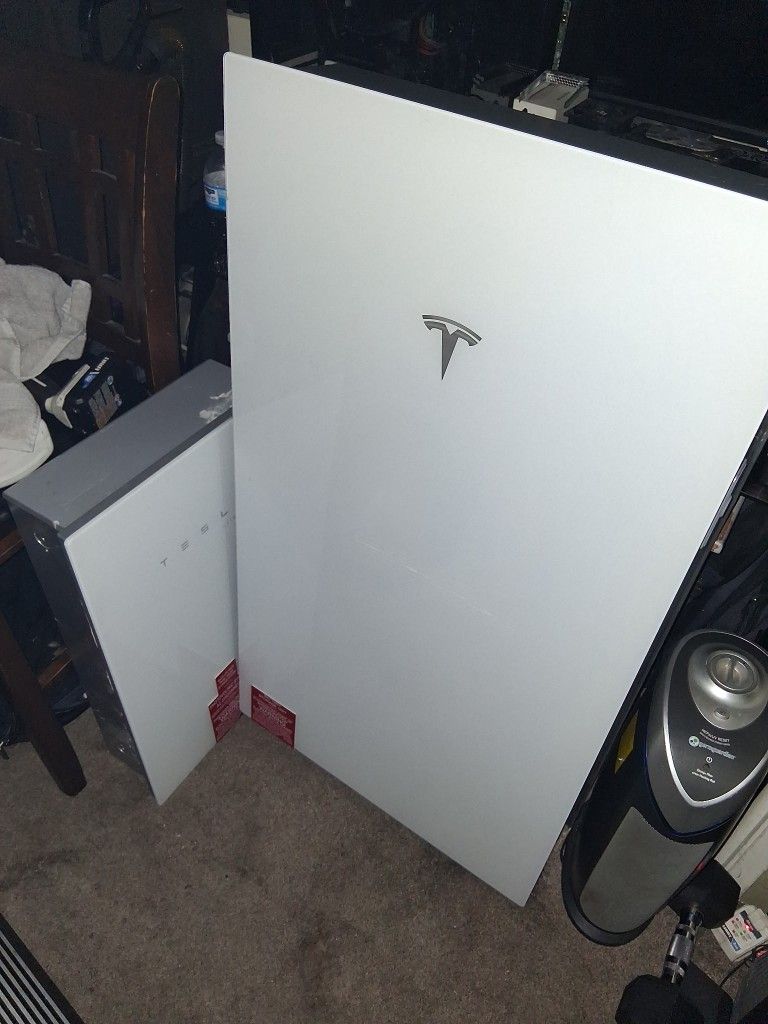

Tesla 1707000-XX-Y Powerwall 3 AC 13.5kW Battery $7,375.00 USD

Technical Specifications System Technical Specifications Model Number 1707000-xx-y Nominal Grid Voltage (Input & Output) 120/240 VAC Grid Type Split phase Frequency 60 Hz Nominal Battery Energy 13.5 kWh AC 1 Nominal Output Power (AC) 5.8 kW 7.6 kW 10 kW 11.5 kW Maximum Apparent Power 5,800 VA 7,600 VA 10,000 VA 11,500 VA Maximum Continuous Current 24 A 31.7 A 41.7 A 48 A Overcurrent Protection Device 2 30 A 40 A 60 A 60 A Configurable Maximum Continuous Discharge Power Off-Grid (PV Only, -20°C to 25°C) 15.4 kW 3 Maximum Continuous Charge Current / Power (Powerwall 3 only) 20.8 A AC / 5 kW Maximum Continuous Charge Current / Power (Powerwall 3 with up to (3) Expansion units) 33.3 A AC / 8 kW Output Power Factor Rating 0 - 1 (Grid Code configurable) Maximum Output Fault Current (1 s) 160 A Maximum Short-Circuit Current Rating 10 kA Load Start Capability 185 LRA Solar to Battery to Home/Grid Efficiency 89% 1,4 Solar to Home/Grid Efficiency 97.5% 5 Power Scalability Up to 4 Powerwall 3 units supported Energy Scalability Up to 3 Expansion units (for a maximum total of 7 units) Supported Islanding Devices Gateway 3, Backup Switch, Backup Gateway 2 Connectivity Wi-Fi (2.4 and 5 GHz), Ethernet, Cellular (LTE/4G 6) Hardware Interface Dry contact relay, Rapid Shutdown (RSD) certified switch and 2-pin connector, RS-485 for meters AC Metering Revenue Grade (+/- 0.5%, ANSI C12.20) Protections Integrated arc fault circuit interrupter (AFCI), Isolation Monitor Interrupter (IMI), PV Rapid Shutdown (RSD) using Tesla Mid-Circuit Interrupters Customer Interface Tesla Mobile App Warranty 10 years 1 Values provided for 25°C (77°F), at beginning of life. 3.3 kW charge/discharge power. 2 See Powerwall 3 Installation Manual for fuse requirements if using fuse for overcurrent protection. 3 15.4kW off-grid maximum continuous discharge power is only available if on-grid rating is 11.5 kW. If enabled, Powerwall 3 must be installed with an 80 A breaker and appropriately sized conductors. 4 Typical solar shifting use case. 5 Tested using CEC weighted efficiency methodology. 6 The customer is expected to provide internet connectivity for Powerwall 3; cellular should not be used as the primary mode of connectivity. Cellular connectivity subject to network operator service coverage and signal

Condition

Used (normal wear)

Brand

tesla
