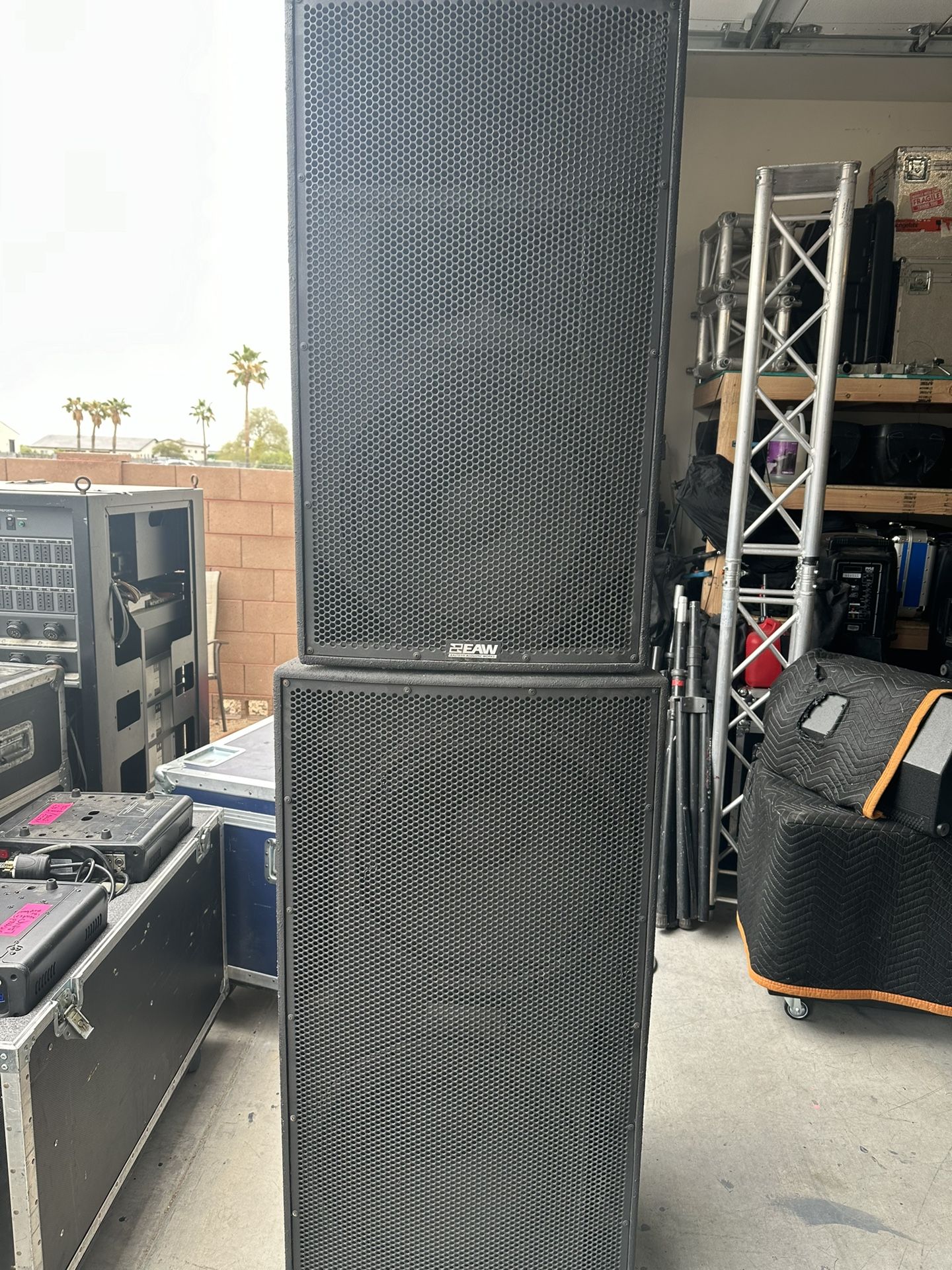

EAW LA series PA speakers

Brand

EAW

These speakers sound incredible. The cabinets have been completely redone with tough coat liner. All drivers are original. The LA128 subwoofer is engineered to complement the LA Series full range systems. Recessed cups on the top accept the footpads of an LA325 or another LA sub. The sub bass loudspeaker systems shall incorporate 2x 18-in LF transducer mounted in a vented enclosure tuned for optimum low frequency response. System frequency response shall vary no more than ±3 dB from 31 Hz to 200 Hz measured on axis using appropriate signal processing. The loudspeaker shall produce a Sound Pressure Level (SPL) of 98 dB SPL on axis at 1 meter with a power input of 1 Watt, and shall be capable of producing a peak output of 135 SPL on axis at 1 meter. The loudspeaker shall handle 1600 Watts of amplifier power (AES Standard) and shall have a nominal impedance of 8 Ohms. The loudspeaker enclosure shall be trapezoidal in shape. It shall be constructed of 15mm thickness void-free cross-grainlaminated Baltic birch plywood and shall employ extensive internal bracing. It shall be finished in black catalyzed polyurethane. Input connectors shall be dual Neutrik NL4 Speakon. The front of the loudspeaker shall be covered with a vinyl coated perforated steel grill. EAW LA460 • Compact Virtual Array Technology™ three-way system • Horn-loaded MF/HF (60° x 45° coverage pattern) • 15-in LF/8-in MF/1.4-in exit HF For portable use or permanent installation The three-way full range loudspeaker systems shall incorporate a 15-in LF transducer, an 8-in MF transducer and a 1.4- in exit/1.75-in voice coil compression driver HF transducer. The LF driver shall be mounted in a vented enclosure tuned for optimum low frequency response. The MF driver shall be loaded into a midrange horn constructed of 1/8-in birch plywood reinforced with high density polyurethane foam. The MF horn shall incorporate a phase/displacement plug. The HF driver shall be loaded on a constant directivity horn with a nominal coverage pattern of 60° (h) x 45° (v). Powering mode shall be switchable between full range passive and bi-amplified operation. In full range passive mode, an internal passive filter network shall provide fourth order acoustical crossover and system equalization between the low, mid and high frequency sections. In bi-amplified mode, an internal passive filter network shall provide fourth order acoustical crossover and system equalization between the low and mid frequency sections. System frequency response shall vary no more than ±3 dB from 62 Hz to 20 kHz measured on axis. The full range system shall produce a Sound Pressure Level (SPL) of 97 dB SPL on axis at 1 meter with a power input of 1 Watt and shall be capable of producing a peak output of 130 dB SPL on axis at 1 meter.
