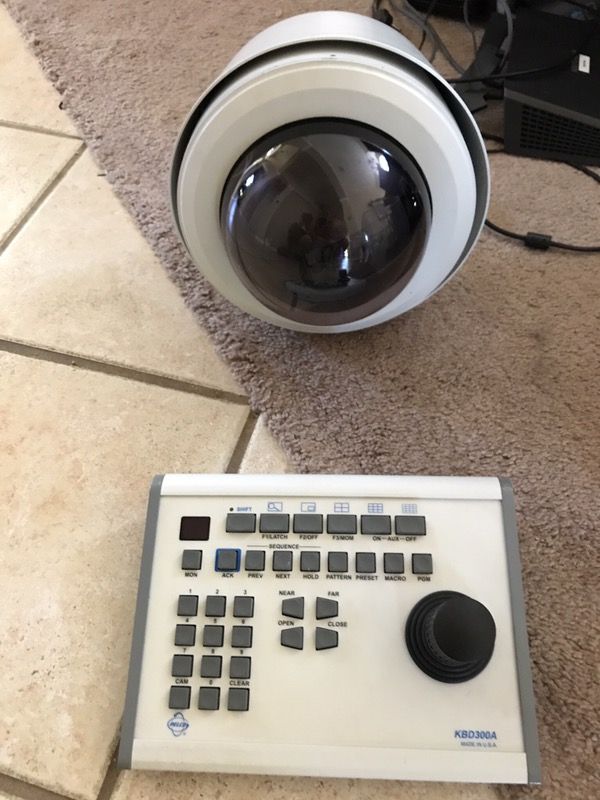

Controller & Camera Pelco kdb300a

Keyboard to Control: – CM6700/CM6800/CM9760-SAT/CM9700 Matrix Switchers – DX8100 Series Digital Video Recorder – Genex® Multiplexer When Used with CM6700 and CM6800 – Up to 16 Receivers Directly from Keyboard (such as Spectra®, Esprit®, and ExSite®) • Automatic Recognition of CM6700/CM6800 and Direct P Modes • Joystick Control of PTZ Functions • Preset Position and Pattern Control • Auxiliary Operation • Auto/Random/Frame Scanning • Programming of CM6700/CM6800/CM9760-SAT/CM9760-MDA The KBD300A keyboard is a full-function, desktop keyboard controller that can be used in a variety of applications. A barrel-type joystick provides precise pan and tilt control of fixed speed and variable speed receivers. Twisting the joystick clockwise or counterclockwise zooms the lens in or out. Keys select cameras and monitors; operate presets, patterns, auxiliaries, and sequences; open and close the iris; zoom and focus the lens; and start and stop auto, frame, and random scanning. The keyboard can be used in six modes of operation: CM6700/ CM6800/CM9760-SAT Mode, Direct P, Direct D, CM6700 ASCII, CM6800 ASCII/DX8100, and CM9760-MDA. The KBD300A keyboard automatically recognizes CM6700/CM6800 and Direct P modes. In the first two modes, the keyboard is plugged into a CM6700, CM6800, or CM9760-SAT switcher/controller unit (SCU) and is used to program and operate the SCU. The maximum number of keyboards per unit is eight (CM6700 and CM6800-32X6), sixteen (CM6800-48X8, CM6800E-48X8, and CM6800-96X16) or four (CM9760-SAT). In CM6700/CM6800 applications, the keyboard can control cameras connected directly to the SCU or through an MX4000 Series Genex multiplexer. If you do not need all the features of the CM6700/CM6800 SCU, but want the same keyboard functionality, then one keyboard can be wired directly to camera receivers in Direct P or Direct D mode (KBD-KIT required). C527 / REVISED 7-16-08 Up to 16 receivers can be wired to a keyboard; however, a switcher such as an MS500 or...
