$650

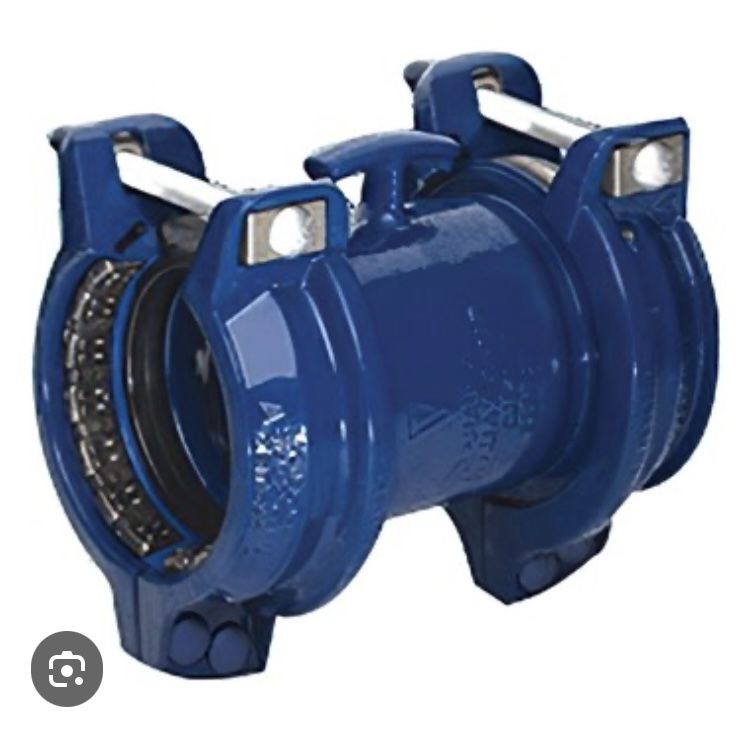

Hymax Grip 6” Range 6.50-7.20 890-56-06165-16

Posted 1 day ago in Sacramento, CA

Listed in categories:

Sold by

Get a second opinion

Chat securely on the app

Hymax Grip 6” Range 6.50-7.20 890-56-06165-16

Additional images

Description

There are many situations that require couplings with additional restraining power. Krausz restraint products combine the patented technology of the HYMAX coupling with a unique restraint system, joining pipe ends while preventing any possible movement. Designed using Krausz's innovation and patented technology, our restraining solutions work with all metal and plastic pipes and are suitable for a wide variety of applications. Hymax Grip Coupling Features 890-56-06165-16; 6.0" EPDM Coupling Restraint Joins and Restrains A Wide Range of Piping Types and Diameters Unique Radial Gripping System Prevents Pipe Motion Universal Gripping Teeth Fit Metal and Plastic Pipes Ready to use, Stab-Fit Design Allows 4° Dynamic Deflection Per End, Reducing Future Damage Durable Ductile Iron Body Patented Hydraulically-Assisted Gasket with 2-Stage Sealing Hymax Grip Coupling Specifications Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372 SIZE: 6.0" Nominal Diameter Pipe Size PIPE O.D. RANGE: 6.50 - 7.20 WORKING PRESSURE: 232 PSI RATED PRESSURE: 350 PSI TORQUE: 110 FT-LBS MATERIALS: END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18 CENTER RING: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12 with Handle GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water GRIP CHAIN: Gripping Teeth: Size 4.0"-12" AISI 420 2B or AISI 440C BRIDGE: AISI 304 Stainless Steel SPHERICAL SPACERS: AISI 304 Stainless Steel COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL. NUTS,BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

Used (normal wear)

Type

Plumbing pipe coupler

Brand

Hymax
