Mackie Onyx 1640 16-Channel, 4-Bus Analog Recording Mixer Mackie

Type

Speakers & Monitors

Brand

Mackie

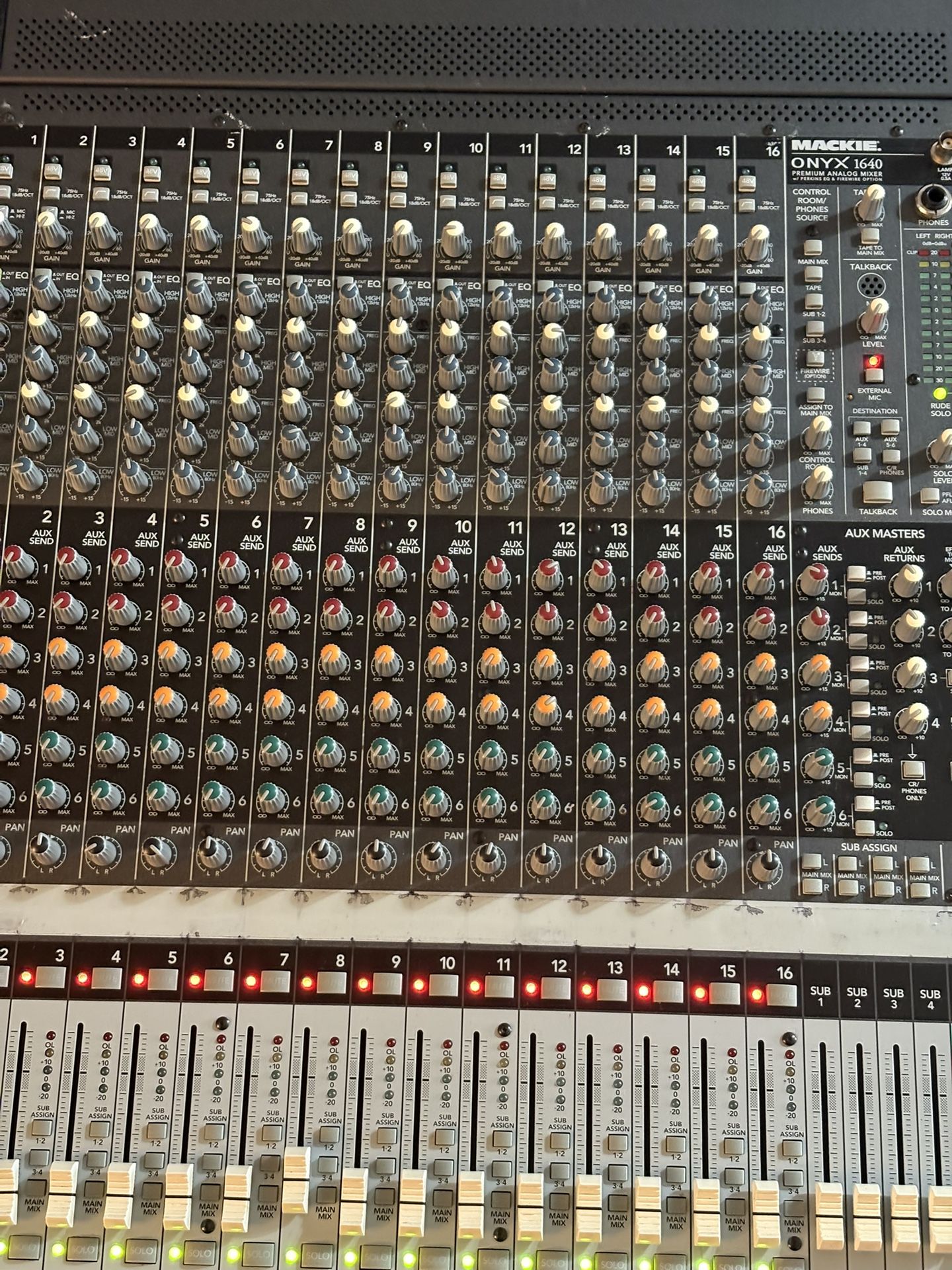

The Mackie Onyx Series of analog mixers combine the renowned signal performance Mackie is known for, with the convenience of FireWire integration to PC and Mac based workstations. The Onyx 1640 Mixer features a total of 16 line inputs and 16 microphone inputs. The line inputs feature balanced 1/4" TRS phone inputs, channels 9 through 16 are stereo paired for adapting keyboards and other stereo output devices. 16 Onyx microphone preamplifier's feature balanced XLR connectors that improve upon the famed XDR preamplifier with delivering exceptional headroom and low noise floor. Four assignable output buses provide adequate channel routing to recorders, monitors, etc. All 16 inputs feature balanced direct outputs via analog D-sub connectors for feeding multi-track recorders, monitor mixers etc. Perhaps the most unique feature is the Fire-Wire I/O expansion card slot. The expansion card allows the mixer to bridge with Fire-Wire equipped computers without any additional hardware. The card is capable of transferring up to 18 channels of 24-bit/96 kHz audio. The Mackie Onyx series mixers are at home in project recording and sound reinforcement applications. Mackie Mackie Onyx 1640 Model Number BH # MAO1640 Manufacturer # ONYX 1640 Total # Of Inputs 16 - Balanced 1/4" TRS Phone Inputs Mic/Line Inputs 16 - Balanced XLR Mic Inputs, 16 - Balanced 1/4" TRS Phone Inputs Stereo Line Inputs 4 - Balanced 1/4" TRS Phone Inputs channels 9 through 16 are stereo paired In-Line Inputs/Returns No AUX Sends 4 - Balanced/Unbalanced switchable 1/4" TRS Phone AUX Returns 4 - Stereo (L/R) Balanced/Unbalanced switchable 1/4" TRS Phone Inserts 8 - 1/4" TRS Phone Pre-Fader/Pre EQ BUS (Group) Outputs Bus Outputs: 4 - 1/4" TRS Phone Direct Outputs: 16 - 2x Balanced D-Sub Connectors (1-8 & 9-16) ALT 3/4 Output: L/R 1/4" TRS Phone 2 Trk Master I/O Main Out: Stereo L/R - Balanced 3-pin XLR-male Main Out: Stereo L/R - Balanced 1/4" TRS Phone ALT I/O Tape Input/Output: L/R RCA-pin Monitor Outputs Control Room: L/R Balanced 1/4" TRS Phone Phones: Single 1/4" TRS Phone EQ Section Mono Channel EQ: High: +/- 15 dB @ 12 kHz Mid: +/- 15 dB, sweepable from 100 Hz to 8 kHz Low: +/-15 dB @ 80 Hz Stereo Channel EQ: High: +/- 15 dB @ 12 kHz Mid: +/- 15 dB @ 2.5 kHz Low: +/- 15 dB @ 80 Hz Solo/Mute Solo & Mute On Every Channel signal is automatically routed to ALT 3/4 output while Mute is active Channel Level Control Channel Fader Trim/Gain Control Sealed Rotary Control (POTS) Phantom Power +48V individually switchable Metering 12 Segment Stereo Peak LEDs Frequency Response Mic Input to Main Output (Gain @ Unity) 20 Hz to 50 kHz +0, -1 dB 10 Hz to 100 Hz +0, -3 dB Dynamic Range > 110 dB (Mic In to Main Out) Signal-to-Noise Ratio 20 Hz to 20 kHz Bandwidth, 150 ohm source impedance) Equivalent Input Noise (E.I.N) -129.5 dBu @ +60 dB gain Mic Output Noise Recording Output: -100 dBu (minimum gain) Residual Output Noise Main Out: -102 dBu (Channel and Main Mix levels off) Main Out: -88 dBu (Channel and Main Mix levels at unity) Total Harmonic Distortion (THD) Mic Input to Main Output (@ +4 dBu) THD: < 0.01%, 20 Hz to 20 kHz SMPTE IMD: < 0.005% (7 kHz/ 60 Hz, 4:1) Power Supply Power Consumption: < 55W Universal AC Power Supply: 100VAC - 240VAC, 50 - 60 Hz Dimensions 17.4 x 7.5 x 24.3" (442 x 191 x 617mm) Weight 29.7 lbs (13.5 kg)
