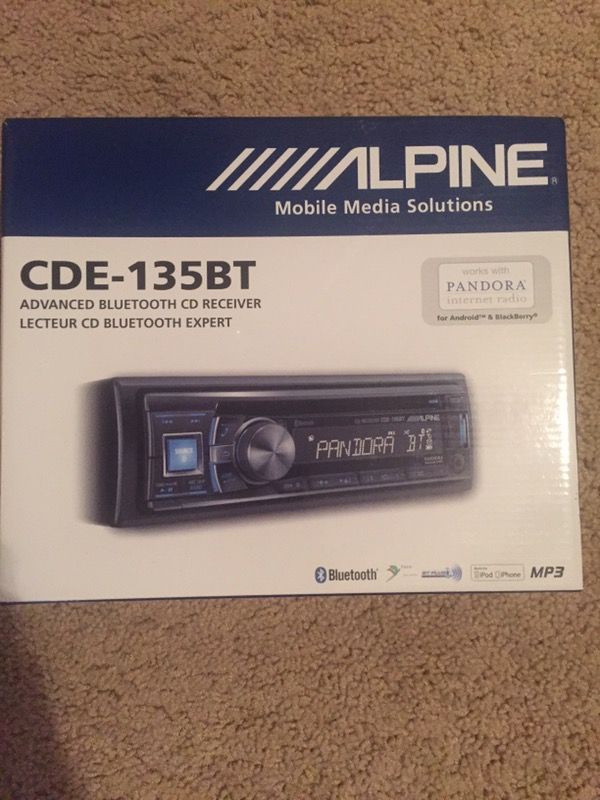

Alpine CDE-135BT Advanced Bluetooth CD Receiver

NEVER USED!! DOCUMENTS Owner's Manual | CDE-133BT Owner's Manual (French) Owner's Manual | CDE-133BT Owner's Manual (Espanol) Owner's Manual | CDE-133BT Owner's Manual (English) FEATURES Tuner Memory Presets: Memory Preset Stations (FM:12 / AM:6) Memory: Memory Auto Memory Seek Mode: Local/DX Seek Selectable BluetoothA? Parrot Bluetooth Module Built-In: Built-in Parrot Bluetooth module Hands Free Calling: HFP (Hands Free Profile) Head Set Calling: HSP (Head Set Profile) Streaming Music: A2DP (Advanced Audio Distribution Profile) Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) with TAG display BT plus advanced Bluetooth technology: BT plus Connection: Secure Simple Pairing suppoeted Short Message Indicator: MSG Alert Display Signal Strength Indicator: Signal Strength Display Battery Quantity Indicator: Battery Quantity Display Phone Book: Phone Book Transfer Phone Book Search: First 3 Letters Alpi??abet Search Label: Telephone Label Display (General/Mobile/Home/Office/Other) Redial Function: Redialing a Number in Outgoing History Call History (Dialed, Received, Missed): Phone Book Call/Dialled call/Received call/Missed call Adjusting the volume when receiving a Call: Volume Adjustable Voice Dial Operation: Voice Dial Operation Supported Auto Answer: Auto Answer Supported Call Waiting switch: Call Waiting switch HFP Sound Setting: 5 Type of HFP Sound setting Firmware Update: Firmware Updatable Microphone: Microphone Included Steering Wheel Remote Control Ready: Steering Wheel Remote Control Ready Connection for iPodA? Made for iPod/iPhone: Made for iPod/iPhone Connection Type: USB Connection Connection for USB: Front USB Connection: USB Cable (KCU-445i) Required Compatibility for iPodA?/iPhoneA?: Made for iPod touch 4G/3G/2G/1G, iPod nano 6G/5G/4G/3G/2G/1G, iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4, iPhone 3GS, iPhone 3G and iPhone M.I.X. (Shuffle) Capability: Song, Album, All Music Control: Song Up / Down, Fast Forward/Backward, Repeat Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook Percentage Search: Percentage Search (Direct Search Function) Alphabet Search: Direct Up/Dn: Playlist/Artist/Album/Genre/Composer/Episode UP/DN Information Display: Artist, Song, Album Direct iPod/iPhone Contoroll: iPod mode/HU mode selectable Connection for USB USB Connection: Front Panel Input USB Input: Music & Video Playback: MP3 Playback Search Music: Folder/File search USB Class: Mass Storage Works With Supported Nokia Phones: Disc Player Disc Type: CD Player Disc Playback Type: CD/CD-R/CD-RW Playable Format: CDDA, MP3 DAC: Multi Bit DAC Zero data Mute: Zero data Mute Music Sensor: Music Repeat (track/all) Playback Control: Play/Pause/Forward/Backward M.I.X. Mode: M.I.X. Mode CD Text: Tag display Sound Tuning Subwoofer Level: Subwoofer Level adjustment Subwoofer Phase Select: Subwoofer Phase Adjustment (0A?/180A?) Subwoofer System Select (Stereo Mono): Subwoofer System Select High Pass Filter: High Pass Filter adjustment Low Pass Filter: Low Pass Filter Adjustment Default Equalizer setup: USER / FLAT (Initial setting) / POPS / ROCK / NEWS / JAZZ / ELEC DANCE / HIP HOP / EASY LIS / COUNTRY / CLASSICAL Equalizer: 3-Band Equalizer Bass Level: Bass Level Adjustment Bass Center Frequency: Bass Center Frequency Adjustment Bass Bandwidth Adjustment: Bass Q Adjustment Mid Level: Mid level Adjustment Mid Center Frequency: Mid Center Frequency Adjustment Mid Bandwidth Adjustment: Mid Q Adjustment Treble Level: Treble Level Adjustment Treble Center Frequency: Treble Center Frequency Adjustment Treble Bandwidth Adjustment: Treble Q Adjustment Loudness: Loudness Feature Source Tone Memory: Source Tone Memory General Power Output: Max 50 W x 4 High Power Amplifier Display: White LCD(14seg??10) Control Type: Rotary Encoder Knob Face Color: Black Illumination Buttons: Blue Illuminated Buttons Playback: MP3 Playback USB Input: Front Panel Input PreOut: 1 PreOuts (2V, Front/Subwoofer Selectable) Auxiliary Input: Front AUX Input (3.5mm mini jack) Steering Wheel Control: Steering Wheel Control Ready Bass & Treble: Bass & Treble Controls Fader & Balance: Fader & Balance Controls Clock: Clock Built-In Clock DIN Trim Plate: Detachable Trim Plate Detachable Face Plate: Detachable Face Plate Dimmer: Dimmer input Power Antenna Lead: Power Antenna Lead Output Remote Turn-On: Remote Turn-On Output Mute: -20dB Mute (Remote control only) Remote Control: Remote Control Ready SPECIFICATIONS CEA-2006 Power Ratings CEA-2006 Power Rating: 4 I? @14.4 V Ƈ%THD+N, S/N 80 dBA (ref.1 W into 4 I?), 18 W x 4 Max Power Output Ratings Max Power Output: 50W x 4 FM Tuner Tuning Range: 87.7-107.9 MHz Mono Usable Sensitivity: 9.3 dBf (0.8 I?V/75 ohms) 50dB Quieting Sensitivity: 13.5 dBf (1.3 I?V/75 ohms) Alternate Channel Selectivity: 80 dB Signal-to-Noise (S/N) Ratio: 65 dB Stereo Separation: 35 dB (at 15 kHz) Capture Ratio: 2.0dB AM Tuner Tuning Range: 530-1,710 kHz Usable Sensitivity (IEC Standard): 22.5I?V/27.0dBf BluetoothA? Bluetooth Version: Bluetooth V 3.0 Output Power: +4 dBm Max. (Power class 2) HFP: HFP (Hands-Free Profile) HSP: HSP (Head-Set Profile) A2DP: A2DP (Advanced Audio Distribution Profile) AVRCP: AVRCP Ver.1.3 (Audio/Video Remote Control Profile) Disc Player Frequency Response: 5Hz ~20kHz (A?1 dB) Channel Separation (at 1kHz): 85 dB Dynamic Range (at 1kHz): 95 dB Total Harmonic Distortion (at 1kHz): 0.008% Wow & Flutter (%WRMS): Below measurable limits Signal-to-Noise Ratio: 105 dB Connection for USB USB Requirements: USB 1.1/2.0 Max. Power Consumption: 1,000 mA USB Class: Mass Storage File System: FAT 12/16/32 MP3 Decoding: MPEG-1/2 AUDIO Layer-3 Number of Channels: 2-Channel (Stereo) Frequency Response: 5Hz ~20kHz (A?1 dB) Total Harmonic Distortion (at 1kHz): 0.008% Dynamic Range (at 1kHz): 95 dB Signal-to-Noise Ratio: 105 dB Channel Separation (at 1kHz): 85 dB Sound Tuning Subwoofer Level Adjustment: 0 to +15 High Pass Filter: OFF/60/80/120/160 Hz (Selectable) Low Pass Filter: OFF/60/80/120/160 Hz (Selectable) Bass Level Control Range: -14 to +14 dB Bass Center Frequency: 60/80/100/120Hz (Selectable) Bass Band Width Adjustment (Q): 4 choices (0.5 =narrow, 1.0 =medium, 1.5 =medium, 2 =wide) Mid Level Control Range: -14 to +14 dB Mid Center Frequency: 500Hz/1KHz/1.5KHz/2.5KHz (Selectable) Mid Band Width Adjustment (Q): 4 choices (0.75 =narrow, 1.0 =medium, 1.25 =medium, 1.5 =wide) Treble Level Control Range: -14 to +14 dB Treble Center Frequency: 7.5kHz/10kHz/12.5kHz/15kHz (Selectable) Treble Band Width Adjustment (Q): 2 choices (0.75 =narrow, 1.25 =wide) Dimensions Din Size: 1 Din Chassis Size (W x H x D) mm: 178 mm x 50 mm x 161 mm Chassis Size (W x H x D) in: 7'' x 2''x 6-3/8'' Nose Piece Size (W x H x D) mm: 170 mm x 46 mm x 25 mm Nose Piece Size (W x H x D) in: 6-3/4'' x 1-13/16'' x 1'' General Power Requirement: 14.4 V.DC (11-16 V allowable) Pre Output Voltage (Before Clipping): 2 V/10 k ohms Operating Temperature (A?C/ A?F): 60 A?C (140 A?F) to -10 A?C (14 A?F) Maximum Mounting Angle: 35A? from Horizontal Weight: 1.5 kg (3 lbs. 4 oz) Aux-In: 1.4 V/10 k ohms Recommended Accessories RUE-4202: RUE-4202 remote control supported KCU-445i: To connect an iPod/iPhone for USB connection KCU-230NK: To connect works with supported KTP-445: KTP-445 Power pack ready
