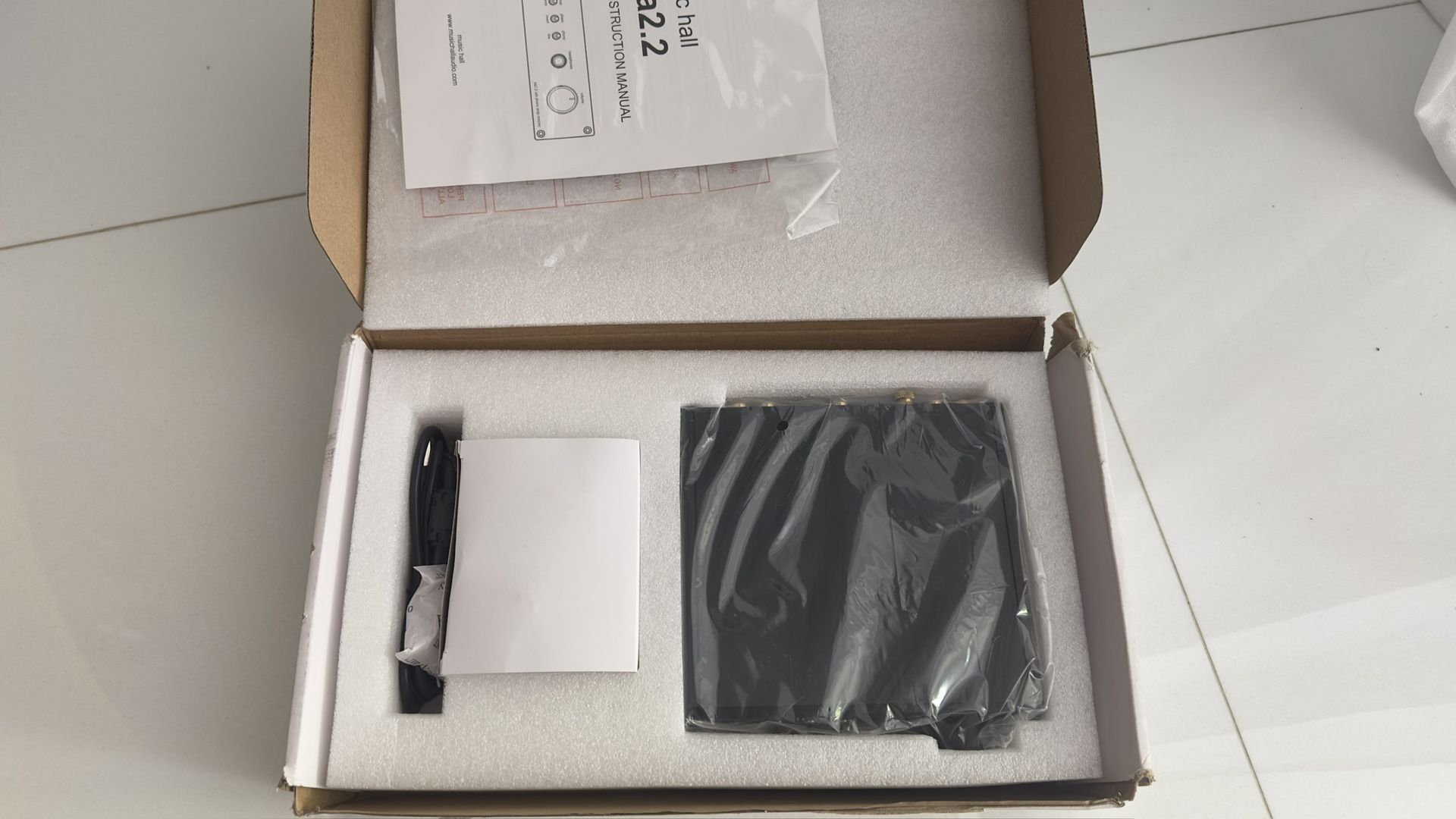

Music Hall PA2.2 MM/MC Phono, A2D, & Headphone Preamplifier

The Music Hall pa2.2 phono amplifier is the ultimate tool for vinyl enthusiasts. It features an ultra-quiet MM/MC phono amp, high-grade headphone amp, analog-to-digital converter, and high-resolution 2-input pre-amplifier in one sleek package. With fixed or variable line output capability, you can record vinyl or any line level source to your computer with ease. The pa2.2 also includes an adjustable MC gain stage, USB digital output, and Apple Mac and Windows compatibility. Its high-performance 24bit/96kHz analog-to-digital converter, superior wolfson WM8786 ADC, and tenor TE7022 24bit/96kHz USB receiver deliver unrivaled sound quality. The phono amp also boasts a phase/invert switch for perfect audio phase, gold-plated RCA inputs and outputs, and silky smooth high-grade Alps “blue velvet” volume control. Its solid alloy construction and vibration damping feet ensure durability and stability. The pa2.2 is truly a Swiss Army knife of phono amps that delivers unparalleled versatility and performance. Product Highlights: Ultra-quiet MM/MC phono amp High-grade headphone amp High-resolution 2 input pre-amp (phono and line level) Record vinyl or any line level source to computer Adjustable MC gain stage USB digital output Apple Mac and Windows compatibility High-performance analog to digital converter Superior Wolfson WM8786 ADC Tenor TE7022 USB receiver Stereo or mono capability Phase/invert switch for perfect audio phase Fixed or variable line output capability High-quality 1/4” headphone output Gold-plated RCA inputs and outputs Smooth high-grade Alps “blue velvet” volume control Energy-efficient external switch mode power supply PA2.2 Spedcifications MM input impedance: 47 kohms+ 220 pF MC input impedance: 100 ohms + 1 pF Analog line-level input impedance: 47 kohms MM gain at 1kHz: 39 dB MC gain at 1kHz: 59 dB (20 dB gain selected) / 65 dB (26 dB gain selected) MM input sensitivity for 316 mV output: 3.3 mV MC input sensitivity for 316 mV output: 0.4 mV (20 dB gain selected) / 0.2 mV (26 dB gain selected) MM signal-to-noise ratio unweighted (with cartridge connected): 70 dB MC signal-to-noise ratio unweighted (with cartridge connected): 75 dB (20 dB gain) / 70 dB (26 dB gain) Analog Line-level input Signal-to-noise ratio: 120 dB MM Input overload level at 20Hz/1kHz/20kHz: 8/71/650 mV MC Input overload level at 20Hz/1kHz/20kHz (20 dB gain selected): 0.95/48/450 mV MC Input overload level at 20Hz/1kHz/20kHz (26 dB gain selected): 0.45/24/225 mV MM Total Harmonic Distortion + Noise (10 mV in): <0.01% MC Total Harmonic Distortion + Noise (1 mV in and 20 dB gain selected): <0.05% MC Total Harmonic Distortion + Noise (1 mV in and 26 dB gain selected): <0.05% Analog line-level input total harmonic distortion + noise: <0.01% RIAA curve accuracy: +/- 0.3 dB MM Crosstalk: 65 dB MC Crosstalk: 65 dB (20 dB gain) / 60 dB (26 dB gain) Line-level input crosstalk: 63 dB Fixed line-level output impedance: 270 ohms Variable line-level output impedance: 270 ohms Headphone stage output impedance: 2 ohms Headphone stage maximum output level: 6.8 V Headphone stage total harmonic distortion + noise: <0.02% USB output: maximum 24 bit linear PCM USB output sampling frequency: maximum 96 kHz Power Supply Rejection Ratio: 80 dB Power supply: external 24VDC with multi-region plug adaptors Power consumption without signal: 2.9 W Dimensions (WxHx D): 6.3" x 2.0" x 6.7" (159 x 51 x 171 mm) Unit weight: 2lbs. (900g) Input Connections: 3 pairs of RCA sockets (left/right) 1 x MM, 1 x MC, 1 x Line Output Connections: 2 pair of RCA sockets (left/right) 1 x variable, 1x fixed 1 x headphone output 32 - 600Ω A/D Converter: Wolfson WM 8786, Tenor TE7022L 24Bit Delta Sigma

Condition

New

Brand

Music hall
