Drafting Machine — 24” — Left-handed

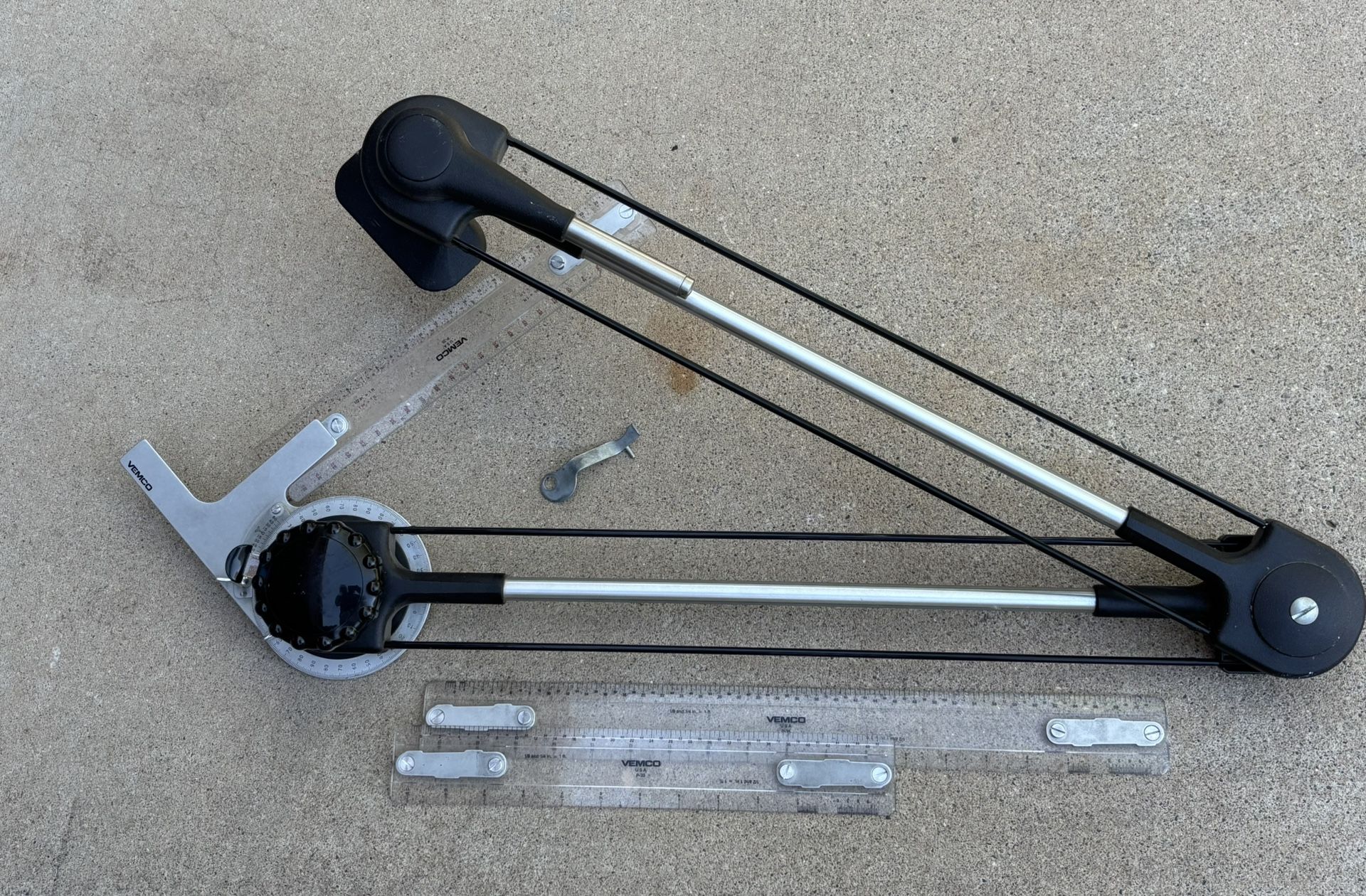

For those still interested in technical hand drawing, this machine is a wonder. What a huge advancement over T-squares & parallel bars. It has the capability of working on oversized drawings all the way down to small pages. While it provides the general orthographic functions of horizontal & vertical, it has the ability to set any reference angle (eliminating the need to reposition paper). It is so much more efficient and faster than bars and triangles. The arm sections are 24”, providing a reach of nearly 48” + the length of the drawing rulers (+ 18”). There are two rulers for the vertical & horizontal components. Both are architectural scales ( and can be swapped to either direction. By virtue of their gradations, the machine combines the horizontal & verticals, 360* of angles and measuring scales without having o use multiple tools. With a click of a button & a swing of the arm, you can draw an almost anything. The unit attaches with a desktop clamp and can swing out of the way. The spring tension allows it to be used on a flat surface or angled surface. It’s small size when swung to the side makes it perfect for the double-duty desk worktop. The machine is a great way for a contractor, designer, remodeler to work small-to-larger solutions by hand with a minimum of tools. (This one has been used on shopping mall projects to kitchen remodels and everything in-between. Enjoy the satisfaction of hand drawing & the accuracy of professional tools.

Condition

Used (normal wear)
