$300

Hayward Self Priming Pool Pump LE40014 w/ 1HP Motor Century SP1610-Z-1-BE

Posted 1 day ago in Long Beach, CA

Listed in categories:

Sold by

Jackson (see other items)

Jackson (see other items)

Joined Aug 2020

|

(158) offer up reviews

Chat securely on the app

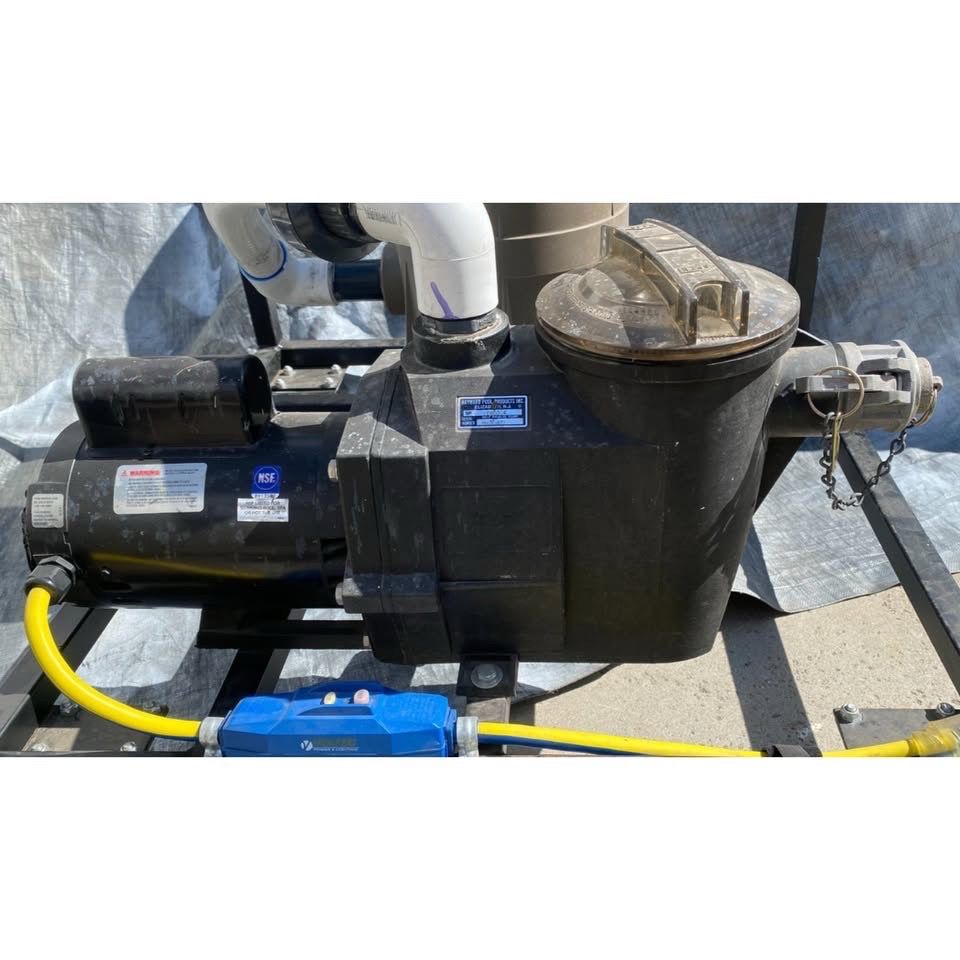

Hayward Self Priming Pool Pump LE40014 w/ 1HP Motor Century SP1610-Z-1-BE

Additional images

Description

Hayward Self Priming Pool Pump LE40014 w/ 1HP Motor Century SP1610-Z-1-BE This motor is a 1 HP replacement pump motor commonly used on pool and spa pumps with a 56J frame Also available for purchase with Hayward StarClear C1200 Filter Assembly mounted in a rolling frame (see final photo), contact us if interested in full setup. Specifications Model: SP1610-Z-1-BE Manufacturer: Magnetek / Century (Regal Beloit) Series: Centurion ---------------------------------------- GENERAL SPECIFICATIONS * Horsepower (HP): 1.0 * Service Factor (SF): 1.40 * Total HP (SFHP): 1.4 * Frame: X56J * Type: CX * Speed (RPM): 3450 * Frequency: 60 Hz * Phase: 1 (Single Phase) * Duty: Continuous ---------------------------------------- ELECTRICAL RATINGS * Voltage: 208–230V / 115V (dual voltage) * Amperage Draw: * 6.4–5.9 A (at 230V) * 11.8 A (at 115V) * Wiring: Convertible for high or low voltage * Service Factor Amps (SFA): Matches above amp ratings * Insulation Class: B * Thermal Protection: Automatic (Thermally Protected) ---------------------------------------- CONSTRUCTION * Enclosure: Drip Proof (DP) * Mounting: 1081 Pool Pump Duty, Horizontal Mount (Vent Holes Down) * Rotation: Non-Reversible * Ambient Temperature Rating: 50 °C * Use Copper Conductors Only CONDITION This item is in good working condition and has been tested. See photos for cosmetic details INCLUDES -Magnetek Century Centurion Motor SP1610-Z-1-BE -Hayward Self Priming Pump LE40014

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

Used (normal wear)
