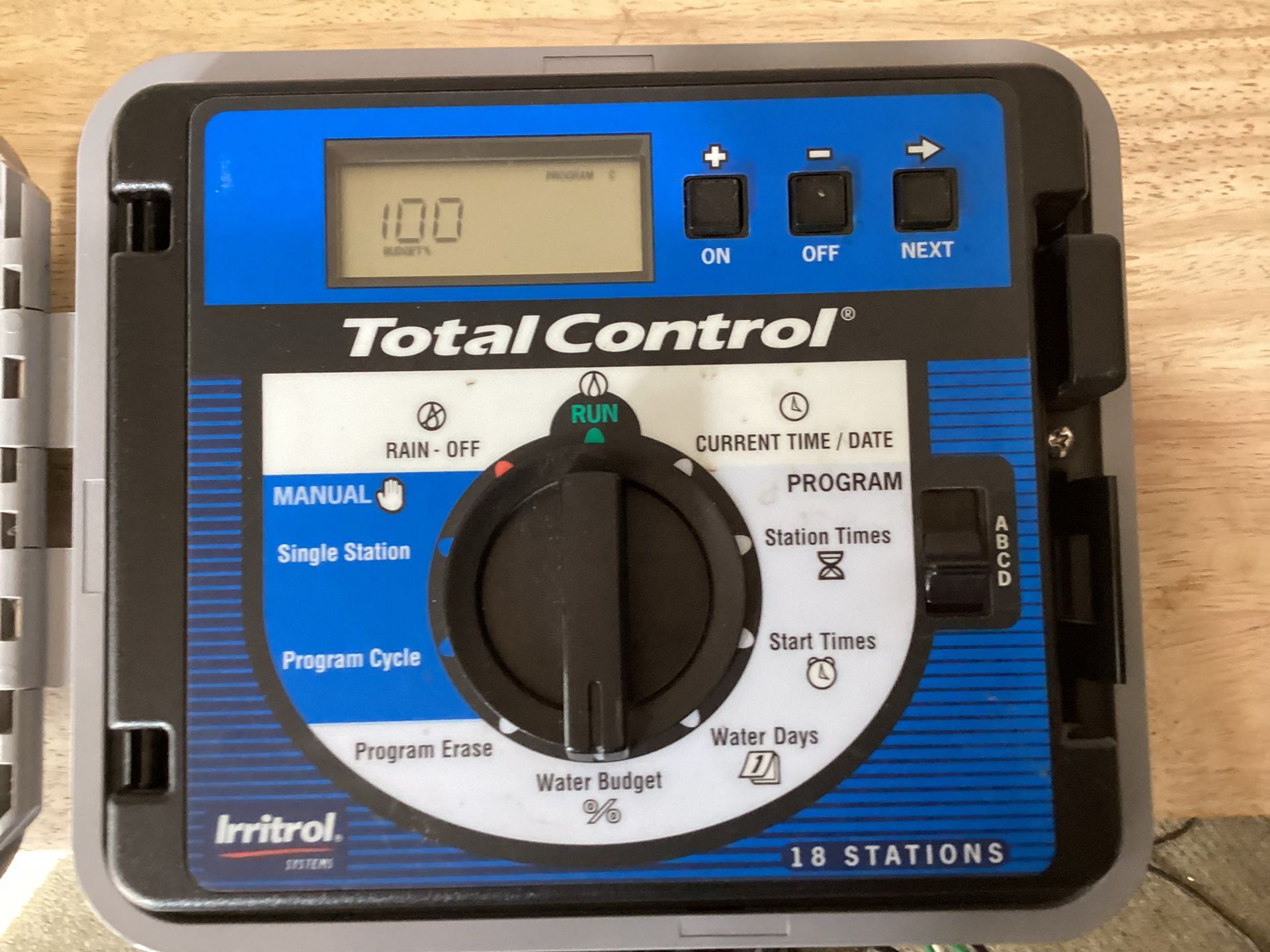

The device shown in the image is an Irritrol Total Control 18-station irrigation controller. This controller is designed for managing sprinkler system

The Irritrol Total Control controller offers various features and programming options, including: Programs: It has four independent programs (A, B, C, D) that can operate concurrently. Scheduling: The watering schedule can be set for specific weekdays, odd/even days, or at an interval of 1 to 30 days. The 365-day calendar automatically adjusts for leap years. Start Times: There are 16 total start times that can be assigned to any program. Station Run Times: Watering durations can be adjusted from one minute to 10 hours in one-minute increments. Water Budget: The "Water Budget %" feature allows users to adjust watering durations for a program from 0% to 200% in 10% increments to save water or accommodate seasonal changes. Power Outage Protection: The controller has a non-volatile memory to retain program information for up to 30 years without power and uses a 9-volt alkaline battery for backup to maintain the time and date during a power failure for over 2,000 continuous hours. Other Features: It includes a rain sensor connection with a bypass switch, a self-diagnostic circuit breaker, and a programmable rain delay for up to seven days. Newer "R" models are also remote-ready and compatible with Irritrol's Climate Logic and SMRT Logic systems for weather-based and remote control.

Condition

Used (normal wear)

Material

Plastic

Type

120v with 9v battery backup

Brand

Irritrol
