Craftsman “100” ball bearing Wood Lathe, bench, weighted rolling base

Power Source

Corded electric

Type

Lathe

Brand

Craftsman

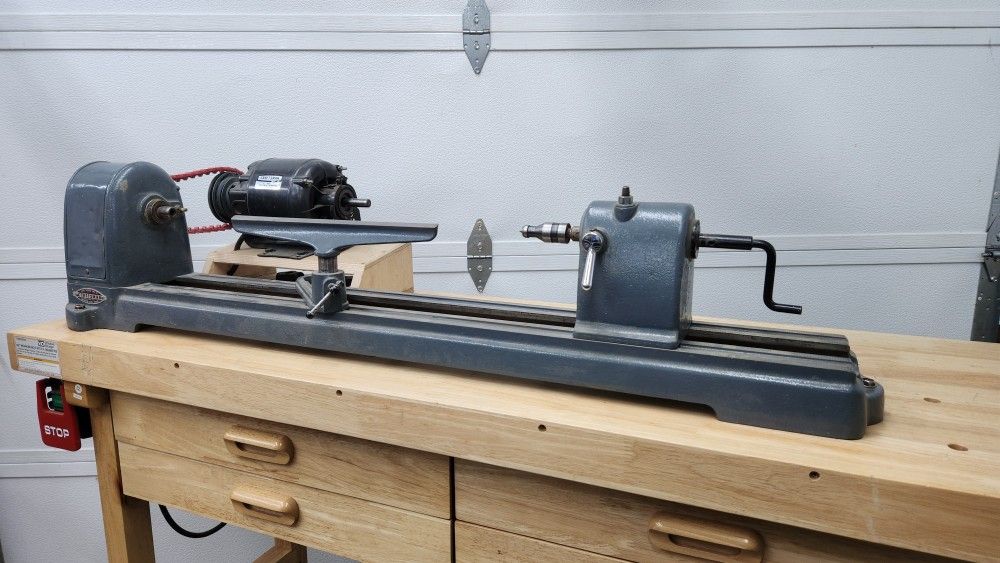

Heavy duty cast iron Craftsman “100” ball bearing Wood Lathe; 9 Inch by 30 Inch; Model 103.23870; Manufactured in ~1950. Comes with factory tool rest and . Great condition, needs nothing, ready to use immediately. Newer single phase ball bearing 1/2hp (.5hp), 1750rpm Craftsman motor (model 113.12120) can be run from any house, garage, or shop outlet. Custom motor mount/base makes it easy to change spindle speeds. Lathe is mounted on 60" woodworking bench with four drawers, a woodworking vise, and has been reinforced to prevent wobbling. Bench is bolted to a weighted rolling base with locking casters. The weighted base improves tool stability when in use; the locking casters and narrow footprint make it easy to move around without taking up too much floor space. It weighs about 300 pounds as pictured. (The wood lathe weighs ~80lbs; the bench ~100lbs; the base ~100lbs.) Lathe, workbench, and base can be separated for sale and or transport. Additional info from Craftsman’s 1950 Power Tools catalogue: • 9 inch swing, 30 inches between centers, 46.75 inch bed. By far our finest production-type. Extra-heavy-duty construction throughout. • Heavy cast iron construction reduces vibration. Even under heavy cuts or high speeds this lathe operates with exceptional smoothness and accuracy. Sturdy. well braced bed. Three-point bed mounting helps eliminate twist and strain. • Two sets of precision radial thrust ball bearings are double-shielded and lubricated for life. Provides almost limitless service. Protected against grit and dirt. Assure longer life, greater accuracy. • No. 1 Morse taper in both and tailstock. Easy to use with work arbor, drill chuck, etc. End cover removable. ¾ incy x 16 left hand thread headstock spindle permits outboard turning of lager diameter work without reversing motor. Has indexing pin for use in fluting. May be driven from rear or below. • Complete with tool rest, spur and cup centers, wrench (for both tool-rest slide and tailstock), 4-inch 4-step machine pulley. 1/2" x 44” v-belt. Rust resisting gray enamel finish. Chromium plated hand wheels and headstock spindle cover. SPECIFICATIONS • Spindle: 3/4 inch x 16 right hand thread inboard end; No. 1 Morse female taper; 3/4 inch x 16 left hand thread, outboard. • Spindle speeds (four): 875, 1350, 2250 and 3450 R. P.M. • Tailstock taper: No 1 Morse, female • Tailstock ram travel: 2-3/4 inches • Motor recommended (minimum): 1/3hp, 1750rpm • Overall dimensions: Height 10-1/4 inches; width 8-5/8 inches; length 50-1/8 inches. • Shipping weight (no motor): 81 pounds See also: User manual from similar model (103.23180): https://offerup.com/redirect/?o=aHR0cDovL3d3dy52aW50YWdlbWFjaGluZXJ5Lm9yZy9wdWJzL2RldGFpbC5hc3B4P2lkPTg1Ng== User manual from similar model (103.23070): https://offerup.com/redirect/?o=aHR0cDovL3d3dy52aW50YWdlbWFjaGluZXJ5Lm9yZy9wdWJzL2RldGFpbC5hc3B4P2lkPTE1ODY= 1950 Craftsman Power Tools catalogue: https://offerup.com/redirect/?o=aHR0cDovL3d3dy52aW50YWdlbWFjaGluZXJ5Lm9yZy9wdWJzL2RldGFpbC5hc3B4P2lkPTI5NTg=
