CAROL BRAND General Cable RG6COAX 1000ft Carton (C5775.31.01)

Type

RG6 coax cable

Brand

General Cable

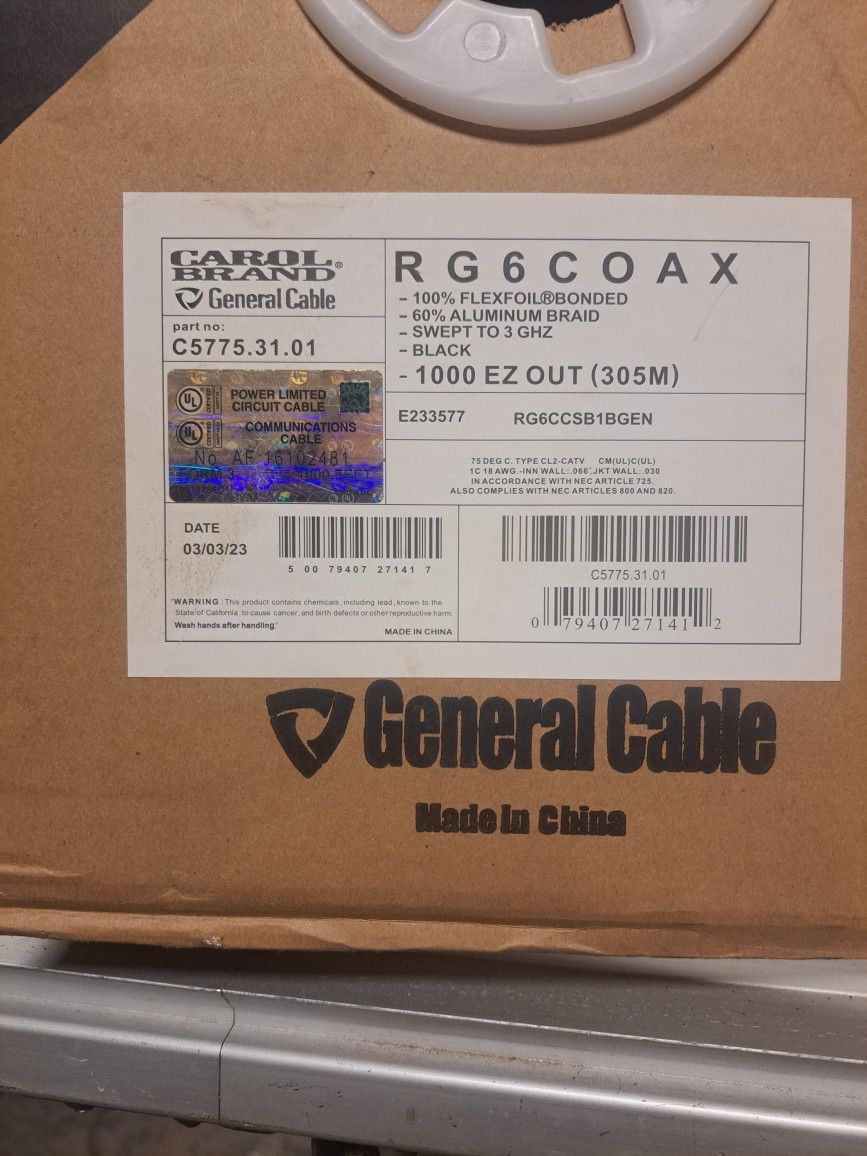

For sale is a carton of RG6COAX cable, made by General Cable (Carol Brand). Part number C5775.31.01. Full 1000' carton, outside cardboard carton is damaged slightly. Speciation below: Application Suitable for RF signal transmission MATV CATV HDTV Digital video Drop cable FM broadcast Attenuation 0.26 to 11.79 Brand Name General Cable Capacitance 16.2 Category Coaxial and Triax Cable Color Black Conductor Material Solid copper-clad steel Conductor Size 18 AWG Country of Origin USA Frequency Rating 1 to 3000 Impedance 75 Insulation Material Foam PE Jacket Material PVC Number Of Conductors 1 Resistance 28.9 Special Features 0.18 in insulation 1 MHz at 0.26 dB/100 ft, 10 MHz at 0.81 dB/100 ft, 50 MHz at 1.46 dB/100 ft, 100 MHz at 2.05 dB/100 ft, 200 MHz at 2.83 dB/100 ft, 500 MHz at 4.53 dB/100 ft, 1000 MHz at 6.59 dB/100 ft, 1450 MHz at 8.1 dB/100 ft, 1800 MHz at 8.8 dB/100 ft, 2200 MHz at 10.1 dB/100 ft, 3000 MHz at 11.79 dB/100 ft attenuation 100% Flexfoil® bonded 60% aluminum braid 9 Ohm/mft shield coverage nominal DCR 83% velocity of propagation Bare copper or aluminum braid shield Copper per ASTM B-3 and copper clad steel per ASTM B-869 conductors Foam polyethylene (PE) insulation/core
