Dilly Hobie Cat / Kayak Trailer

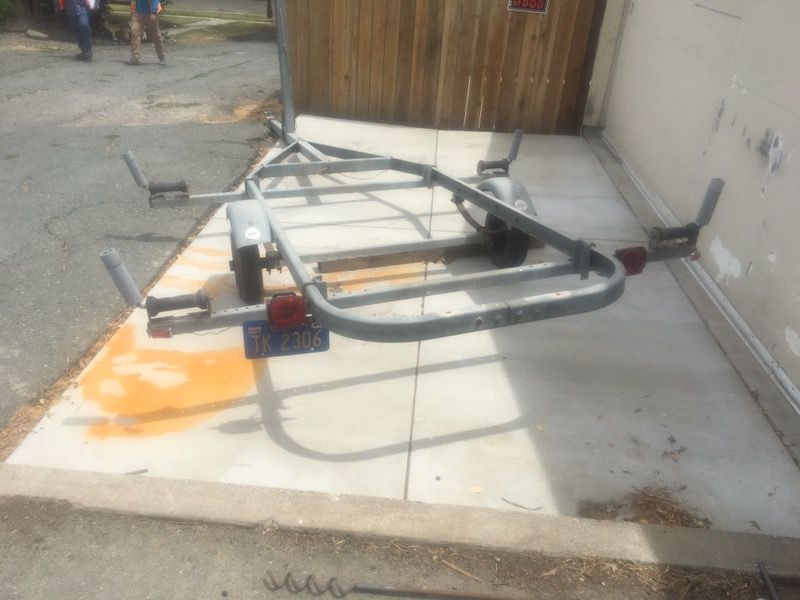

Dilly 1984 or 1985 Trailer used originally to haul a Hobie Cat Trailer. This trailer is used currently to haul my kayaks around. It works greate, for how old it is, I would give it a 8 out of 10. Just a little bit of rust yon some bolts but the trailer is galvanized steel so it should not rust. The lights work, ball hitch works, everything works great. Fits these Kayaks easily: 10-10.5' x 28" 18' x 22"? 16' 14' Trailer dimensions: Frame across width: 4' Brackets thickness: 2" Bracket holes from center: 1-5/8" Brackets width: 101" or 8.41" Length: 18' to 17' Frame material length: 3" Frame material width: 1"-5/8" Axle: 2" 17" width on holes on front brace bar potentially for tool box 3'1" length of front brace bar Tongue depth x height = 3" square tube Tongue length = 6' Wheels: 4 lug 9" diameter 4.80-8 trans master Typical axle capacity based on axle diameter: 1-1/2" diameter to 1-3/4" diameter = 1,000 to 2,000 lbs Has either an 1-7/8" ball or 2" ball receiver, I'll have to double check which one but I think it's an 1-7/8".
