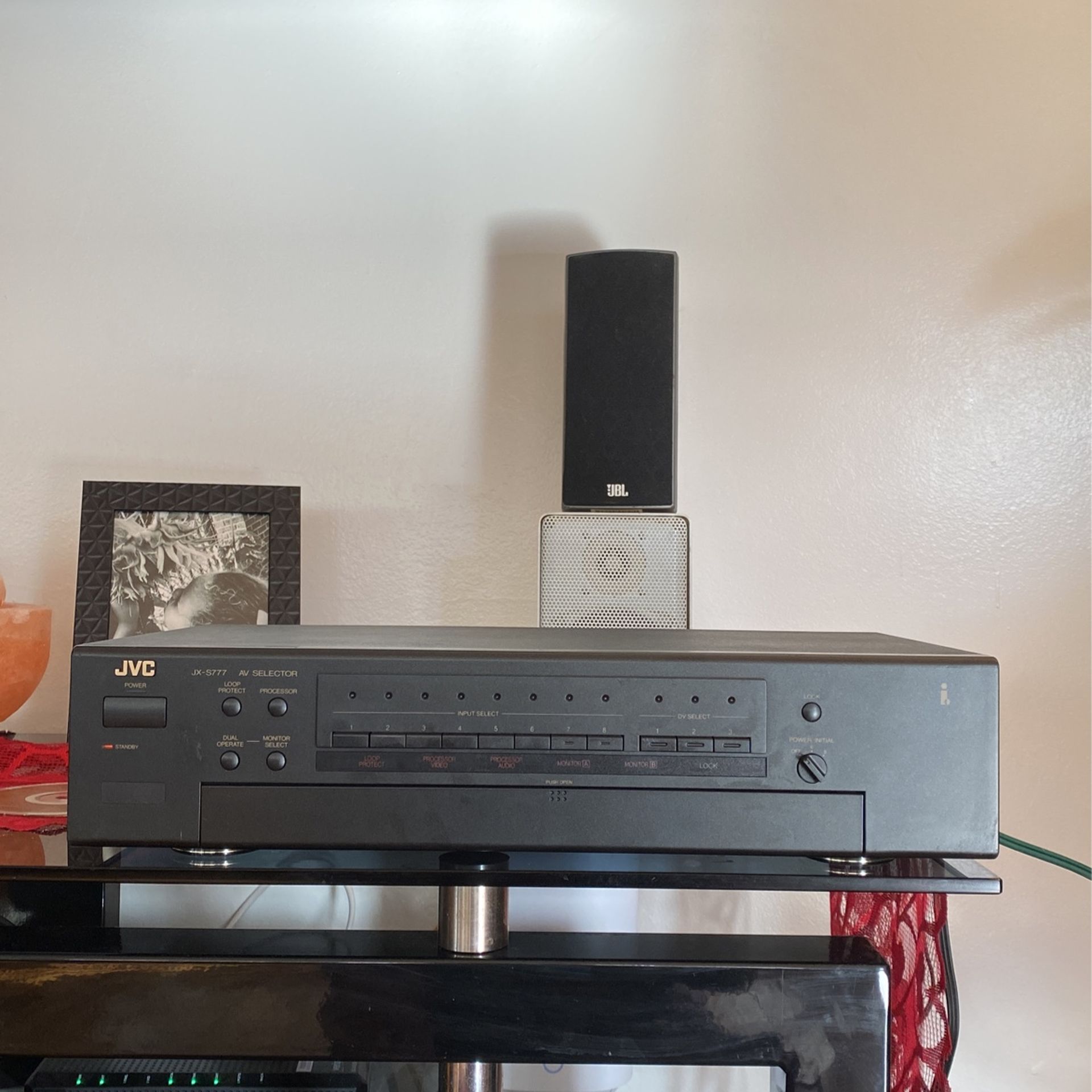

JVC JX-S777 Audio Video AV Selector- Multi Function Switcher

Model

JX-S777

Brand

JVC

Playable Media

AV SELECTOR

JVC JX-S777 Audio Video AV Selector - Loop Protect, Processor, Monitor Selection 8 Inputs The JX-S777 is the first video switcher with full digital video, component video and digital audio connections. This professional quality switcher uses the highest quality circuitry for no signal loss at any point. It features 8 A/V Inputs, 5 A/V Outputs, 2 Component Video Inputs with Digital Audio, 1 Component Video Output with Digital Audio and 3 i-Link (fire wire) digital video input/output connections. • Component Video Output with Digital Audio and 3 i-Link (fire wire) digital video input/output connections. • AV INPUT: 8 lines ( S-Video, Video, Audio L/R) • AV Output: 5 lines (S-Video, Video, Audio L/R) • Component input: 2 lines • Monitor output: 2 lines • DV input/outputs: 3 • Optical inputs: 2 • Optical output: 1 • Processor in/out: 1 line • Video S/N ratio: 50 dB • Audio Reference input level: -10 dBV, 47k ohms • Maximum Audio input level: +6 dBV 1kHz • Audio S/N ratio: 80 dB • Audio Output level: -10 dBV • Audio S/N ratio: 80 dB or more • Audio Frequency Response: 5-50 kHz • Audio Total Harmonic Distortion: 0.01% • Remote control • Video Signal Format: NTSC
