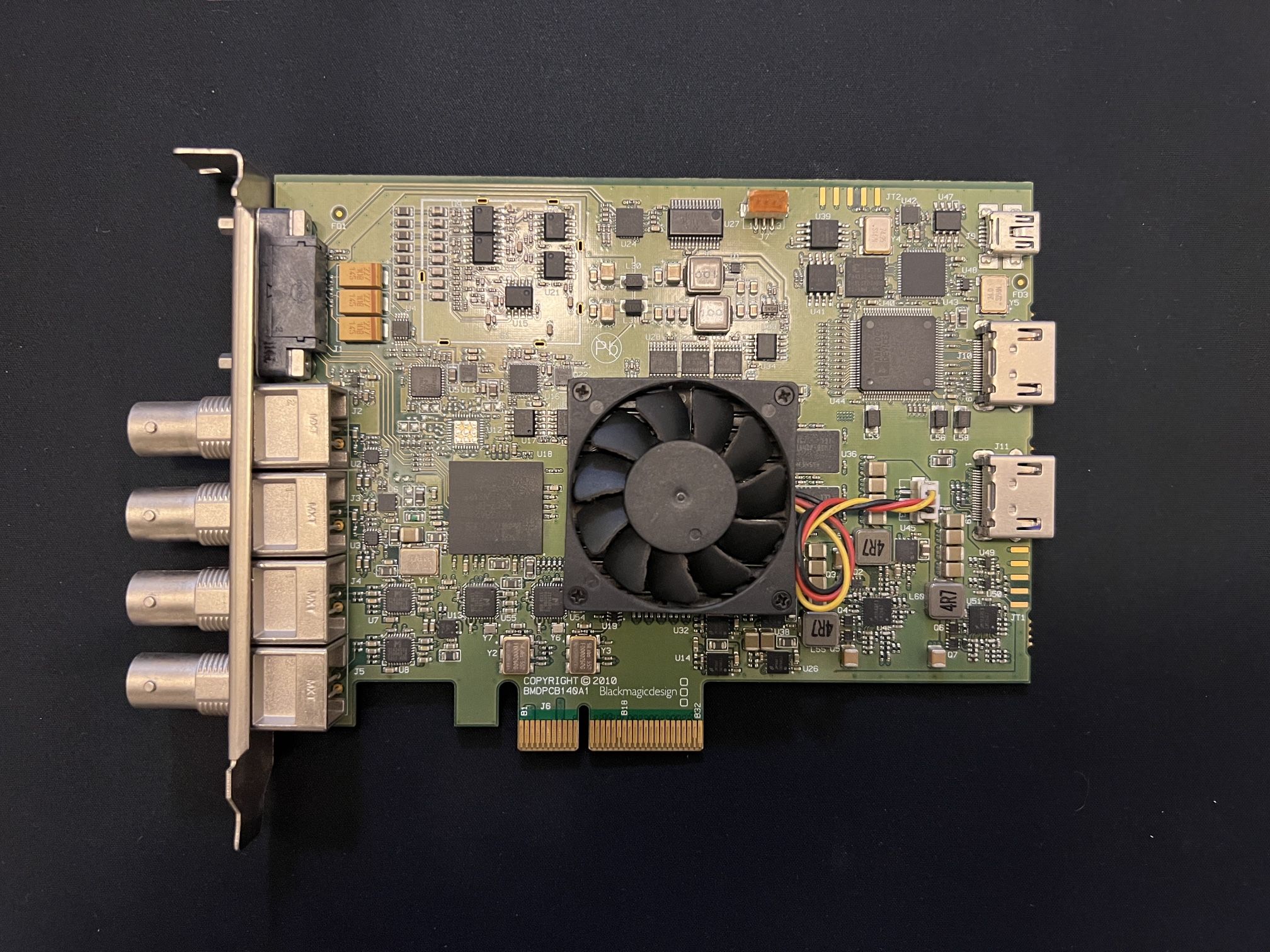

Blackmagic Decklink HD Extreme 3D+

Type

Interface/Add-on card

Brand

Blackmagic Design

Blackmagic Design DeckLink HD Extreme 3D offers a perfect solution for post-production offering SDI, HDMI, component analogue, NTSC/PAL and S-Video connectivity, while instantly switching between SD, HD and 2K! You can capture and playback virtually any video or audio device - and now even in 3D! DeckLink Extreme HD 3D has built-in 3Gb/s SDI, 4:2:2 and 4:4:4 RGB, native 12-bit and frame rates up to 1080p60. DeckLink HD Extreme 3D includes HDMI 1.4 technology allowing you to keep your 3D video in full resolution whilst keeping left and right eye video frames separate. As HDMI 1.4 is a massive improvement over the previous generation of HDMI it allows DeckLink HD Extreme 3D does support half-resolution side by side, line by line or top and bottom 3D transfer methods - intelligently detecting and adapting as needed. Support for both interleaved and dual stream 3D capture and playback means you can edit 3D in your preferred NLE software. Connections SDI Video Input 2 x 10-bit SD/HD/2K and 2D/3D switchable.Supports 3 Gb/s single link 4:2:2/4:4:4 and dual link 4:2:2/4:4:4. SDI Video Output 2 x 10-bit SD/HD/2K and 2D/3D switchable.Supports 3 Gb/s single link 4:2:2/4:4:4 and dual link 4:2:2/4:4:4. Analog Video Input 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD. Analog Video Output 1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD. HDMI Video Input 1 x HDMI type A connector HDMI Video Output 1 x HDMI type A connector SDI Audio Input 16 Channels embedded in SD, HD and 2K. SDI Audio Output 16 Channels embedded in SD, HD and 2K. Analog Audio Input 2 Channels of professional balanced analog audio via XLR connectors. Analog Audio Output 2 Channels of professional balanced analog audio via XLR connectors. HDMI Audio Input 8 Channels embedded in SD and HD. HDMI Audio Output 8 Channels embedded in SD and HD. AES/EBU Audio Input 2 Channels unbalanced with sample rate converter. AES/EBU Audio Output 2 Channels unbalanced. Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD or 2K format. Device Control Sony compatible RS422 deck control ports. Computer Interface PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots. Standards 2K Format Support 2048 x 1556PsF23.98, 2048 x 1556PsF24, 2048 x 1556PsF25, 2048 x 1556p23.98, 2048 x 1556p24 and 2048 x 1556p25. HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60. SD Format Support 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC and 480p. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601. Multiple Rate support SDI, HDMI and component analog video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI. Video Sampling 4:2:2 and 4:4:4 Color Precision 10 bit Color Space 4:2:2 YUV and 4:4:4 RGB Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Configuration HDMI automatically configures to connected display. HDMI Resolution Pixel for pixel HD resolution input to connected device. HDMI Color Precision 10 bit Copy Protection For legal reasons HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. Processing Colour Conversion Hardware based real time. HD Down Conversion Built in, high quality hardware down converter outputs HD-SDI on SDI A output, SD-SDI on SDI B output and Composite and S-Video when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3. HD Up Conversion Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog. Cross Conversion Built-in, high quality hardware cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback. 3D Processing Dual stream SDI capture & playback. Real Time Effects Apple Final Cut Pro internal effects in DV, DVCPRO HD, ProRes and uncompressed on Intel Mac OS X. Adobe Premiere Pro internal effects in DV, DVCPRO HD, MJPEG and uncompressed. Refer to Black Magic Website for any additional info.
