Digital Multimeter

Brand

TENMA

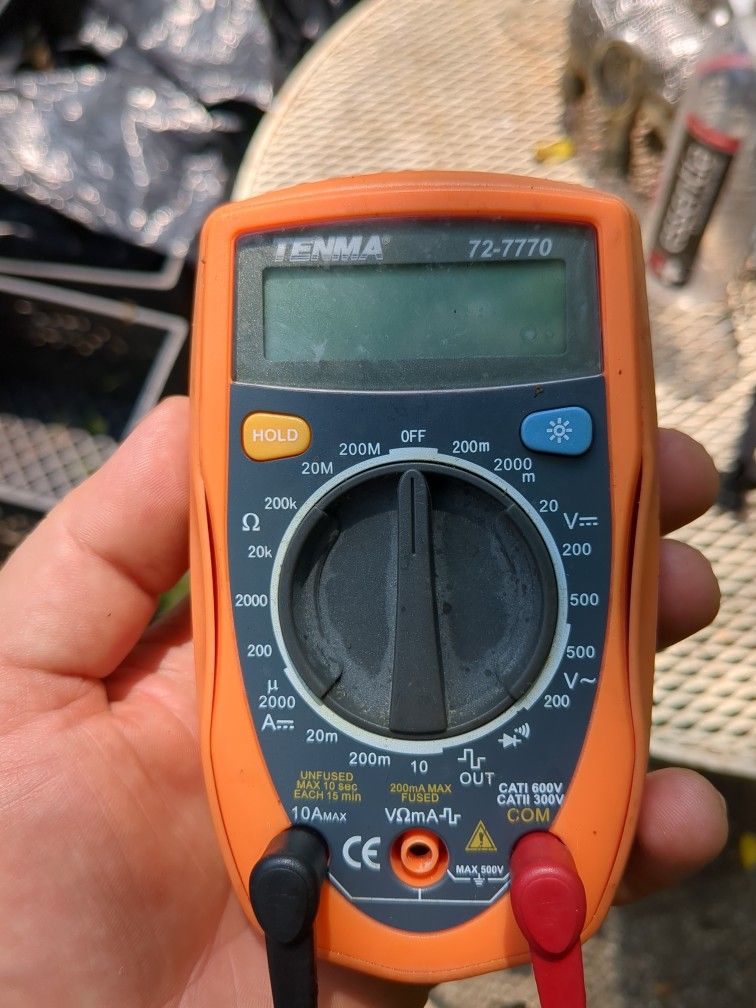

Manufacturer TENMA Manufacturer Part No 72-7770 CAL DU Newark Part No. 12AC8560 Technical Datasheet Data Sheet DMM Functions DC Current, AC/DC Voltage, Resistance No. of Digits 3.5 DMM Response Type Mean Value Display Count 1999 Range Selection Manual Voltage Measure DC Max 500V Voltage Measure AC Max 500V Current Measure DC Max 10A Current Measure AC Max - Resistance Measure Max 0.2Gohm Product Overview The 72-7770 CAL DU from Tenma is a palm sized digital multimeter with 3 3/4 digit LCD. It is 3 1/2digits with steady operations, fashionable design and highly reliable hand held measuring instrument. The meter measures AC/DC voltage, AC/DC current, resistance, temperature, diode and continuity. It is an ideal tool for maintenance. The multimeter features square wave output, data hold, low battery indicator and display backlight, This meter complies with the standards CE, IEC61010, in pollution degree 2, overvoltage category (CAT I 600V, CAT II 300V) and double insulation. Calibrated with data and uncertainties palm sized digital multimeter 1999 count, 48mm x 16mm size LCD size 200mV, 2000mV, 20V, 200V, 500V DC voltage range ((±0.5% + 2) accuracy) 200V, 500V AC voltage range ((±1.2% + 10) accuracy) 2000µA, 20mA, 200mA, 10A DC current range ((±1% + 2) accuracy) 200 ohm, 2000 ohm, 20Kohm, 200Kohm, 20Mohm, 200Mohm resistance range ((±0.8% + 2) accuracy) 10Mohm input impedance for DCV Weight is 156g and dimension is 130mm x 73.5mm x 35mm
