JBL Control 29AV 8" Indoor/Outdoor Commercial 70v Speaker 4 Restaurant/Bar/Cafe

Model

Control 29 AV

Brand

JBL

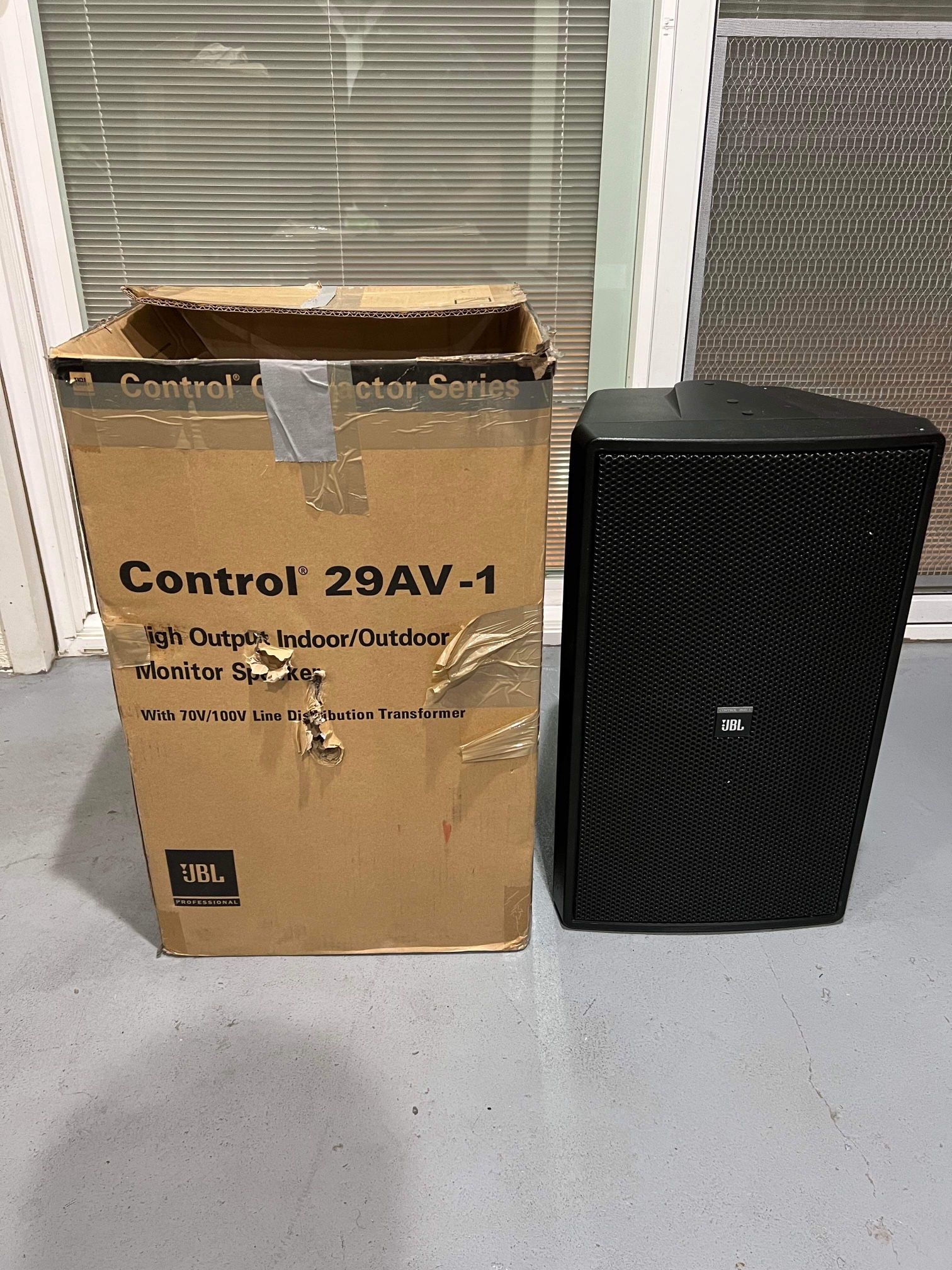

Hello I have here is a JBL Control 29AV 8" Indoor/Outdoor Commercial 70v Speaker 4 Restaurant/Bar/Cafe with the box, condition is used, does have scuffs and scratches but has been tested and works good, PLEASE SERIOUS BUYERS AND FAIR OFFERS ONLY! SPECIFICATION Passive Design, Magnetic Shielding 8" Woofer, 1" HF Driver, Rotatable Horn 300W Continuous Program Power Capacity For 70V/100V or 8-Ohm Power Amplifiers Low-Saturation 110W Transformer 43 Hz to 15 kHz Frequency Response SonicGuard Overload Protection Screw-Down Terminal Strip The black JBL Control 29AV-1 is a passive 8" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 110W transformer allows the Control 29AV-1 to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 29AV-1 is equipped with a durable 8" Kevlar-cone woofer and a 1" titanium-diaphragm compression driver, yielding a frequency response of 43 Hz to 15 kHz, and a continuous program power capacity of 300W. With a rotatable horn, the loudspeaker supports positioning for horizontal or vertical orientation. The built-in crossover network ensures proper frequency distribution to the speaker components as well as smooth tone. SonicGuard circuitry protects against damage incurred through overloading without compromising sound quality. The screw-down terminal strip enables simple wiring, and utilizes nickel/zinc terminals for enhanced resistance to rust. The supplied InvisiBall mounting system and input panel cover contributes to ease of installation. Thanks to judicious magnetic shielding, the Control 29AV-1 may be placed as close as 9" to video monitors. High-impact polystyrene enclosure with moderate magnetic shielding for positioning as close as 9" to video monitors Included InvisiBall mounting system is simple to install, aims easily, and provides a high degree of theft deterrence 110° x 85° high-frequency coverage with a rotatable horn Low-saturation 110W transformer with low insertion loss enables use with 70V/100V constant-voltage systems, and offers a bypass position for use in an 8-Ohm setup 300W continuous program power handling Durable 8" woofer with Kevlar cone and pure butyl surround 1" compression driver with pure titanium diaphragm and diamond surround 43 Hz to 15 kHz frequency response (± 3 dB), 37 Hz to 18 kHz frequency range (-10 dB) Crossover network with 18 dB/octave high-pass filter and 12 dB/octave low-pass filter Screw-down terminal strip—with zinc-plated copper base and nickel-plated metal screws/washers—accepts up to 9mm outside and 4mm inside open lug (#6, #8 or #10), plus bare wire (up to 12 AWG) Aurally transparent SonicGuard circuitry features full-range power limiting to protect network and transducers, plus an internal fuse to protect during exceptional overload conditions
