Precision Power/PPI PC360.2

Model

PC360.2

Type

Car audio amplifier

Brand

Precision Power/PPI

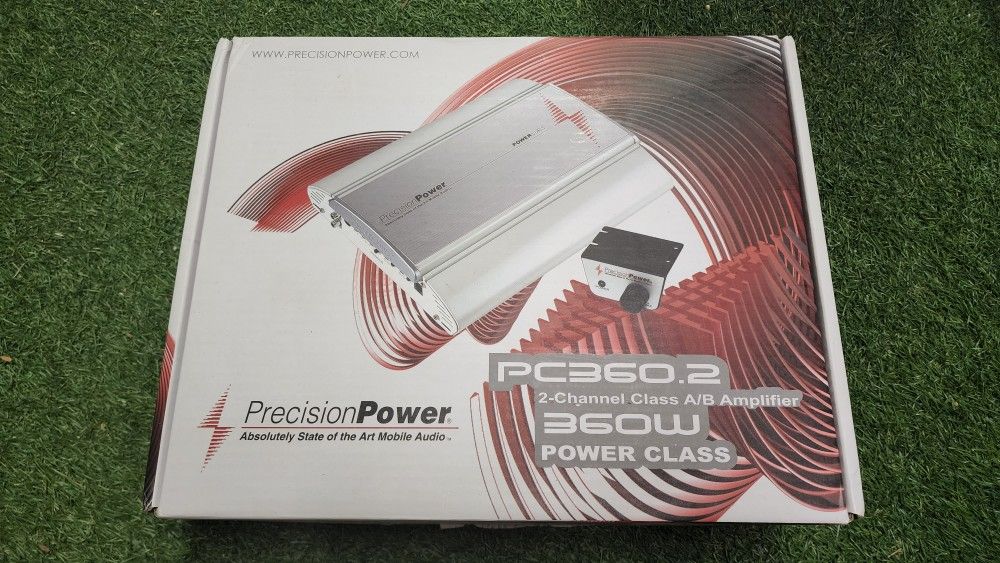

Precision Power PC360.2. Brand new in the box. Never been installed or powered up. Specs: Power Class Series 2-Channel Class A/B Car Amplifier RMS Power Rating: 4 ohms: 110 watts x 2 chan. 2 ohms: 180 watts x 2 chan. Bridged, 4 ohms: 360 watts x 1 chan. Individually regulated preamp/crossover power supplies ensure signal purity Low ESR capacitance banks compensate power supply ripple currents Extra low current drive stage increases efficiency and sound clarity Large TO218 MOSFET Transistors Full signal path low noise/distortion circuitry topology Wired remote bass level control included LED power (green) and protect (red) indicators Variable Bass Boost (0 to +12 dB bass boost at 30-90 Hz) 2/1 channel operation Differential drives divide pre-amp and power-amp stages, eliminating ground looping Close tolerance signal path components - 1% resistors and 5% capacitors Sequenced delays eliminate residual power-up/power-down pops Differential RCA inputs isolate 12V/audio to ground Triple Darlington audio output stages 2 Oz. Copper traces transfer high volume internal current 3-Way System Protection circuitry (thermal, overload, and speaker short protection) Separate capacitor charging/discharging current paths prevent rail switching spikes and ground traces from entering signal stages Heavy duty aluminum alloy heatsink for extreme heat dissipation Nickel-plated RCA level inputs Gold-plated screw terminals Input sensitivity: Level: 200mV-9V Variable high-pass filter (15-4,000 Hz, 12 dB/octave) Variable low-pass filter (50-4,000 Hz, 12 dB/octave) Damping factor (100Hz @ 4 Ohms): >3000 Frequency response: 15-50,000 Hz Dimensions: 12-1/8"L x 10"W x 2-5/16"H 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
