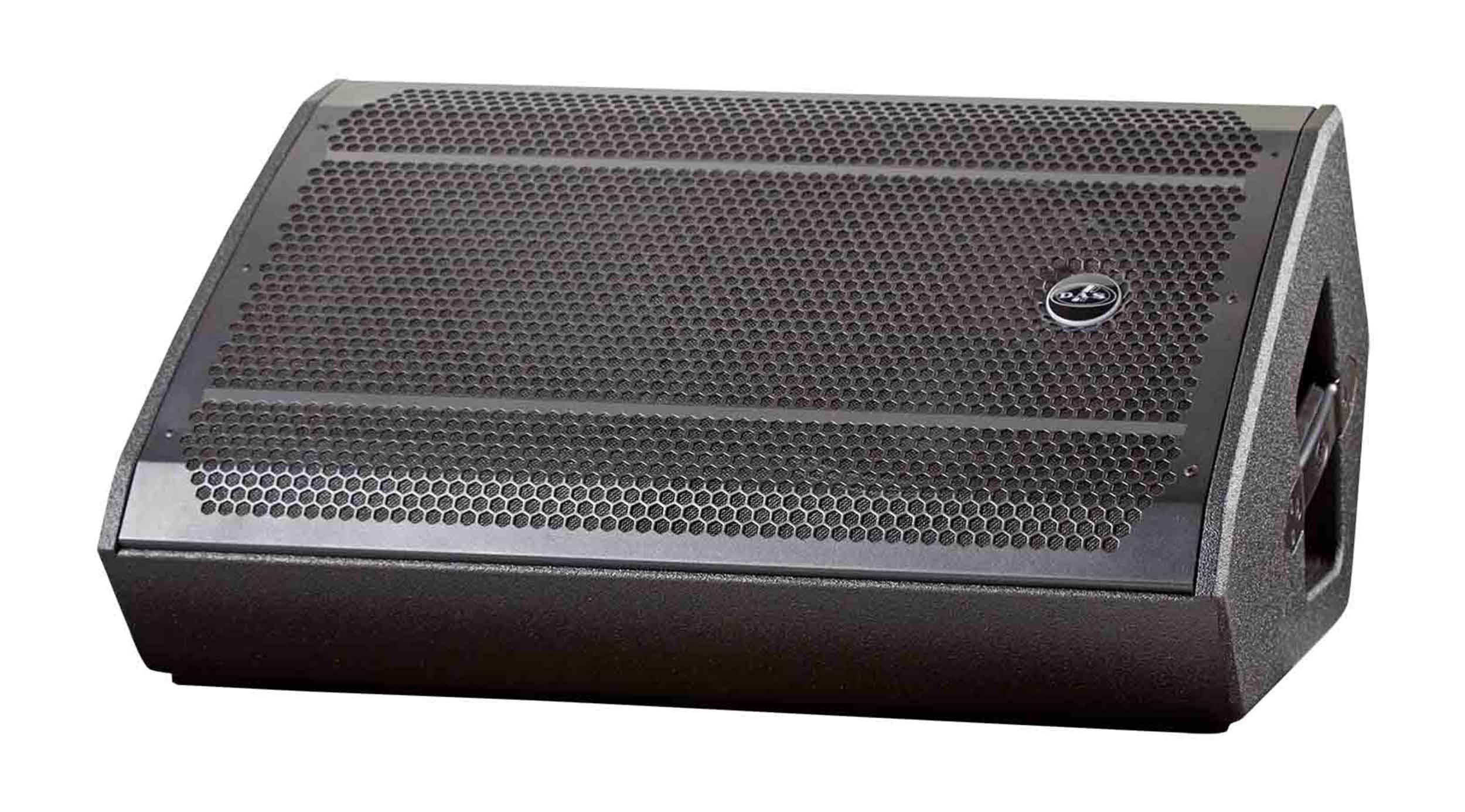

DAS Audio ACTION-M512A Two-Way 12" 1000W Powered Stage Monitor Speaker

The ACTION-M512A is an active stage monitor designed to deliver a highly versatile solution, from fixed installations to the popular portable monitor application. Its rotatable horn with 80º x 50º dispersion means the enclosure can also be used as a PA.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.

The system has a 12MI4 speaker for low frequencies and an M-34 compression driver for high frequencies which, together with the 1000 W peak Class D amplifier, deliver outstanding performance. The DAScontrol interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

Product Specifications:

Frequency Range (-10 dB): 60 Hz – 20 kHz

Horizontal Coverage (-6 dB): 80º

Vertical Coverage: 50º

Maximum Peak SPL at 1 m: 130 dB

Nominal Amplifier Power (continuous): 500 W

Nominal Amplifier Power (peak): 1000 W

Input Type: Balanced

Input Impedance: 20 kOhms

Input Sensitivity: 1.95 V (+8 dBu)

Audio Signal Input Connector: 2 x Female XLR

AUX Input: 1 x 3.5 mm Mini Jack

Audio Signal Loop Thru Connector: 2 x Male XLR

Control: DAS control

AC Output Connector: powerCON NAC3MPB

Current Draw 230 V / 115 V: 1.1 A/2.2 A

Enclosure Construction: Birch Plywood

Enclosure Geometry: Trapezoidal

Finish: ISO-flex Paint

Color: Black

Dimensions (H x W x D): 13,2 x 25,6 x 17,7 in"

Net Weight: 43,0 lbs

Components:

LF Driver: 12MI4

HF Driver: M-34

Horn/Waveguide: BC-85

Carton Dimensions (H x W x D): 15,1 x 29,4 x 19,8 in

Shipping Weight: 47,4 lbs
