Uni-Solar PVL-128 128W 24V Flexible Solar Panel Grid-Tie Solder Points UL LISTED

Brand

Uni-Solar

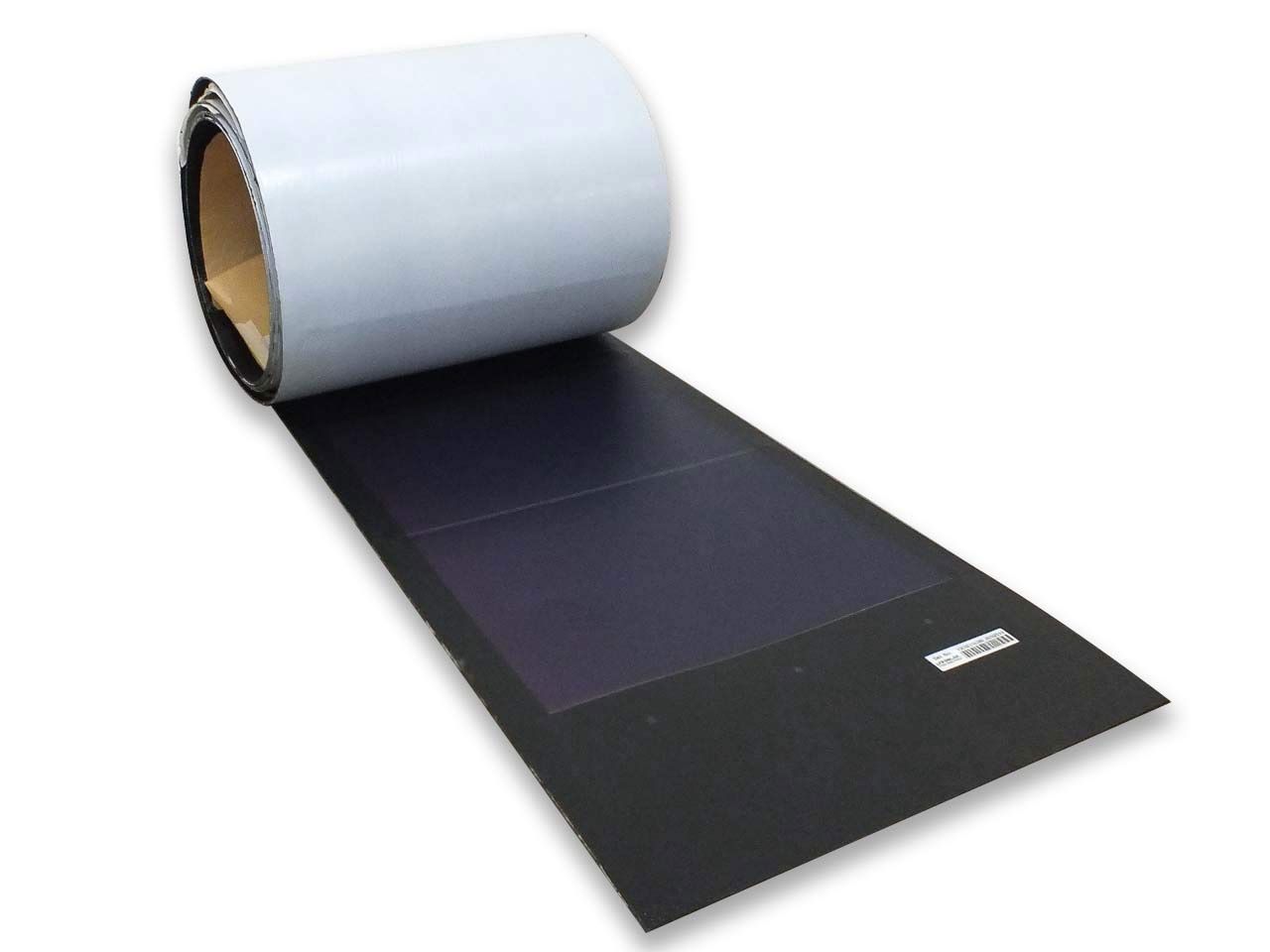

Uni-Solar PVL-128 128W 24-Volt Flexible Amorphous Solar Panel with Bottom Facing SOLDER POINTS. These are top tier finished panels. Unisolar made them this way for a specific client. These are also Grid Tie UL 1703 Listed for Systems up to 600 VDC. Which means they were made to last 20 Years. See brochure. Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. They are also Category 3 (130 MPH) Hurricane uplift resistant and installed with no hardware. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Electrical Stats: Maximum Power (Pmax): 128 Watts Nominal Operating Voltage: 24 Volts Max Power Voltage (Vmpp): 33 Volts Max Power Current (Impp): 3.88 Amps Open Circuit Voltage (Voc): 47.6 Volts Short Circuit Current (Isc): 4.8 Amps Physical Stats: Panel Dimensions (Feet): 18 long x 1.29 wide Panel Dimensions (Inches): 216 long x 15.5 wide x 0.2 thick Panel Weight: 16 Pounds Electrical Connectors: None: Solder Points on bottom of panel Features: Lightweight & Flexible Easy Peel & Stick Application Virtually Unbreakable (No Glass) Shadow & High Heat Tolerant Frame Material: Frameless Bonding adhesive factory-installed on the back of the laminate Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Here is a video with many examples. Condition: Open Box These brand new made in USA solar panels are packed and stored in the factory carton of 30 panels, but being sold as singles here. The Unisolar manufacturing and distribution facility was liquidated in 2012 and these panels came direct from Unisolar. We do have various brochures and installation guides produced by Unisolar available we can offer you if requested. Uni-solar peel and stick flexible panels are no longer made and are getting more rare by the day. See more at https://offerup.com/redirect/?o=UmVjeWNsZWRHb29kcy5jb20vc29sYXItcGFuZWxzLWNlbGxzLWFuZC1lcXVpcG1lbnQv
