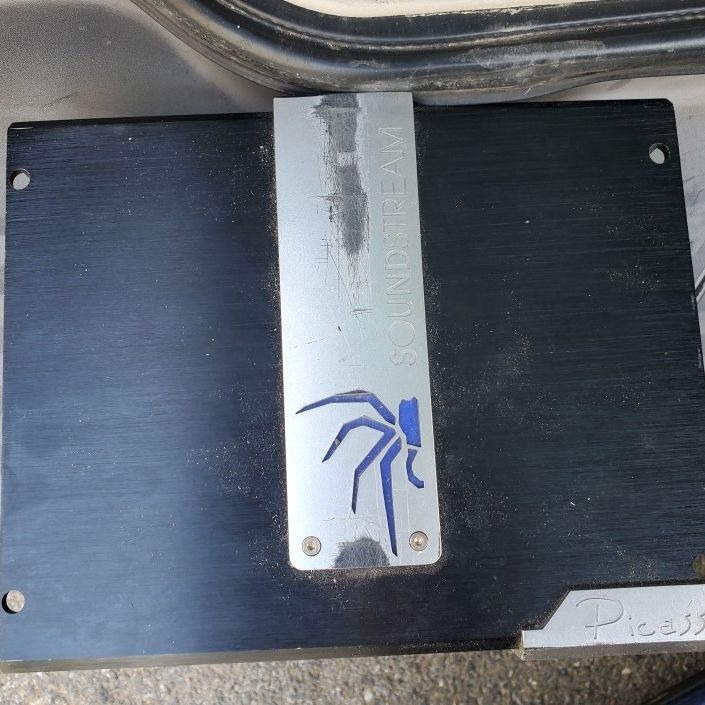

Soundstream PN1.600D 600W Monoblock Picasso Nano Class-D Amplifier

Features: Picasso Nano Series Monoblock Class D Car Amplifier Power Output: 4 ohms: 450 watts x 1 chan. 2 ohms: 600 watts x 1 chan. Max power output: 650 watts x 1 chan. Pulse Width Modulated MOSFET power supply Heavy duty aluminum heatsink Soft turn-on circuit Thermal and speaker short protection circuitry Dash mount remote bass level control included Variable Bass Boost (0 to +12 dB bass boost at 45 Hz) Mono channel operation Speaker-level (high-level) inputs Variable low-pass filter (35 - 250 Hz, 24 dB/octave) Subsonic filter (12 dB at 10 - 50 Hz) Dimensions: 4.75"W x 9"L x 2"H Specifications: Amplifier Series: Picasso-Nano (Soundstream) Marine Certified: No Amplifier Class: D Number of Channels: 1 - Mono Total RMS Power Output: 650 watts Maximum Input Gauge Size: 4 AWG Minimum Impedance Unbridged: 2 ohms Minimum Impedance Bridged: Not Bridgeable Speaker Level Inputs: Yes Preamp Outputs: No Built-in Crossover: Low-Pass (LP) Subsonic Low-Pass Crossover Frequency: 50 - 250 Hz Subsonic Filter: 10 - 50 Hz Bass Boost: 0 - 12 dB Strappable: No Fuse Rating: 25A x 2 Total Fuse Rating: 50 CEA-2006 Compliant: No Amp Bluetooth Connectivity: No Hi-Res Certified: No
