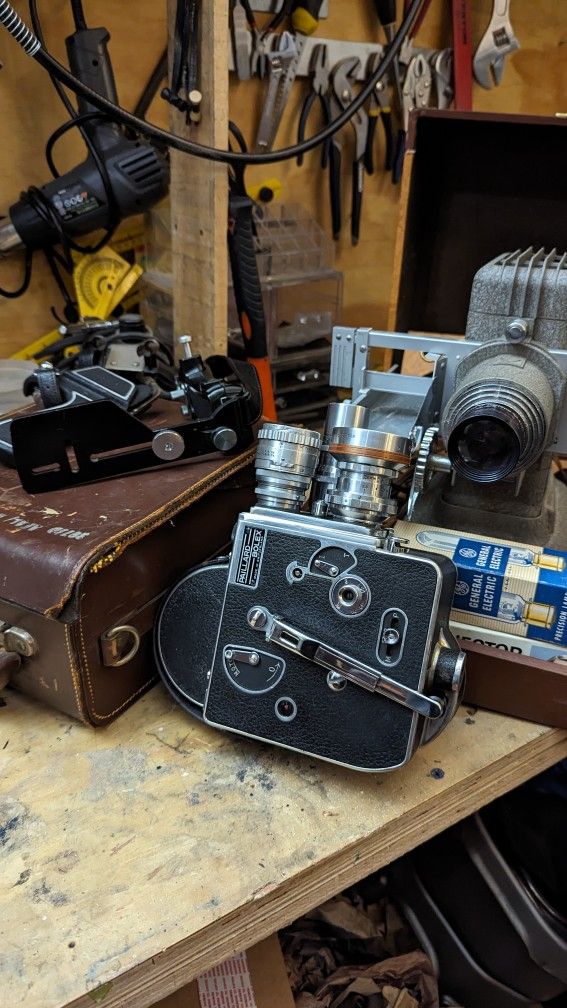

Vintage Bolex Film Camera Model H16 w/ Projector

1940 Bolex Model H16 Includes original leather case and lenses *Some lenses may need cleaning and minimal repair OVERALL DIMENSIONS: 8 1/2" x 6" x 3" WEIGHT: Approximately 5 1/2 lbs (without lenses) OUTER CASE: Highly polished duraluminium body, covered in genuine Morocco leather. Metal parts are chrome-plated. FILM CAPACITY: 100ft (30m) and 50ft (15m) daylight loading spools of 16mm film. THREADING: Automatic threading and loop forming. The end of the film is simply placed in a channel leading to the feed sprocket. The release is pressed and the film is then automatically threaded throughout the entire mechanism. MOTOR: Constant speed, spring motor mechanism; governor controlled. Large winding handle folds downward and attaches to camera when not in use. Spring cannot be over-wound. 8:1 external drive shaft permits the attachment of an electric motor. TURRET: Rotating turret accommodates three interchangeable C mount lenses. The top position allows for critical focusing through a groundglass screen on later versions of this model. VIEWFINDER: not included VARIABLE SPEED: 8, 16, 24, 32 and 64 frames per second with the ability to change speeds while the camera is running. RELEASE BUTTON: provides for the making of continuous exposures by a finger-tip release on the front of the camera. A side release allows for locked, hands-free running or single frame exposures. SHUTTER: 190 degree disc shutter, operates at 118/1000 of an inch from emulsion side of film with an exposure rate of 1/30 second at 16 fps. FOOTAGE COUNTER: adds and subtracts accurately in forward or reverse motion and automatically returns to zero when film is reloaded into the camera. AUDIBLE FOOTAGE INDICATOR: A distinct click announces the passing of each 10 inches of film through the gate. This mechanism may be disengaged, if desired, by simply moving a lever. FRAME COUNTER: An accessory frame counter could be attached to the motor crank shaft. Two separate counters registered increments of single frames and 50 frames as the film progressed. SINGLE FRAME: Time lapse and animation is possible by using the side release button or an accessory cable release and adapter; I-T lever allows for timed or instantaneous single exposures. MANUAL REWIND: Clutch disengages spring motor and permits forward movement and backwind without running down the spring; allows for dissolves and superimposition. TRIPOD SOCKET: 3/8" thread Notes and Comments By 1930, Jacques Bogopolsky had sold the Bolex patents to Paillard of Yverdon Switzerland; a manufacturer of Hermes typewriters and other products, as well as distributor of Thorens gramophones and phonographs. Paillard-Bolex was formed as the cine division of Paillard. The Bolex H-16 was introduced in 1935. The design appears to have been loosely based on the Bolex Auto Cine B. However, apart from the shape and a few similar functions, it was a radically different camera. Among the most notable improvements was the addition of a three lens turret and variable s peed dial. Over the next decade, the H-16 saw several alterations.

Condition

Used (normal wear)

Model

H16

Type

Vintage

Brand

Bolex
