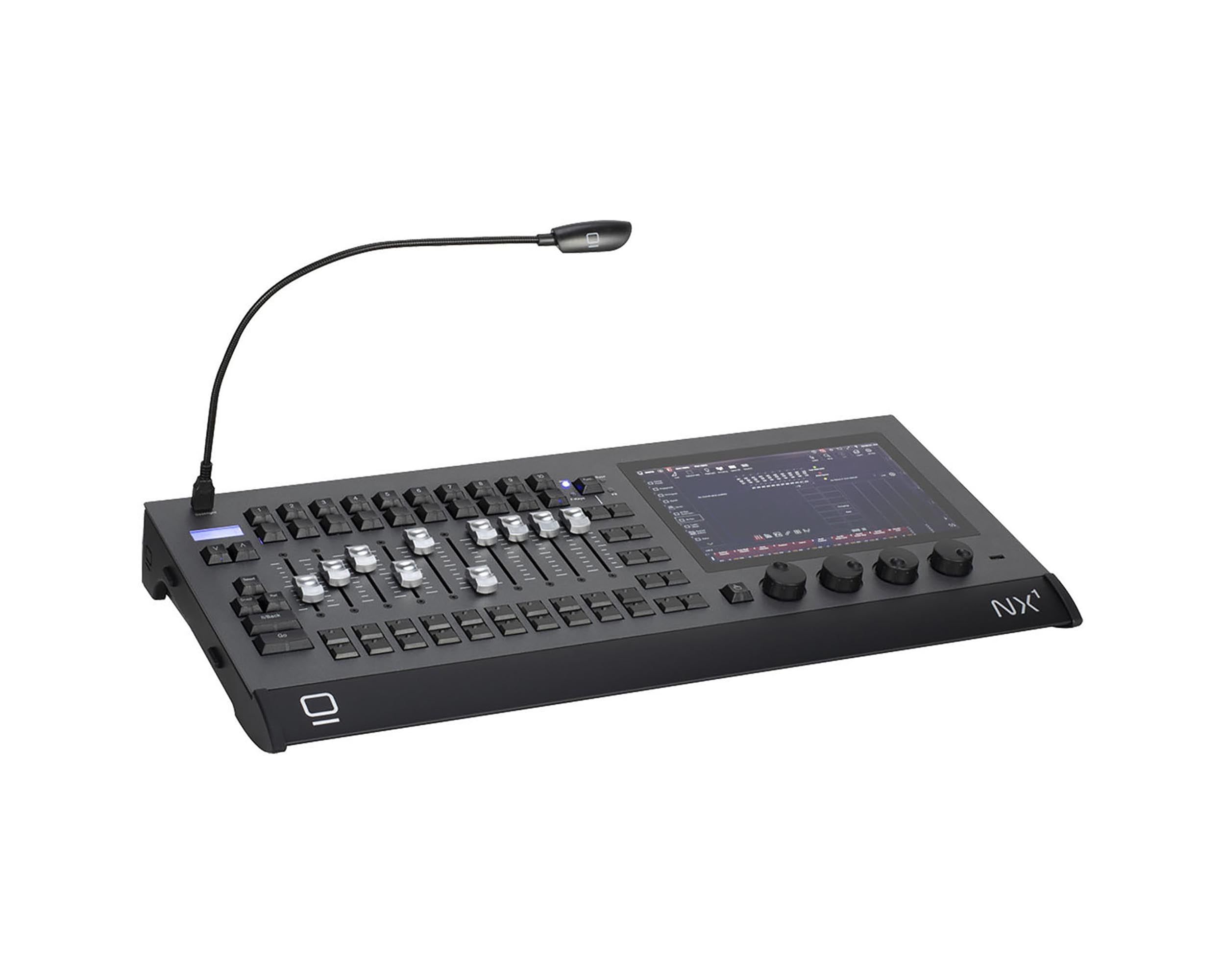

Elation NX1, Professional Universe Motorized ONYX Lighting DMX Controller - Black

The Elation NX1, Professional Universe Motorized ONYX Lighting DMX Controller - Black is the essential lighting controller in the innovative and powerful ONYX platform. Fully featured and unrestricted if offers the complete ONYX experience without compromises in an ultra-compact package.

Utilizing the full ONYX Operating System, the NX1 includes a high-brightness 10.1" HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus and extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.

Including the latest in industrial components the NX1 contains a powerful new Intel processor, high speed NVMe SSD drive and 8GB of DDR4 RAM, allowing fast boot times, instant operation and the ability to process 8 Universes right inside the console. With four DMX ports, a Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 1 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at any time.

The NX1 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

Product Specifications

Surface:

10x 60 mm motorized playback faders, each with 4x function-assignable buttons

10x customizable playback or multi-function keys

Playback Select button

Master Go section with Go, Pause, Snap and Release

4x digital rotary encoders with push function and status LED for fixture parameter control

Virtual Keypad control

Hardware:

Industrial 10.1" TFT 16:9 touchscreen (1920x1200px)

250 GB NVMe M.2 storage drive

Industrial motherboard with Intel CPU

Quiet thermal design using advanced copper heat pipe coolers

8 GB DDR4 RAM

Integrated graphics processor

Windows 10 IoT Embedded Operating System

OS installation by USB 3.0 storage device

Supports Windows USB touchscreens

Connections:

4x DMX / RDM Universe In/Out: 5pin locking XLR

External Display: 1x HDMI

Network: 1x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net

Storage and Peripherals: 4x USB 3.0, 1x USB 2.0

Audio Out, Mic In: 2x 3.5mm Jack

Desk Lamp: USB 5V

IP65 Locking Power In

Physical:

Length: 298.5 mm (11.75 in.)

Width: 636 mm (25 in.)

Height: 71 mm (2.8 in.)

Weight: 8.1kg (17.8 lbs.)

Electrical:

100-240V 50/60 Hz, 104W

Included Items:

LED USB desk lamp

Dust Cover

USB 3.0 recovery drive

IP65 Locking power cable
