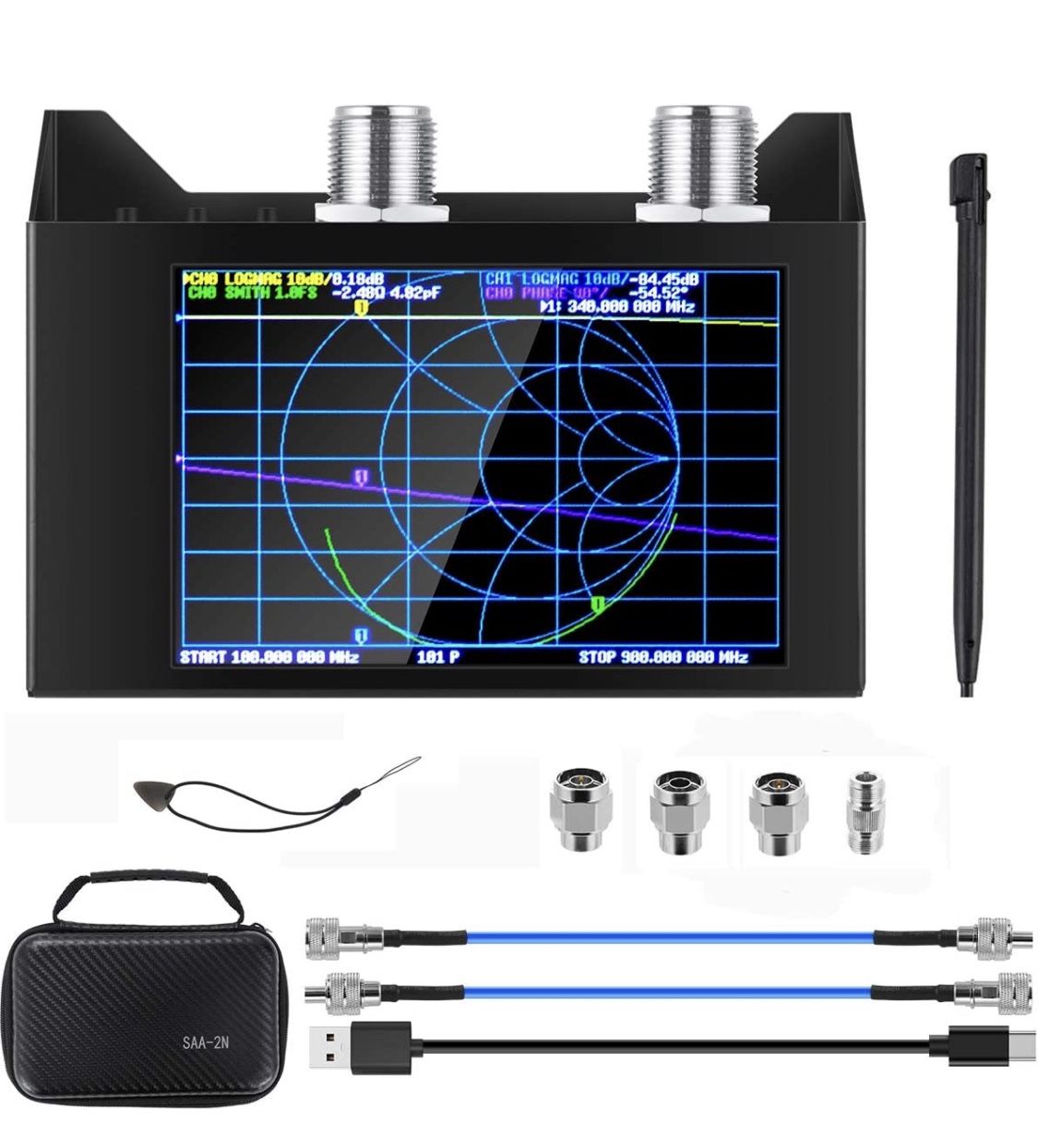

AURSINC NanoVNA SAA-2N V2.2 Vector Network Analyzer 50KHz-3GHz HF VHF UHF Antenna Analyzer Measuring S Parameters, Duplexer, Voltage Standing Wave Rat

Features & details ✔️Upgraded Version: Not only testing standing wave impedance of the antenna, can also debug the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shorten the coefficient, the phase, the amplification of the antenna amplifier ✔️ 3GHz vector network analyzer, designed in collaboration with OwOComm. Under the LGPL license agreement, it is completely manufactured according to the v2_2 files issued by OwOComm at Development Department, in line with the original technical specifications，please refer to below path to get the firmware updated: drive. google .com/drive/folders/1Lr7AOTg2pAhYBZDfaiPVZTMZkFO14PMj ✔️The SAA-2N/NanoVNA_V2.2 uses a similar user interface to the NanoVNA, but with a different technical architecture, the SAA-2N/NanoVNA_V2.2 does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, and must recalibrate or call back the calibration data after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device ✔️Transmission Mearsure S21: 70dB(50KHz-1.5GHz), 60dB(1.5GHz-3GHz). Reflection Measure S11: -50dB(50KHz-1.5GHz), -40dB(1.5GHz-3GHz); Antenna Analyzer: 1.005(50KHz - 1.5GHz), 1.02(1.5GHz-3GHz); Flip Display, you can flip the display for your convenience usage ✔️ NOTE: The new batch of SAA2N analyzers have been upgraded to the laser labeling on the control dashboard, so you might find it difficult to read at the first sight, the former labeling is easy to fade after long-time usage, and we are still working on it. PC Connection: the device can be controlled by PC via VNA-QT software,supported for Linux, Windows (7+), Mac OS planned. It also support Nanovna-Saver for extracting the data for display on a computer, and for saving to Touchstore files Specification Frequency range: 50kHz - 3GHz System dynamic range (calibrated)70dB (up to 1.5GHz), 60dB (up to 3GHz) S11 noise floor (calibrated) -50dB (up to 1.5GHz), -40dB (up to 3GHz) Sweep rate: 100 points/s Display 4'' touchscreen, 320 x 480 pixel USB interface: Micro USB Power: USB, Maximum charge current 1A Battery: 3000mAh lithium-ion Battery connector: JST-XH 2.54mm Maximum sweep points (on device): 201 Maximum sweep points (USB): 1024 Port 2 return loss (1.5GHz): 20dB typ Port 2 return loss (3GHz): 13dB min VNA-QT software supported platforms: Linux, Windows (7+), Mac OS planned

Condition

New
