Take action

$41,500

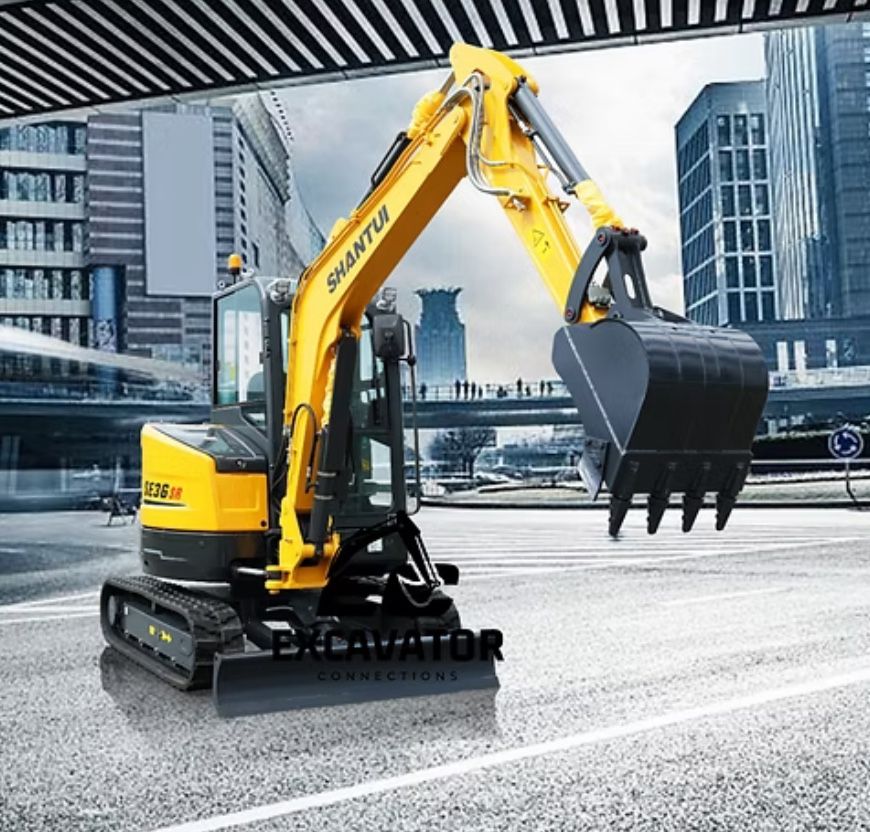

Mini excavator SHANTUI SE36SR

Last updated 4 months ago in Wills Point, TX

Listed in categories:

Sold by

Kevin Mendoza

Kevin Mendoza

Joined Feb 2022

|

(5) offer up reviews

Get a second opinion

Chat securely on the app

Mini excavator SHANTUI SE36SR

Additional images

Description

Mini Excavator with A/C & Radio ENGINE: Model: YANMAR 3TNV88F Type: Three-cylinder direct injection No. of cylinders: 3 Emission: EPA Tier 4 Final/Europe Stage V Power output: 24.4 horsepower RPM: 2200 rpm HYDRAULIC SYSTEM: Type: Variable plunger pump Max. hydraulic flow: 25.6 gallons per minute (GPM) Max. oil flow (AUX1): 13.7 GPM DIGGING FORCE (ISO 6015): Bucket digging force: 6830 lbf Arm digging force: 4090 lbf BUCKET: Type: Backhoe bucket Bucket capacity: 4.2 cubic feet Bucket width: 25.6 inches DRIVE SYSTEM: Carrier roller quantity: 1×2 Track roller quantity: 2×4 Track shoes: 2×44 Travel speed: 1.5/2.7 mph Ground clearance: 51.0 inches Grade ability: ≤30° SWING SYSTEM: Swing speed: 0-9 rpm REFILLING CAPACITIES & LUBRICATIONS: Fuel tank: 13.2 gallons Cooling system: 1.85 gallons Engine oil: 1.77 gallons Hydraulic oil tank: 10.6 gallons System capacity: 10.6 gallons OPERATING WEIGHT AND GROUND PRESSURE: Shoe width: 11.8 inches Ground pressure: 4.6 psi Operating weight: 8335/8550 lbs DIMENSIONS (Boom: 2540 mm, Arm: 1400 mm): A: Overall length: 192.1 inches (16 feet) B: Ground contact length (Transportation): 132.3 inches (11 feet) C: Overall height (to top of boom): 74.2 inches (6.2 feet) D: Overall width: 68.5 inches (5.7 feet) E: Overall height (to top of cab): 100.4 inches (8.4 feet) F: Counterweight ground clearance: 23.4 inches G: Ground clearance: 11.6 inches H: Tail swing radius: 33.9 inches I: Crawler wheel base: 64.9 inches (5.4 feet) J: Track length: 84.9 inches (7.1 feet) K: Track gauge: 56.7 inches L: Track width: 68.5 inches M: Shoe width: 11.8 inches O: Bonnet height: 61.0 inches P: Revolving frame width: 63.5 inches WORKING RANGE: A Max. digging height: 193.3 inches (16.1 feet) B Max. dumping height: 139.6 inches (11.6 feet) C Max. digging depth: 118.1 inches (9.8 feet) D Max. vertical digging depth: 105.9 inches (8.8 feet) E Max. digging distance: 97.4 inches (8.1 feet) F Max. digging radius at ground level: 216.5 inches (18.1 feet) G Tail swing radius: 33.9 inches H Maximum Dozer Lift Height: 15.7 inches I Maximum Dozer Dig Depth: 14.6 inches For more information please contact: (contact info removed) Jose G. Mendoza

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

New

Power Source

Gas

Type

Mini Excavator

Brand

SHANTUI ( B&M Industrial)
