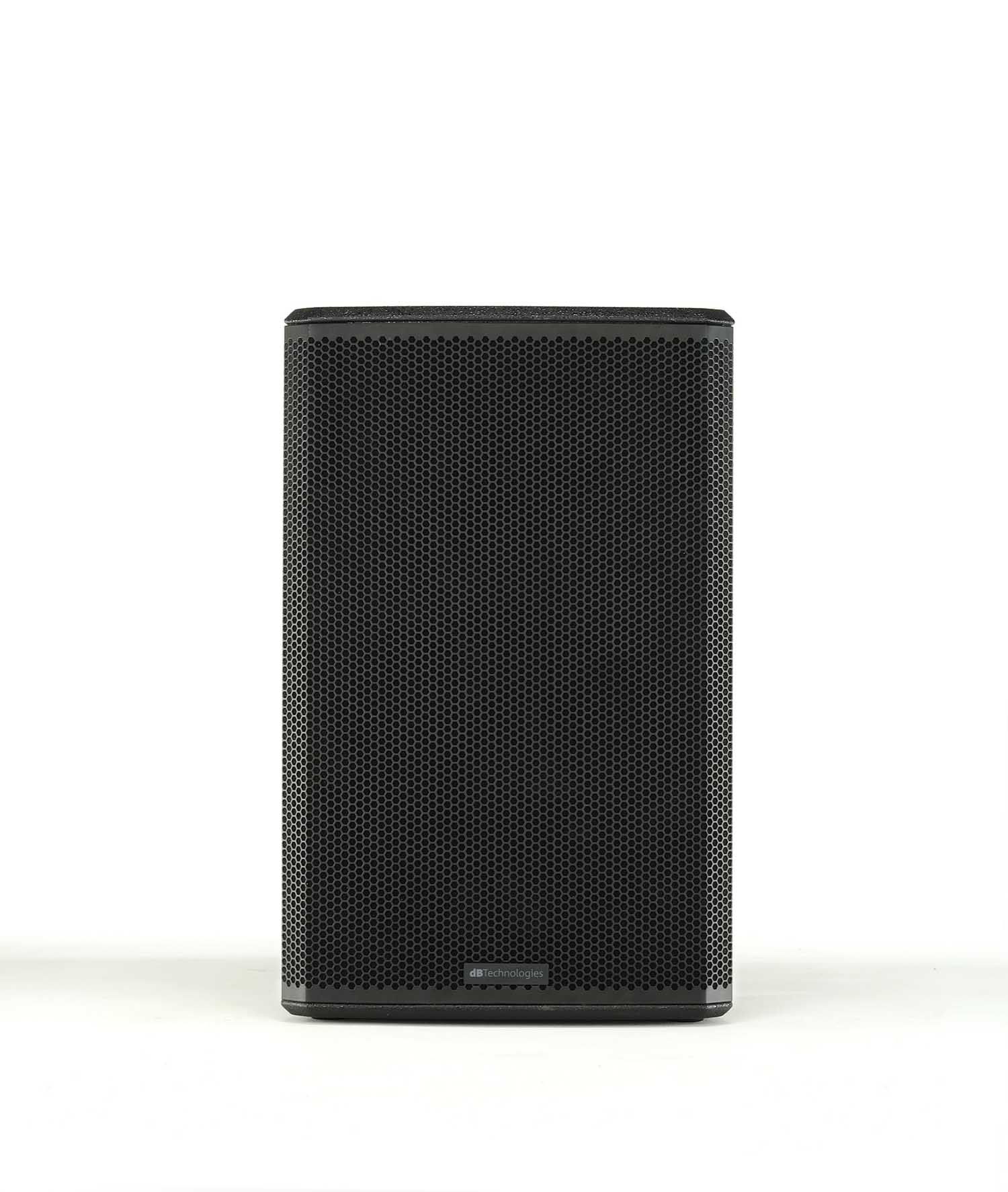

dB Technologies LVX P12, 12" 2-Way Passive Speaker 800W - Black

The dB Technologies LVX P12 cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance. Full range LVX P12 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install. The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP12H or vertical brackets (VB-LP1215V). The cabinet features 1 integrated handle per side and a 36 mm pole mount plate. All enclosures and accessories of LVX P series are available in black or white version.

Product Specification:

Technical Data

Speaker Type2-Way Passive Speaker

Acoustical data

Peak Power 800 W

Impedance 8 Ohms

Frequency Response [- 10 dB] 65- 21.000 Hz

Max SPL 127 dB

HF 1 “, 1.35" v.c.

Directivity 90x60°

Horn Rotatable

LF 12“, 2" v.c.

Input

Signal Input 1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

Housing Plywood

Pole Mount 36 mm

Angle Up Monitor use 40°

Rigging Points 12 x M8

Handles 2 (1X side)
