$10

Used 10R80 (HL3Z) Sun Gear No. 4 and Shell

Posted about 18 hours ago in Carrollton, TX

Listed in categories:

Sold by

Joseph Richardson

Joseph Richardson

Joined Sep 2026

Chat securely on the app

Image #1

Additional images

Description

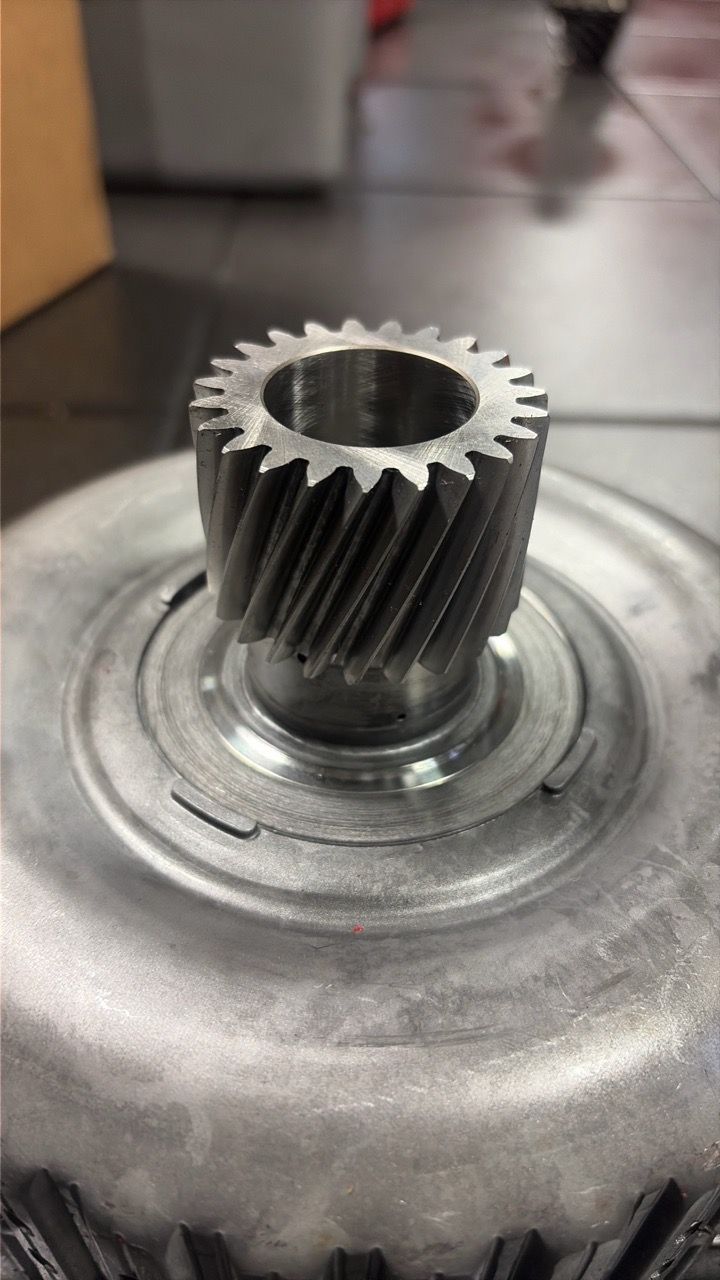

Previously used 10R80 Sun Gear #4 and Shell assembly. HL3Z-7D062-A Slightly worn but, part can be cleaned and refurbished. Slight brinelling of internal splines at E clutch friction plate alignment tabs not deep enough to affect movement can be sanded. Axial bushing no wear which catches on fingernail. Axial sun gear 4 internal honed/crosshatch un-disturbed. T6 and T7 Thrust surfaces both show minor wear but, functionally ok. Forward ridge slight external wearing normal, rear axial face at sun gear no. 4 free of wear. Component is Sun Shell with sun gear no. 4 welded to e clutch shell to make assembly. Balance markings present and 4 total balance holes in shell. Component as is could be cleaned and installed without immediate issue but internal spline brinelling should be corrected to last longer.

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

Used (normal wear)

Placement On Vehicle

Internal Transmission (HL3Z)10R80 Automatic Transmission 2017-2026+

Brand

Ford/FoMoCo

Fitment Type

Geartrain Retention- when assembled as input shaft assembly: R4 splined into P3. Snap ring retained to input shaft, R4, and E Clutch Hub separately.
