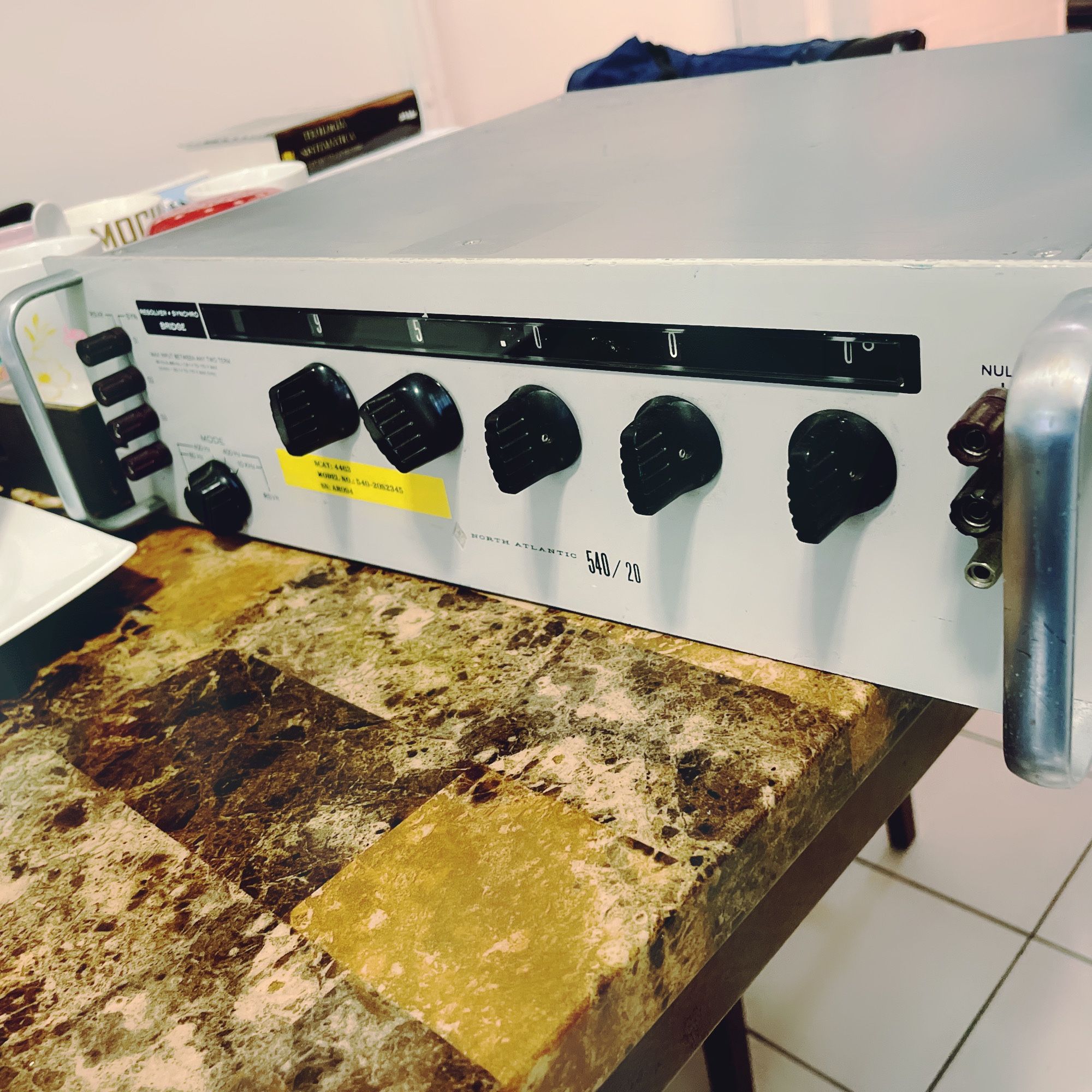

North Atlantic 540/20 Resolver High Accuracy/ Bridge

The Model 540 Synchro/Resolver Bridge provides the user with the ability to measure the electrical shaft position of either synchros or resolvers as components or as transducers within an operating system. Its unique bridge circuit design provides a constant null voltage gradient over the entire angular range. When the model 540 input is connected to the standard line to line levels of 11.8, 26, 90, 115 Vrms, it provides a null output in either the synchro or the resolver mode. This instrument is designed to provide 2 arc-seconds of accuracy at the operating frequency of 400 Hz and may be used with reduced accuracy up to 5 kHz. Accuracy is maintained for all angles over the range of 0 to (contact info removed) degrees with a resolution of 0.0001o. Accuracy Resolution F Rating Modes Transformation Ratio Null Voltage Gradient Input Z @ 400 Hz Size Weight SPECIFICATIONS: MODEL 540 2 seconds @ 400 Hz 4 seconds @ 1 kHz 15 seconds @ 2 kHz 60 seconds @ 5 kHz 0.0001° 0.8F or 150 Vrms max. Synchro or Resolver 1:1 4.85 x EL-L μV/arc sec. 750 kW in Resolver 500 kW in Synchro 3.5 x 19 x 15.5 in (88 x 475 x 388 mm) 30 lbs. (14 kgs.) North Atlantic Industries, Inc., North Atlantic Instruments (contact info removed) / (contact info removed) (fax) 170 Wilbur Place, Bohemia, NY 11716, USA https://offerup.com/redirect/?o=d3d3Lm5haWkuY29t / e-mail: (contact info removed) 540 & 540/20 Code: OVGU1 Mode Switch at 60 Hz Position Accuracy Input Z F Rating Mode Transformation Ratio Null Voltage Gradient Mode Switch at 400 Hz Position Accuracy Input Z F Rating Mode Transformation Ratio Null Voltage Gradient Mode Switch at 10 kHz Position Accuracy Input Z F Rating Mode Resolution Null Voltage Gradient Size Weight 10 arc seconds (55 Hz - 200 Hz) 20 arc seconds (40 Hz - 400 Hz) 1MW 1.8F or 170 Vrms max. Synchro 10:1 Stepdown 0.485 x EL-L μV/arc sec. 10 arc seconds (200 Hz - 600 Hz) 20 arc seconds (100 Hz - 1 kHz) 1MW 1.8F or 170 Vrms max. Synchro or Resolver (switch selectable) 10:1 Stepdown 0.485 x EL-L μV/arc sec. 10 arc seconds (9 kHz - 11 kHz) 20 arc seconds (11 kHz - 12 kHz) 50 kW 0.02F or 170 Vrms max. Resolver 0.001° 0.485 x EL-L μV/arc sec. ±1% 5.25" x 19" x 15" (132mm x 475mm x 375 mm)
