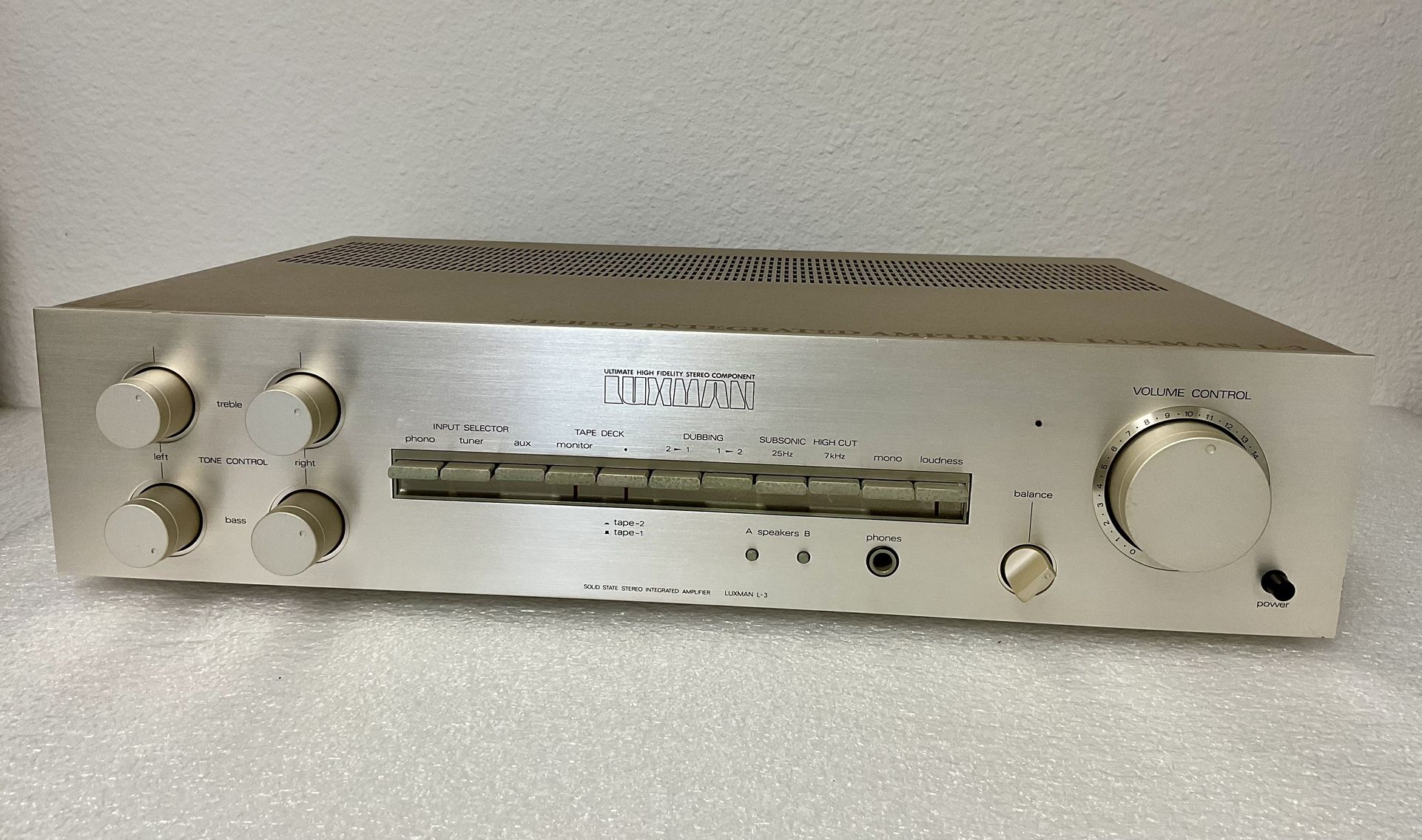

Luxman L-3 Integrated Amplifier

The Luxman L-3 is an integrated amplifier with a power output of 35-42 watts per channel into 8 ohms and a frequency response of 15Hz to 60kHz. Key specifications include a total harmonic distortion of 0.05%, an input sensitivity of 2.5mV (MM) and 145mV (line), and a signal-to-noise ratio of 84dB (MM) and 90dB (line). It features Class A operation, dual tape monitoring, and separate bass and treble controls. Power and performance Power output: 35-42 watts per channel into 8Ω (RMS)Frequency response: 15Hz - 60kHzTotal harmonic distortion (THD): 0.05% or lessInput sensitivity: 2.5mV (MM), 145mV (line)Signal-to-noise ratio: 84dB (MM), 90dB (line)Channel separation: 60dB (MM), 70dB (line)Damping factor: 65 (at 8-ohm, 1kHz) Features Operation: Class AInputs: Phono (MM), Tuner, AuxControls: Separate low and high tone controls, loudness control, mode selector, speaker selectorTape functionality: Dual tape monitoring and dubbingFilters: Subsonic (25Hz) and high-cut (7kHz) filtersOther: AC outlets (switched and unswitched) Physical specifications Dimensions: \(438\text{\ mm\ (W)}\times 105\text{\ mm\ (H)}\times 313\text{\ mm\ (D)}\) (Other sources list slightly different depth measurements)

Condition

Used (normal wear)
