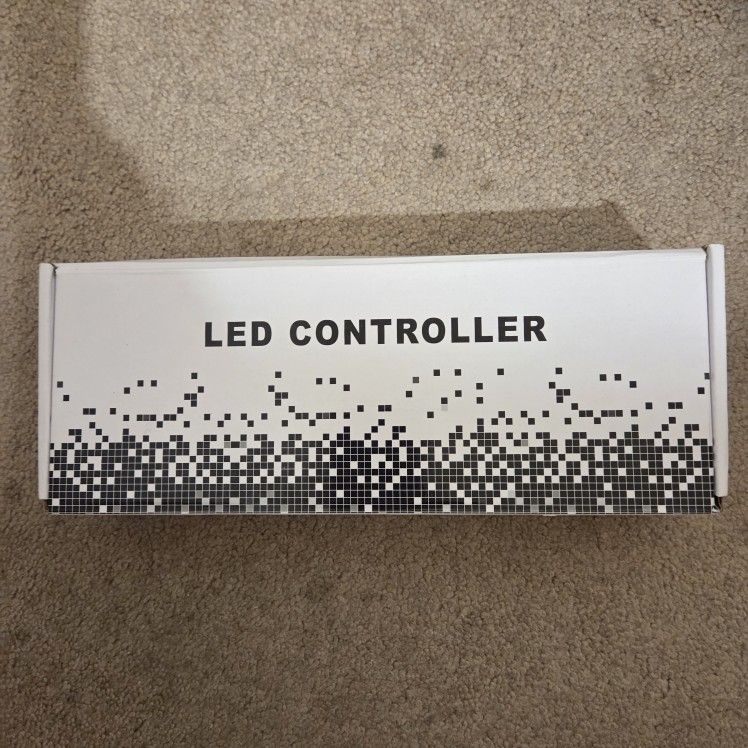

New 30 Channel RGB Dmx512 Decoder Led Strip Dmx Controller

30CH-DMX512 Constant decoder Operation Instruction Introduction: Welcome to use the 30CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog 30 output channels; each channe can achieve 256 control levels. This constant control signals. There are decoder is used when DMX512 control equipment control general LED lighting Products Performance: Maximum load curent:2ACHx 30 innnt PowerDC9V~ DC24V Maximum power load 720W (12V) 1440W (24V) Output gray level: 256 Input Signal:DMX512/199C Output signal:30 channels Constant PWM Output DMX -80 channels standard XLR-3 caron plug.RJ45 Size-L225xW80xH32MM Weight (Gross Weight) :300g Gross Weight:338g Basic functions There are 30 output channels, can connect with single or RGB lamps; 0_100% dimming output each channel 256 gray levels International standard DMX512 input protocol, address code set by DIP switches; Wide voltage DC input DC9V ~ DC24V. Each occupied by 30 DMX address The decoder comes with 16 kinds of test patterns, 16 levels for rate of change Decoder to use: Note: FUN = OFF (the tenth code switch up) means to accept DMX512 signal mode The first DMX address setting: The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one 'is the lowest position, the ninth ne is the highest Bit of address code can be set to 512 DMX512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0. 1

Condition

New
