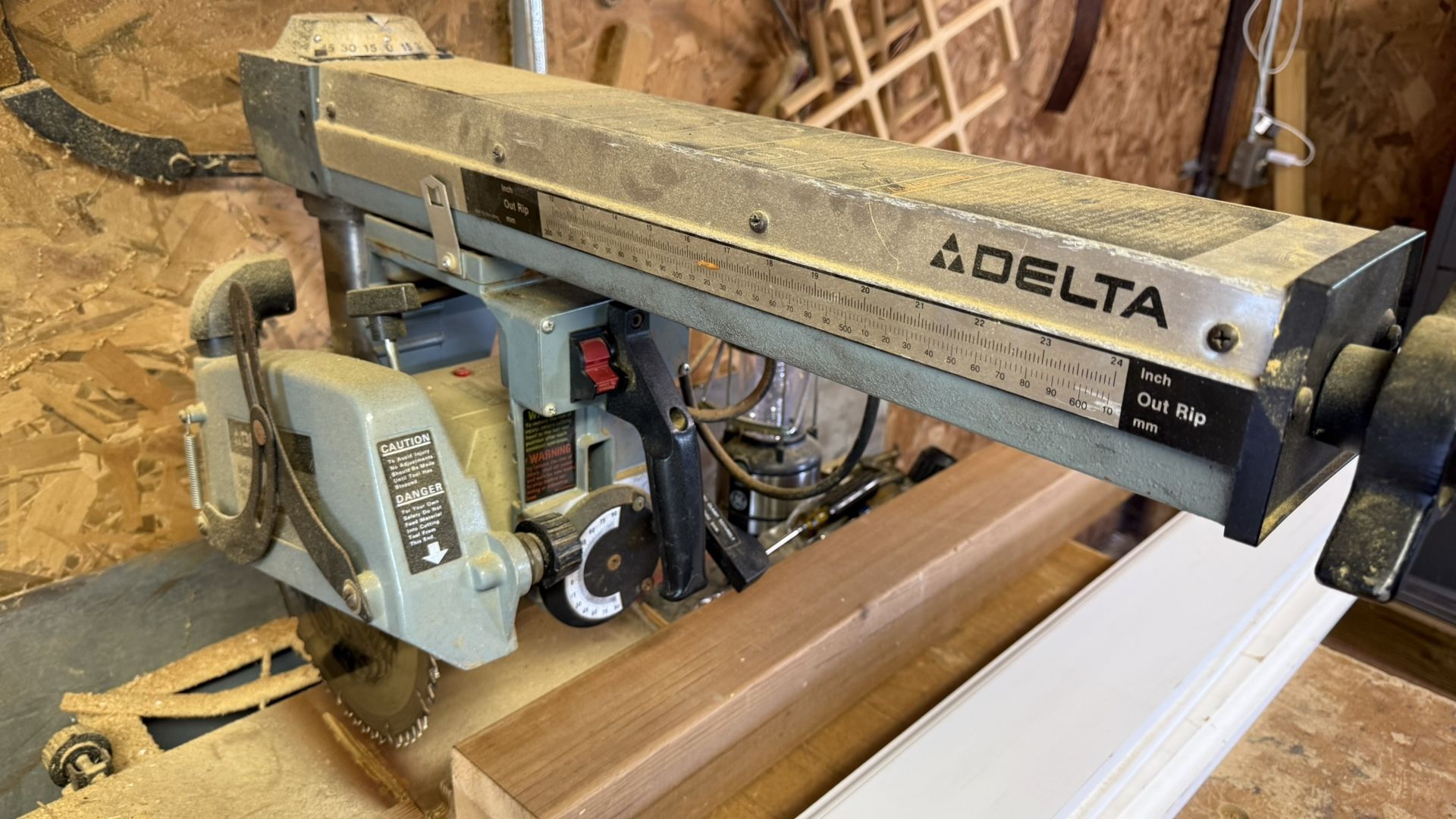

Delta Radial Arm Saw Model 10

Power. Precision. Versatility. That’s the promise behind Delta’s Model 10 Deluxe Radial Arm Saw—the shop‑proven workhorse built to turn rough stock into fine craftsmanship. • True 10‑inch Capacity. Handles a full 10” blade for crosscuts up to 14”, ripping up to 24”, and compound miters to 45° left or right—all without shifting your work. • Industrial‑grade motor. Totally‑enclosed fan‑cooled 1½ H.P. (continuous duty) induction motor delivers smooth, vibration‑free power at 3,450 RPM. Optional 2 H.P. motor for production shops. • Positive‑action automatic brake. Blade stops in under 5 seconds the moment you release the trigger—adds safety and shaves seconds off every cycle. • Dial‑in accuracy. Micro‑set bevel and miter indexes are machined into the turret; heavy cast‑iron yoke locks rock‑solid at every common angle (0°, 15°, 22½°, 30°, 45°). • Delta “T‑Square” arm. Box‑section steel arm is factory‑calibrated to stay true; rack‑and‑pinion depth control returns to exact setting every time. • Built to stay put. 200‑lb welded steel column and laminated maple table absorb vibration, leaving your cut line glass‑smooth. • All‑in‑one versatility. With optional shaper spindle, drum‑sander, and molding head accessories, the Model 10 transforms from saw to joinery station in minutes, saving precious floor space. • Plug‑and‑saw convenience. Pre‑wired 115/230 V dual‑voltage switch box, sealed ball bearings throughout, and lifetime‑lubricated column mean near‑zero maintenance. SPECIFICATIONS (factory brochure) • Blade diameter: 10″ (arbor ⁵⁄₈″) • Cross‑cut capacity @ 90°: 14″ × 3″ • Rip capacity, inboard/outboard: 24″ / 16″ • Maximum dado width: 13⁄16″ • Bevel range: 0–90° in vertical plane • Miter range: 45° L & R • Table size: 22″ × 34″ laminated hardwood • Weight (net): 265 lb
