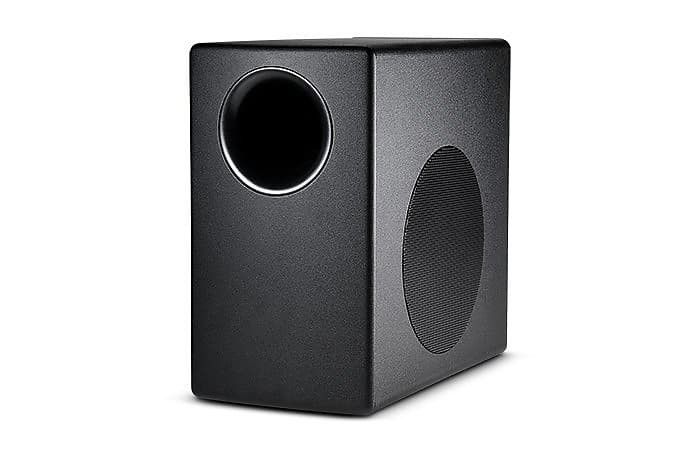

JBL CONTROL 50S/T Surface-Mount Subwoofer For Subwoofer-Satellite Loudspeaker System, single unit

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance. The Control 50S/T’s included two-piece easy-mount wall-bracket installs quickly: The multi-point wall portion of the bracket attached to the wall and the self-guiding speaker-mounted bracket drops into place for a secure attachment. A cover over the Control 50S/T terminal cup keeps wiring neat. The Control 50S/T is mono. The crossover network built into the subwoofer provides proper signal routing and four satellite output connectors allow connection of the wires for the four Control 52 satellite loudspeakers. A Loop Out connector is also provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems. JBL's Control 50S/T 150 Watt (600 Watt peak) subwoofer contains a high-power, long-excursion, 200 mm (8") driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5") 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance. Features Stylish, unobtrusive design fits into a wide variety of decors High fidelity sound Selectable 70V/100V for distributed lines, or low impedance Versatility for either two or four satellite speakers per system Ability to mix and match with Control Contractor 40 Series in ceiling models Wall-mount brackets included Specifications Frequency Range (-10 dB): 32 Hz – 200 Hz Frequency Response (±3 dB): 50 Hz – 150 Hz Power Capacity: 300 Watts Continuous Program Power (2 hrs) 150 Watts Continuous Pink Noise (2 hrs) 200 Watts Continuous Program Power (100 hrs) 100 Watts Continuous Pink Noise (100 hrs) Nominal Sensitivity (2.83V, 1m): 95 dB (near corner), 89 dB (center of wall) Rated Maximum SPL (1m): Nominal Impedance: 8 ohms (in bypass/thru mode) Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), 8ohm bypass/thru Transducer Driver: 200 mm (8") with polypropylene cone, butyl rubber surround, 38 mm (1.5") 4-layer copper-clad coil, vented aluminum former Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2) Material: Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal. Cabinet Dimensions: 14" H x 15.4"W x 8" D (356 x 391 x 203 mm) Wall Bracket Dimensions: 0.6" D (15 mm) Wall Bracket: 0.9" (2.3 mm) thick zinc-plated and painted cold-rolled steel Net Weight: 20 lbs. (9 kg) Shipping Weight: 23 lbs. (10.2 kg) Included Accessories: Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment
