$598

$700

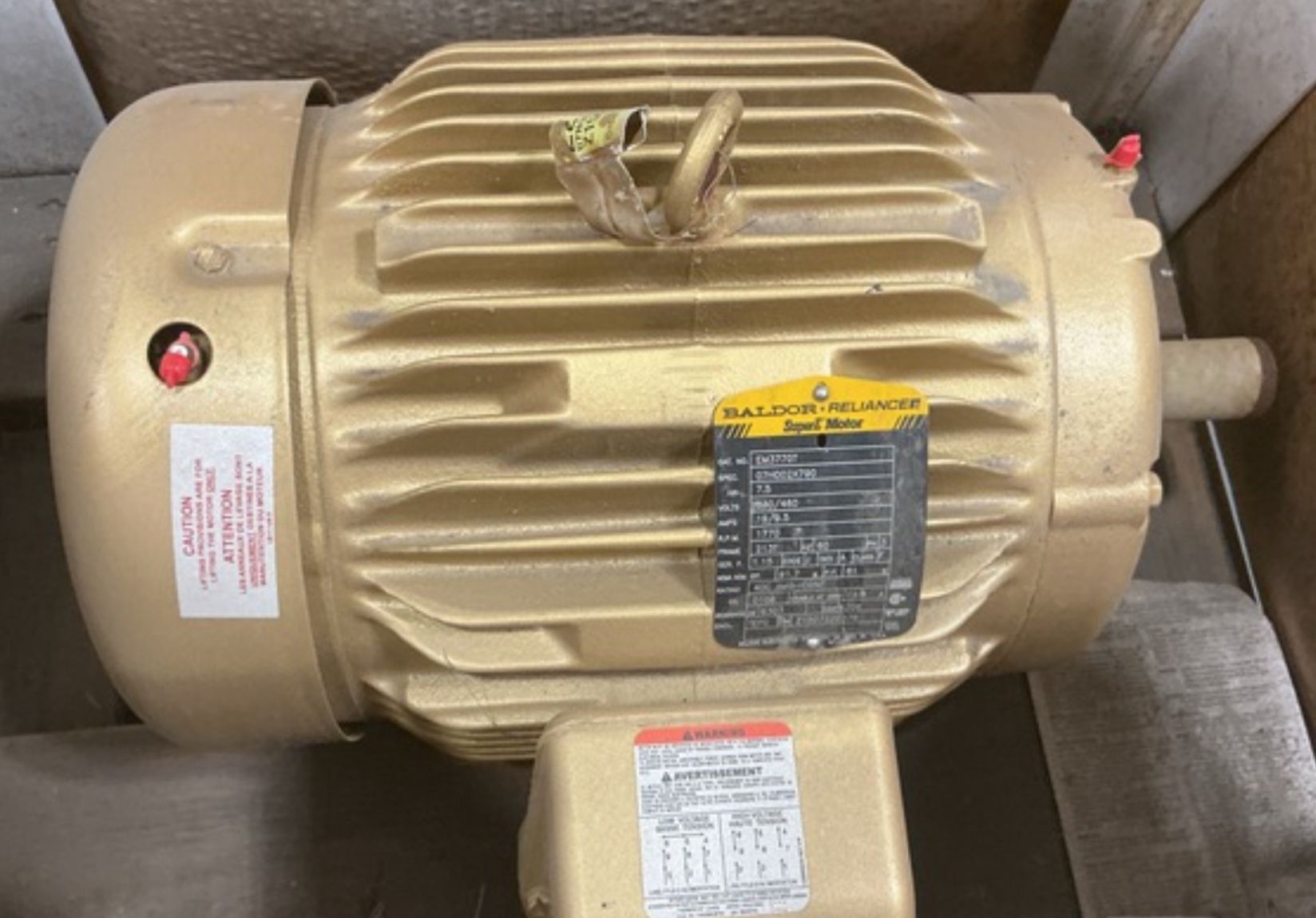

Baldor Electric Motor EM3770T 3Ph 7.5HP 1770RPM TEFC 230/460V 230V 213T

Last updated 8 days ago in Long Beach, CA

Listed in categories:

Sold by

Randy

Randy

Joined Dec 2018

|

(69) offer up reviews

Get a second opinion

Chat securely on the app

Baldor Electric Motor EM3770T 3Ph 7.5HP 1770RPM TEFC 230/460V 230V 213T

Additional images

Description

NEW Baldor Electric Motor EM3770T 3Ph 7.5HP 1770RPM TEFC 230/460V 230V 213T ABB Baldor Electric Motor $1750 Retail SHIPPING IS VIA FREIGHT AND ONLY A CLOSE ZIP ESTIMATE THAT IS A BUSINESS ADDRESS W/ FORKLIFT. CONTACT US WITH YOUR ZIP AND IF BUSINESS ADDRESS OR NOT TO GIVE MORE ACCURATE. Brand New In Box Catalog Number EM3770T Enclosure TEFC Frame 213T Frame Material Iron Frequency 60.00 Hz Motor Letter Type Three Phase Output @ Frequency 7.500 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1800 RPM @ 60 HZ Voltage @ Frequency 460.0 V @ 60 HZ 230.0 V @ 60 HZ XP Class and Group None XP Division Not Applicable Agency Approvals NEMA_PREMIUM UR NEMA PREMIUM CSA EEV Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 20.000 A @ 208.0 V 9.500 A @ 460.0 V 19.000 A @ 230.0 V Design Code A Efficiency @ 100% Load 91.7 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK High Voltage Full Load Amps 9.5 a Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater Insulation Class F Inverter Code Inverter Ready KVA Code J Lifting Lugs Standard Lifting Lugs Locked Bearing Indicator No Locked Bearing Motor Lead Exit Ko Box Motor Lead Termination Flying Leads Motor Lead Quantity/Wire Size 9 @ 14 AWG Motor Type 0738M Mounting Arrangement F1 Number of Poles 4 Overall Length 18.45 IN Power Factor 81 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.15 Shaft Diameter 1.375 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1770 rpm Speed Code Single Speed Motor Standards NEMA Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None Heavy 176lbs

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

New

Brand

Baldor
